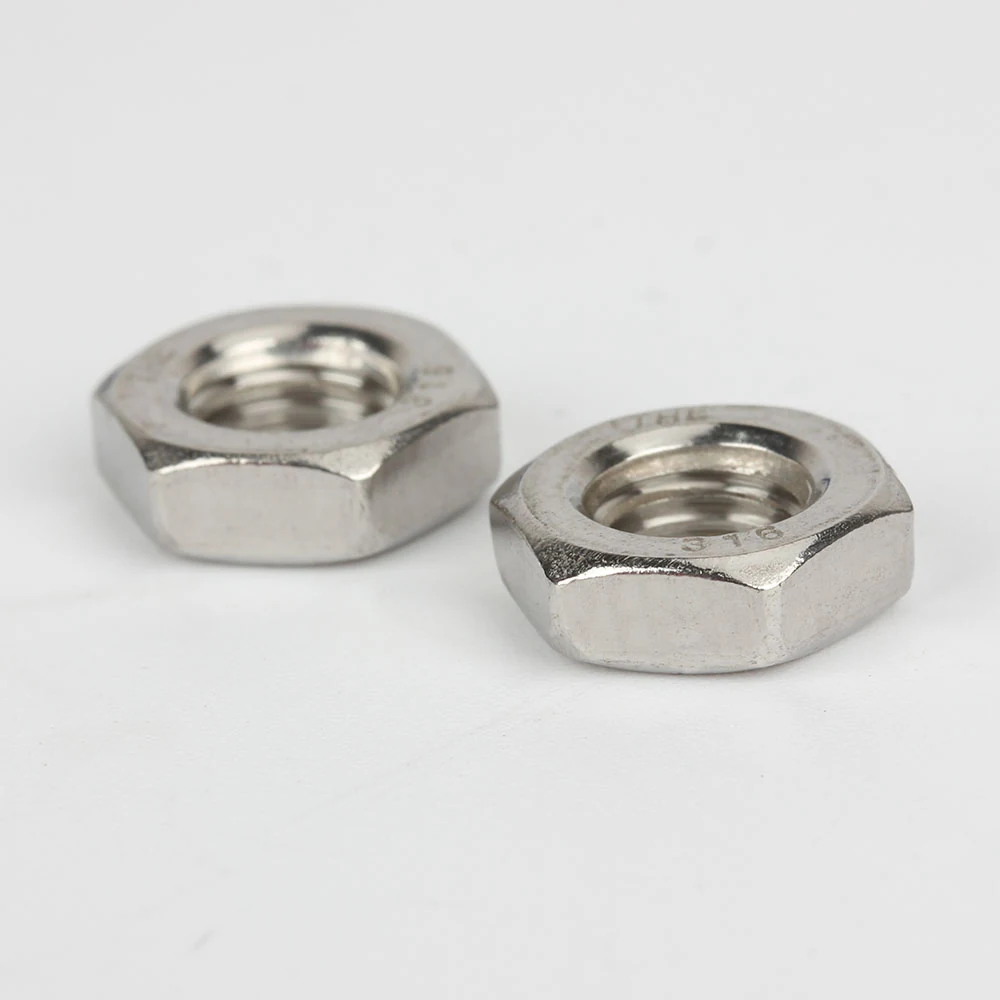

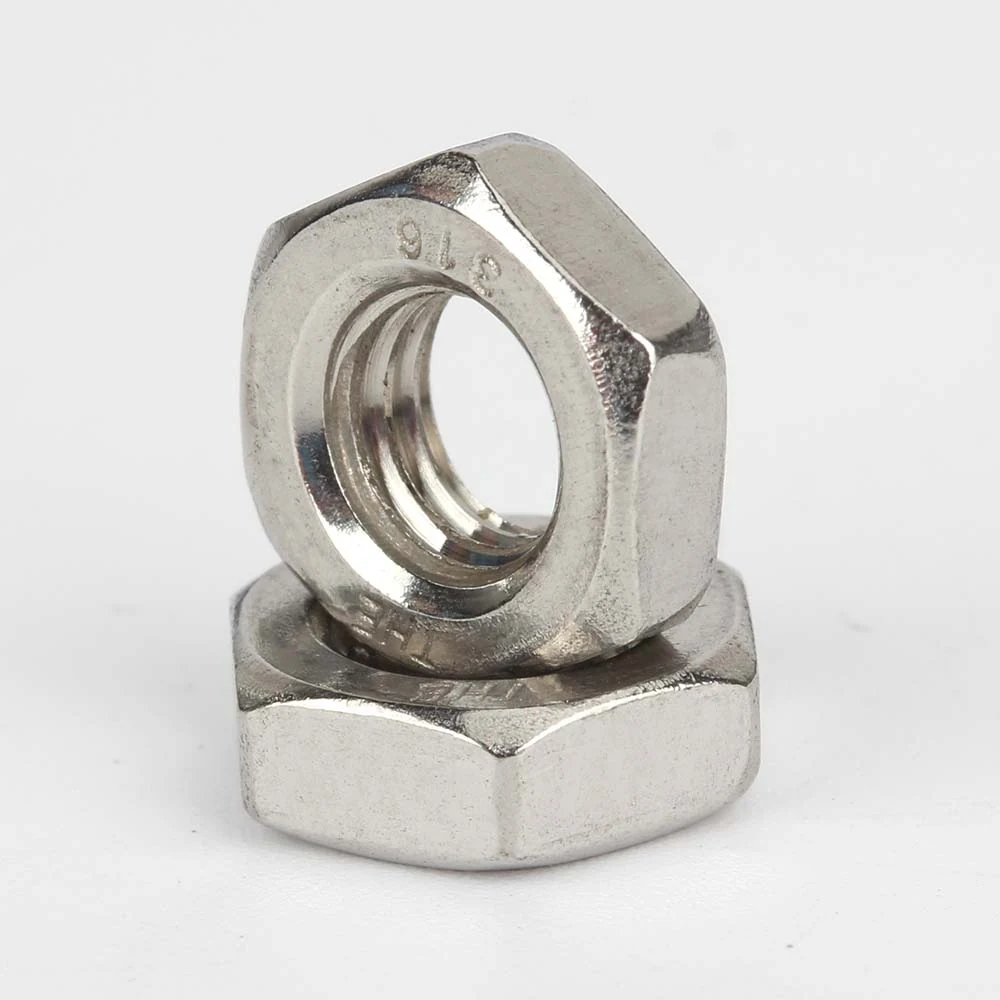

ANSI B18.2.2 Stainless Steel Thin Hex Nuts
Thin hexagon nuts in the supplier ANSI B18.2.2 range, described without a washer face. Coarse and fine inch threads are listed separately; confirm height and width across flats against the drawing.
Product overview
- Individual supplier records: 31.
- Match nut form, thread and dimensions to your assembly drawing.
- Confirm the requested standard edition and inspection documents.
Catalogue specifications
Open a material group. Original size notation and individual item references are retained. Source markings are separate from material labels; no unlisted property class or current inventory is inferred.
304 — 16 catalogue items
| Source size | Thread system | Nut form | Source marking | Thread / treatment | Item reference |
|---|---|---|---|---|---|
| 1/4-20 UNC | Inch | Thin hex nut, no washer face | THE | Coarse thread | 5904 |
| 1/4-28 | Inch | Thin hex nut, no washer face | THE | Fine thread | 5905 |
| 5/16-18UNC | Inch | Thin hex nut, no washer face | THE | Coarse thread | 5310 |
| 5/16-24 | Inch | Thin hex nut, no washer face | THE | Fine thread | 5311 |
| 3/8-16 UNC | Inch | Thin hex nut, no washer face | THE | Coarse thread | 1881 |
| 3/8-24 UNF | Inch | Thin hex nut, no washer face | THE | Fine thread | 1882 |
| 7/16-14 UNC | Inch | Thin hex nut, no washer face | THE | Coarse thread | 2524 |
| 7/16-20 UNF | Inch | Thin hex nut, no washer face | THE | Fine thread | 2525 |
| 1/2-13 UNC | Inch | Thin hex nut, no washer face | THE | Coarse thread | 3396 |
| 1/2-20 UNF | Inch | Thin hex nut, no washer face | THE | Fine thread | 3397 |
| 5/8NC-11 | Inch | Thin hex nut, no washer face | THE | Coarse thread | 4015 |
| 5/8-18 UNF | Inch | Thin hex nut, no washer face | THE | Fine thread | 4016 |
| 3/4-10 | Inch | Thin hex nut, no washer face | THE | Coarse thread | 4757 |
| 3/4-16UNF | Inch | Thin hex nut, no washer face | THE | Fine thread | 4758 |
| 7/8NC-9 | Inch | Thin hex nut, no washer face | THE | Coarse thread | 4490 |
| 1"-8UNC | Inch | Thin hex nut, no washer face | THE | Coarse thread | 120671 |
316 — 15 catalogue items
| Source size | Thread system | Nut form | Source marking | Thread / treatment | Item reference |
|---|---|---|---|---|---|
| 1/4-20 | Inch | Thin hex nut, no washer face | 316 THE | Coarse thread | 5901 |
| 1/4-28 | Inch | Thin hex nut, no washer face | 316 THE | Fine thread | 5902 |
| 5/16-18 | Inch | Thin hex nut, no washer face | 316 THE | Coarse thread | 5308 |
| 5/16-24 | Inch | Thin hex nut, no washer face | 316 THE | Fine thread | 5309 |
| 3/8-16 UNC | Inch | Thin hex nut, no washer face | 316 THE | Coarse thread | 1880 |
| 7/16-14 UNC | Inch | Thin hex nut, no washer face | 316 THE | Coarse thread | 2522 |
| 7/16-20 UNF | Inch | Thin hex nut, no washer face | 316 THE | Fine thread | 2523 |
| 1/2-13 UNC | Inch | Thin hex nut, no washer face | 316 THE | Coarse thread | 3394 |
| 1/2-20 UNF | Inch | Thin hex nut, no washer face | 316 THE | Fine thread | 3395 |
| 5/8NC-11 | Inch | Thin hex nut, no washer face | 316 THE | Coarse thread | 4014 |
| 3/4-10 UNC | Inch | Thin hex nut, no washer face | 316 THE | Coarse thread | 4756 |
| 3/4-16 UNF | Inch | Thin hex nut, no washer face | 316 THE | Fine thread | 166510 |
| 7/8-9 | Inch | Thin hex nut, no washer face | 316 THE | Coarse thread | 4489 |
| 1"-8UNC | Inch | Thin hex nut, no washer face | 316 THE | Coarse thread | 120780 |
| 1-1/2-6UNC | Inch | Thin hex nut, no washer face | 316 THE | Coarse thread | 202741 |
Request a quotation
Send the item reference, confirmed material, quantity, drawing and destination. Items available in Tongming stock can usually be dispatched in around 3 days; stock and dispatch timing are confirmed with the quotation.
