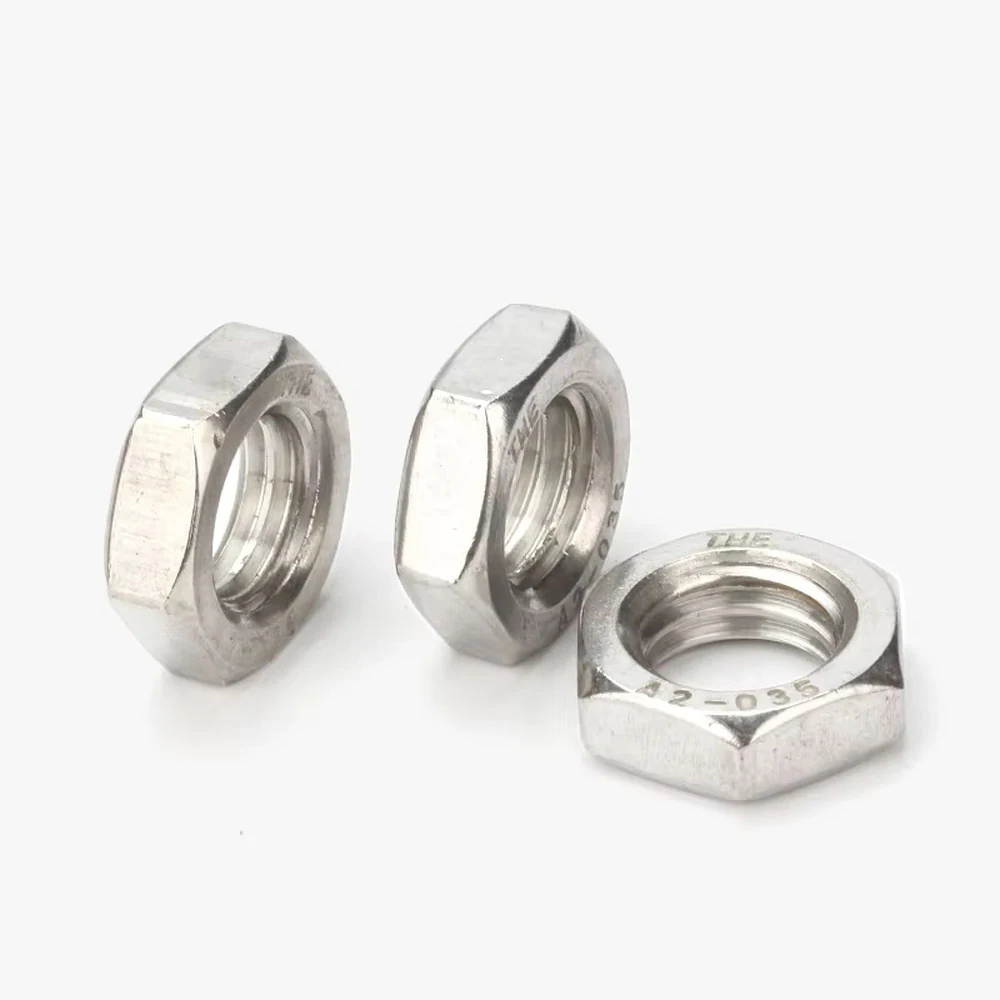

DIN 439 Stainless Steel Thin Hexagon Nuts
A low-profile hexagon nut for enquiries where nut height and the exact mating thread matter. Check the required height and seating arrangement against your drawing; the thin form is not treated as interchangeable with a full-height nut.
Product overview
- Form: Thin hexagon nut, supplier form B.
- Source reference: DIN439 supplier catalogue series.
- Listed material: 304 / 316 / 316L(Ni10) stainless steel.
- Thread sizes: M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24.
Confirm the required standard edition and exact dimensions with your enquiry. Catalogue references do not by themselves certify product conformity. Source markings are retained below and are not converted into an unverified property class.
Catalogue specifications
Open a material group to compare thread size, pitch and supplier item reference. Separate item references are retained where a size occurs with different markings.
304 Stainless Steel — 17 catalogue items
| Thread | Pitch (mm) | Source marking | Thread / finish | Item reference |
|---|---|---|---|---|
| M4 | 0.7 | Unmarked | Coarse thread | 368647 |
| M5 | 0.8 | Unmarked | Coarse thread | 368648 |

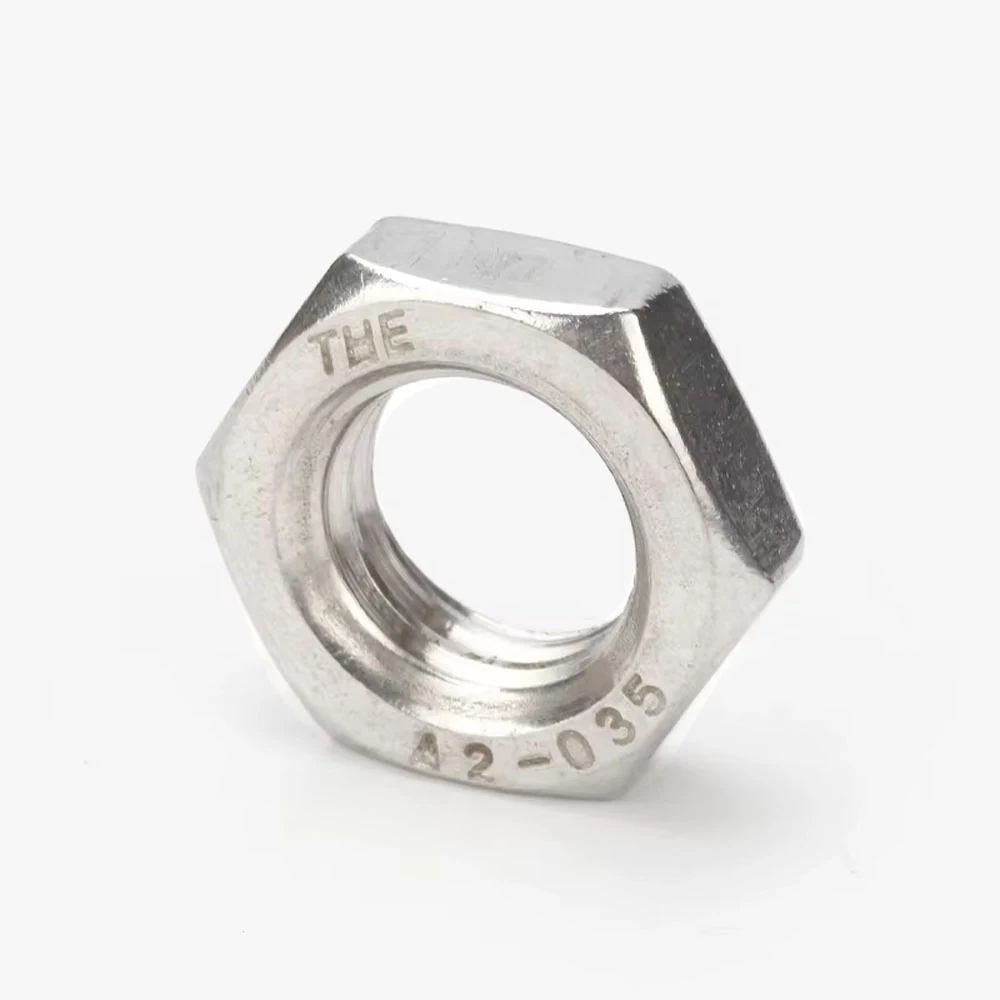

| M6 | 1.0 | A2-035 THE | Coarse thread | 139143 |
| M8 | 1.25 | A2-035 THE | Coarse thread | 1265 |
| M10 | 1.5 | A2-035 THE | Coarse thread | 2097 |
| M10 | 1.0 | A2-035 THE | Extra-fine thread | 309541 |
| M12 | 1.75 | A2-035 THE | Coarse thread | 2757 |
| M12 | 1.5 | A2-035 THE | Fine thread | 93947 |
| M14 | 2 | A2-035 THE | Coarse thread | 106721 |
| M16 | 2 | A2-035 THE | Coarse thread | 4221 |
| M18 | 2.5 | A2-035 THE | Coarse thread | 331702 |
| M18 | 1.5 | A2-035 THE | Extra-fine thread | 309543 |
| M20 | 2.5 | A2-035 THE | Coarse thread | 4952 |
| M22 | 2.5 | A2-035 THE | Coarse thread | 368649 |
| M22 | 1.5 | A2-035 THE | Extra-fine thread | 309546 |
| M24 | 3 | A2-035 THE | Coarse thread | 109968 |
| M24 | 1.5 | A2-035 THE | Extra-fine thread | 309548 |
316 Stainless Steel — 12 catalogue items
| Thread | Pitch (mm) | Source marking | Thread / finish | Item reference |
|---|---|---|---|---|
| M4 | 0.7 | Unmarked | Coarse thread | 368650 |
| M5 | 0.8 | Unmarked | Coarse thread | 368651 |
| M6 | 1 | A4-040 THE | Coarse thread | 754 |
| M8 | 1.25 | A4-040 THE | Coarse thread | 1264 |
| M10 | 1.5 | A4-040 THE | Coarse thread | 2096 |
| M12 | 1.75 | A4-040 THE | Coarse thread | 2756 |
| M14 | 2 | A4-040 THE | Coarse thread | 106782 |
| M16 | 2 | A4-040 THE | Coarse thread | 4220 |
| M18 | 2.5 | A4-040 THE | Coarse thread | 331703 |
| M18 | 1.5 | A4-040 THE | Extra-fine thread | 331699 |
| M20 | 2.5 | A4-040 THE | Coarse thread | 4951 |
| M24 | 3 | A4-040 THE | Coarse thread | 109967 |
316L(Ni10) Stainless Steel — 3 catalogue items
| Thread | Pitch (mm) | Source marking | Thread / finish | Item reference |
|---|---|---|---|---|
| M16 | 2 | A4-040 THE | Coarse thread | 368652 |
| M18 | 2.5 | A4-040 THE | Coarse thread | 368653 |
| M20 | 2.5 | A4-040 THE | Coarse thread | 368654 |
Request a quotation
Send the item reference, material, size and quantity. Include a drawing where nut height, seating face or other dimensional requirements are important. Items available in Tongming stock can usually be dispatched in around 3 days; stock, documentation and dispatch timing are confirmed with the quotation.
