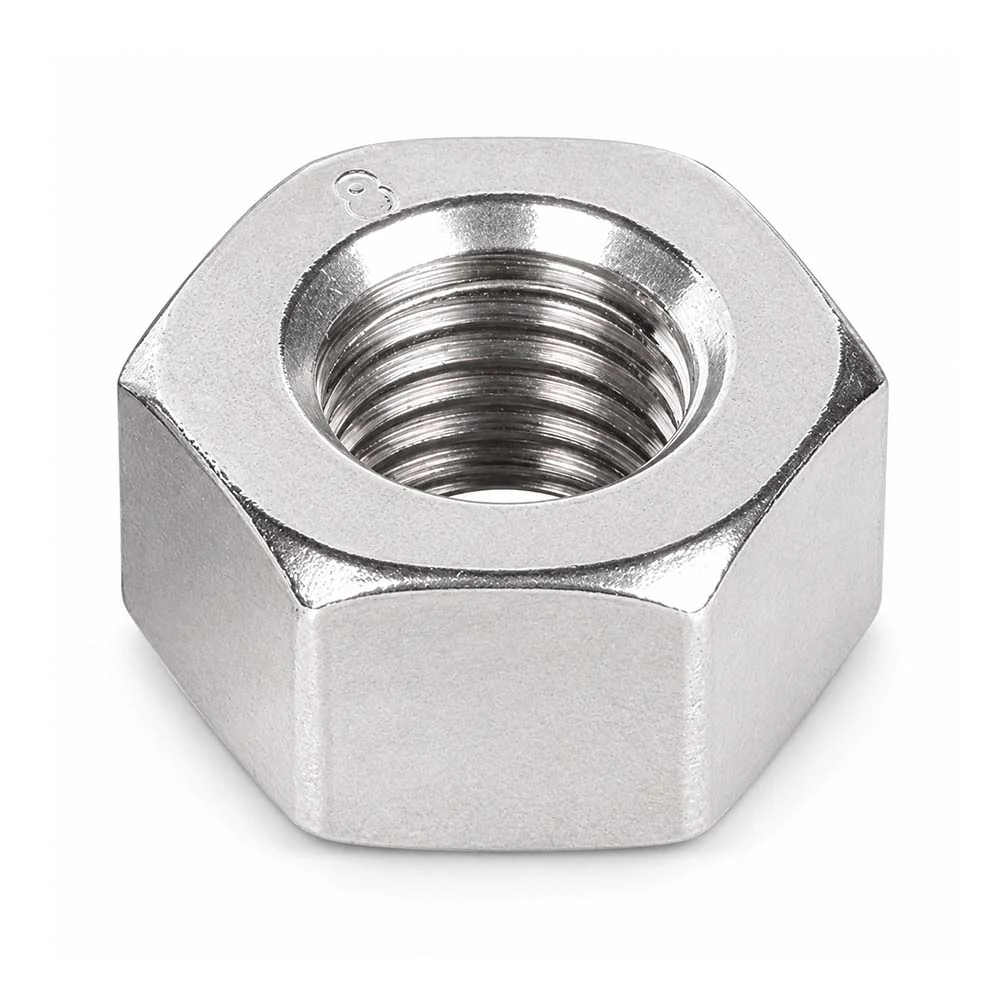

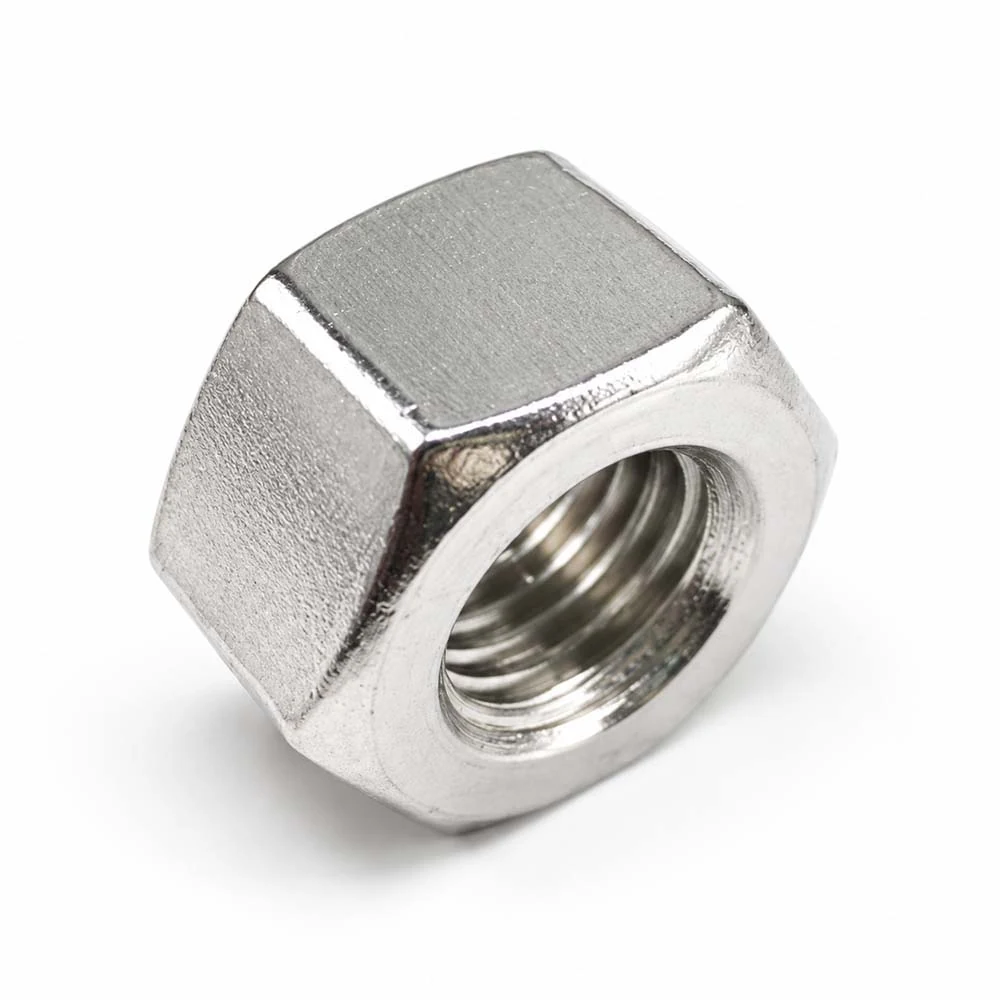

UNI 5587 Stainless Steel Thick Hexagon Nuts
Thick-pattern hexagon nuts. Match the nut height, width across flats and mating thread to your assembly drawing.
Product overview
- Source series: UNI5587.
- Listed materials: 304 / 316L(Ni10).
- Individual catalogue records: 20.
Material labels and markings are separate source fields. A marking does not by itself verify a material standard, property class or pressure rating. Confirm the required standard edition and inspection documents; no pressure-service approval is inferred.
Catalogue specifications
Open a material group. Original size notation is retained, including metric pitch, UNC and 8-UN where stated. Different treatment descriptions and item references remain separate. Heat-treatment descriptions from product names and treatment fields are displayed independently; clarify any missing or conflicting requirements before ordering.
304 stainless steel — 11 catalogue items
| Catalogue size | Source marking | Heat treatment (source name) | Process (source name) | Thread / treatment (source fields) | Item reference |
|---|---|---|---|---|---|
| M8-1.25 | 8 | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290693 |
| M10-1.5 | 8 | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290695 |
| M12-1.75 | 8 | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290706 |
| M14-2 | 8 | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290717 |
| M16-2 | 8 | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290720 |
| M18-2.5 | 8 | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290721 |
| M20-2.5 | 8 | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290722 |
| M22-2.5 | 8 | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290723 |
| M24-3 | 8 | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290724 |
| M27-3 | A2-70 TonG | Not specified | Not specified | Coarse thread | 245075 |
| M30-3.5 | A2-70 TonG | Not specified | Not specified | Coarse thread | 245079 |
316L(Ni10) stainless steel — 9 catalogue items
| Catalogue size | Source marking | Heat treatment (source name) | Process (source name) | Thread / treatment (source fields) | Item reference |
|---|---|---|---|---|---|
| M8-1.25 | 8M | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290728 |
| M10-1.5 | 8M | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290729 |
| M12-1.75 | 8M | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290730 |
| M14-2 | 8M | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290731 |
| M16-2 | 8M | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290733 |
| M18-2.5 | 8M | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290734 |
| M20-2.5 | 8M | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290735 |
| M22-2.5 | 8M | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290737 |
| M24-3 | 8M | Solution-treated feedstock; finished nut not solution treated | Not specified | Coarse thread | 290743 |
Request a quotation
Send the item reference, material, quantity, drawing and required certificates. Items available in Tongming stock can usually be dispatched in around 3 days; availability and dispatch timing are confirmed with the quotation.
