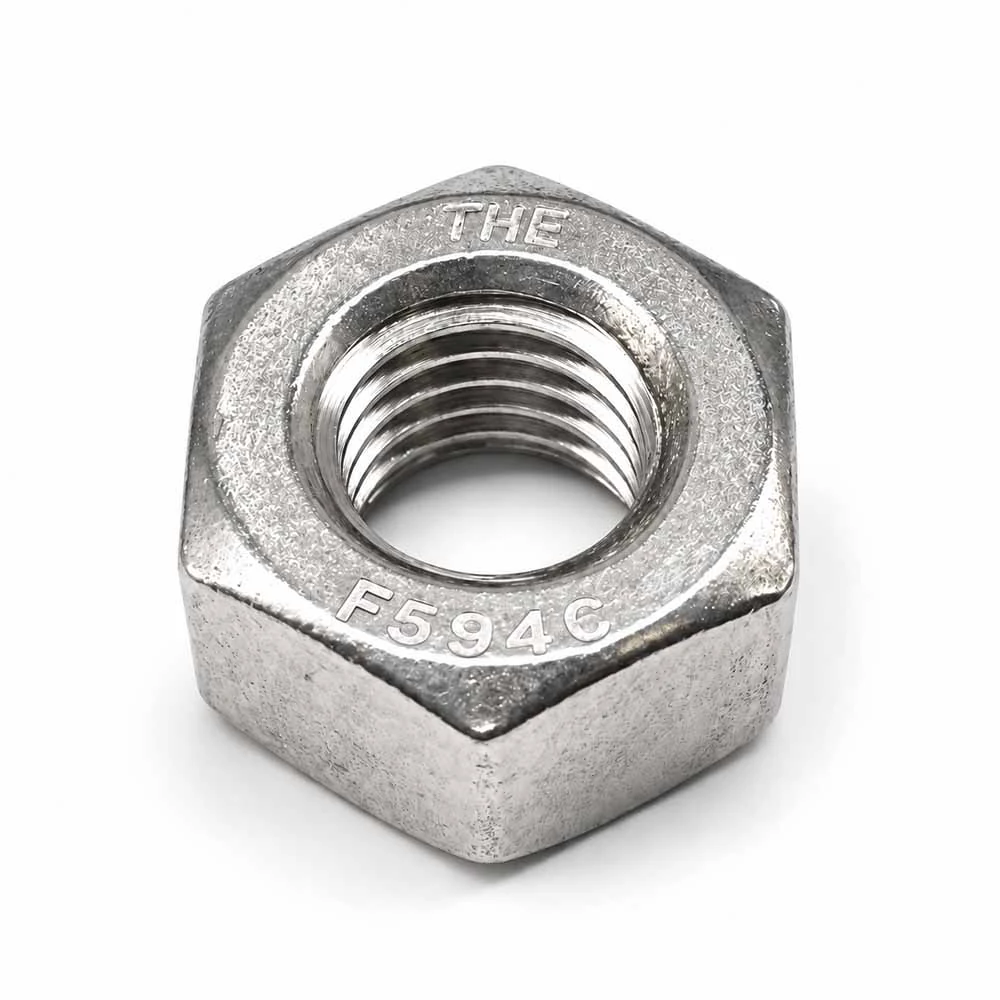

ANSI B18.2.2 Stainless Steel Heavy Hex Nuts — Double Chamfer
Heavy hexagon nuts in the supplier double-chamfer range, described without a washer face. Keep this version separate from the single-chamfer series.
Product overview
- Source series: ANSI B18.2.2.
- Listed materials: 304 / 316.
- Individual catalogue records: 25.
Material labels and markings are separate source fields. A marking does not by itself verify a material standard, property class or pressure rating. Confirm the required standard edition and inspection documents; no pressure-service approval is inferred.
Catalogue specifications
Open a material group. Original size notation is retained, including metric pitch, UNC and 8-UN where stated. Different treatment descriptions and item references remain separate. Heat-treatment descriptions from product names and treatment fields are displayed independently; clarify any missing or conflicting requirements before ordering.
304 stainless steel — 12 catalogue items
| Catalogue size | Source marking | Heat treatment (source name) | Process (source name) | Thread / treatment (source fields) | Item reference |
|---|---|---|---|---|---|
| 1/4-20UNC | F594C THE | Not solution treated | Not specified | Coarse thread | 111597 |
| 1/4-20UNC | 8 THE | Not specified | Not specified | Coarse thread; Solution treated | 124900 |
| 5/16-18UNC | F594C THE | Not solution treated | Not specified | Coarse thread | 128383 |
| 5/16-18UNC | 8 | Not solution treated | Not specified | Coarse thread | 279631 |
| 5/16-18UNC | 8 THE | Not specified | Not specified | Coarse thread; Solution treated | 124901 |
| 3/8-16UNC | F594C THE | Not solution treated | Not specified | Coarse thread | 111211 |
| 3/8-16UNC | 8 THE | Not specified | Not specified | Coarse thread; Solution treated | 122958 |
| 7/16-14UNC | F594C THE | Not solution treated | Not specified | Coarse thread | 114856 |
| 7/16-14UNC | 8 THE | Not specified | Not specified | Coarse thread; Solution treated | 124902 |
| 5/8-11UNC | F594C THE | Not specified | Not specified | Coarse thread | 116987 |
| 5/8-11UNC | 8 THE | Not specified | Not specified | Coarse thread; Solution treated | 122961 |
| 3/4-10 UNC | F594D THE | Not specified | Not specified | Coarse thread | 104400 |
316 stainless steel — 13 catalogue items
| Catalogue size | Source marking | Heat treatment (source name) | Process (source name) | Thread / treatment (source fields) | Item reference |
|---|---|---|---|---|---|
| 1/4-20UNC | F594G316 THE | Not solution treated | Not specified | Coarse thread | 113020 |
| 1/4-20UNC | 8M THE | Not specified | Not specified | Coarse thread; Solution treated | 124903 |
| 5/16-18UNC | F594G316 THE | Not solution treated | Not specified | Coarse thread | 121230 |
| 5/16-18UNC | 8M | Not solution treated | Not specified | Coarse thread | 271830 |
| 5/16-18UNC | 8M THE | Not specified | Not specified | Coarse thread; Solution treated | 124904 |
| 3/8-16UNC | F594G316 THE | Not solution treated | Not specified | Coarse thread | 111212 |
| 3/8-16UNC | 8M THE | Not specified | Not specified | Coarse thread; Solution treated | 124630 |
| 7/16-14UNC | F594G316 THE | Not solution treated | Not specified | Coarse thread | 114855 |
| 7/16-14UNC | 8M THE | Not specified | Not specified | Coarse thread; Solution treated | 124905 |
| 1/2-13 UNC | F594G316 THE | Not specified | Not specified | Coarse thread | 54281 |
| 5/8-11 UNC | F594G316 THE | Not specified | Not specified | Coarse thread | 120211 |
| 5/8-11UNC | 8M THE | Not specified | Not specified | Coarse thread; Solution treated | 124907 |
| 3/4-10 UNC | F594H316 THE | Not specified | Not specified | Coarse thread | 54468 |
Request a quotation
Send the item reference, material, quantity, drawing and required certificates. Items available in Tongming stock can usually be dispatched in around 3 days; availability and dispatch timing are confirmed with the quotation.
