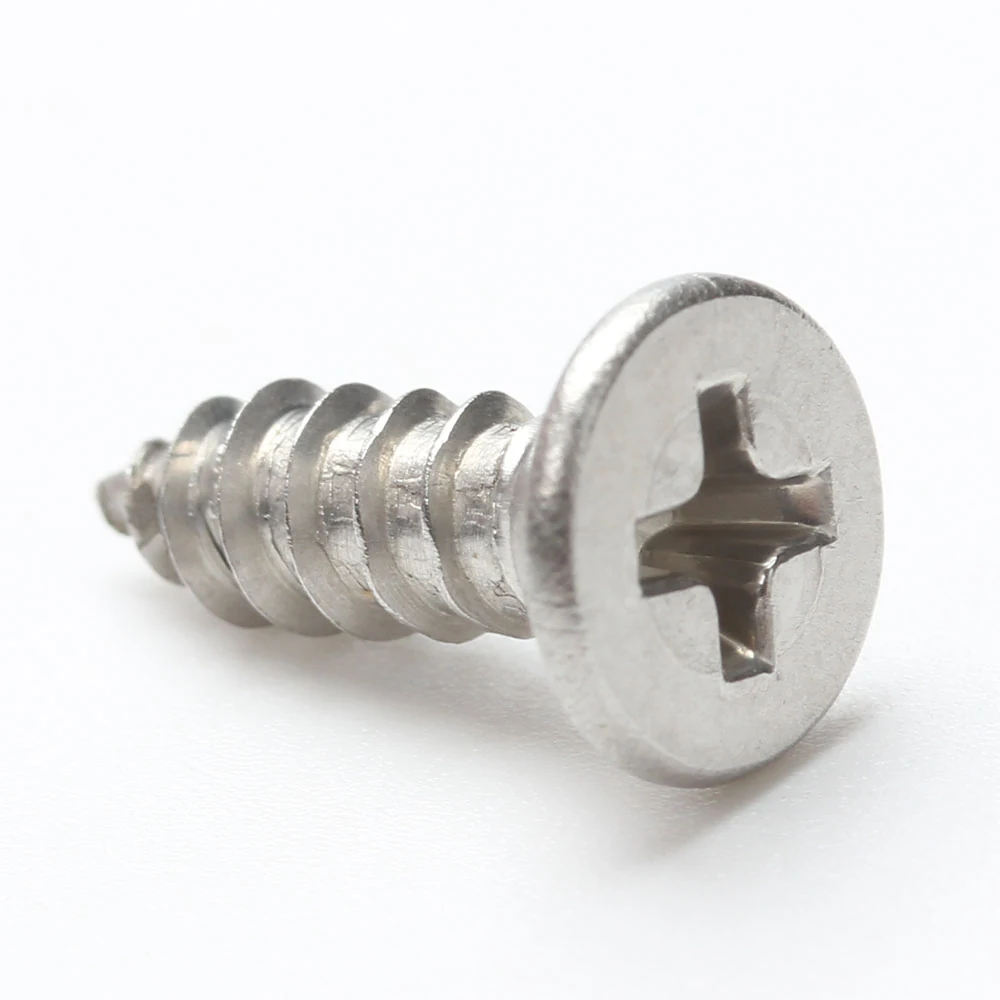

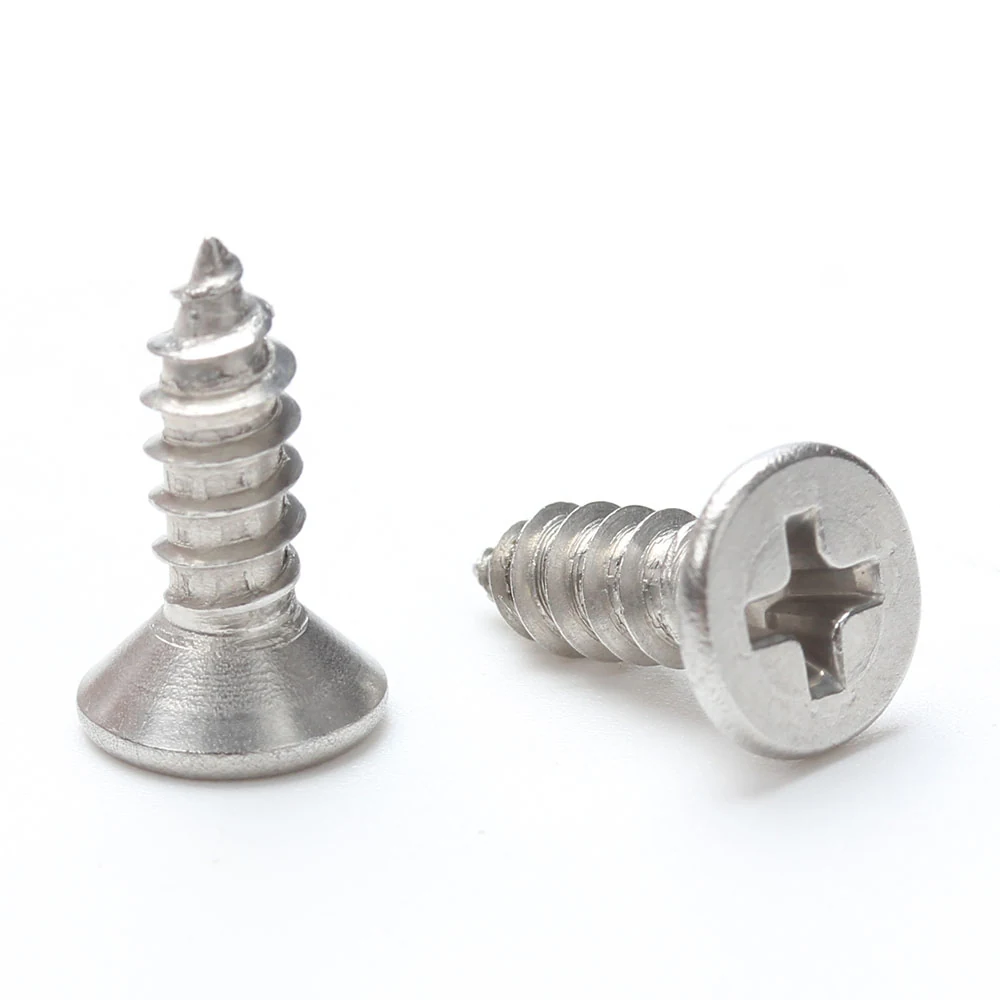

DIN 7982 Stainless Steel Countersunk Tapping Screws
A countersunk head provides a flush seating profile when paired with the correct countersink. Compare the listed 304 stainless steel sizes and select the exact catalogue reference for your enquiry.
Choose the right version
The catalogue includes entries explicitly described as type H and entries described only as cross-recessed. They are retained separately. Confirm the recess, pilot hole and countersink dimensions against your drawing.
Catalogue specifications
Expand a material and diameter group to compare the exact size, thread description and item reference. Dimensions are retained as listed by the supplier. Availability is confirmed when quoting.
304 stainless steel / ST2.2 — 6 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| ST2.2*6.5 |
Full thread; cross recess |
Unmarked |
265409 |
| ST2.2*9.5 |
Full thread; cross recess |
Unmarked |
267377 |
| ST2.2*13 |
Full thread; cross recess |
Unmarked |
267378 |
| ST2.2*16 |
Full thread; cross recess |
Unmarked |
267379 |
| ST2.2*19 |
Full thread; cross recess |
Unmarked |
267380 |
| ST2.2*22 |
Full thread; cross recess |
Unmarked |
267381 |
304 stainless steel / ST2.9 — 10 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| ST2.9*6.5 |
Full thread; cross recess |
Unmarked |
267232 |
| ST2.9*9.5 |
Full thread; cross recess |
Unmarked |
267231 |
| ST2.9*13 |
Full thread; cross recess |
Unmarked |
267233 |
| ST2.9*16 |
Full thread; cross recess |
Unmarked |
267234 |
| ST2.9*19 |
Full thread; cross recess |
Unmarked |
267235 |
| ST2.9*22 |
Full thread; cross recess |
Unmarked |
267236 |
| ST2.9*25 |
Full thread; cross recess |
Unmarked |
267237 |
| ST2.9*30 |
Full thread; cross recess |
Unmarked |
267238 |
| ST2.9*32 |
Full thread; cross recess |
Unmarked |
267239 |
| ST2.9*35 |
Full thread; cross recess |
Unmarked |
267240 |
304 stainless steel / ST3.5 — 25 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| ST3.5 X 9.5 |
Full thread; type H cross recess |
Unmarked |
215 |
| ST3.5*9.5 |
Full thread; cross recess |
Unmarked |
267242 |
| ST3.5 X 13 |
Full thread; type H cross recess |
Unmarked |
216 |
| ST3.5*13 |
Full thread; cross recess |
Unmarked |
267243 |
| ST3.5 X 16 |
Full thread; type H cross recess |
Unmarked |
217 |
| ST3.5*16 |
Full thread; cross recess |
Unmarked |
267244 |
| ST3.5 X 19 |
Full thread; type H cross recess |
Unmarked |
218 |
| ST3.5*19 |
Full thread; cross recess |
Unmarked |
267245 |
| ST3.5 X 22 |
Full thread; type H cross recess |
Unmarked |
219 |
| ST3.5*22 |
Full thread; cross recess |
Unmarked |
267246 |
| ST3.5 X 25 |
Full thread; type H cross recess |
Unmarked |
220 |
| ST3.5*25 |
Full thread; cross recess |
Unmarked |
267247 |
| ST3.5 X 30 |
Full thread; type H cross recess |
Unmarked |
216682 |
| ST3.5*30 |
Full thread; cross recess |
Unmarked |
267248 |
| ST3.5 X 32 |
Full thread; type H cross recess |
Unmarked |
221 |
| ST3.5*32 |
Full thread; cross recess |
Unmarked |
267249 |
| ST3.5 X 35 |
Full thread; type H cross recess |
Unmarked |
222 |
| ST3.5*35 |
Full thread; cross recess |
Unmarked |
267250 |
| ST3.5 X 38 |
Full thread; type H cross recess |
Unmarked |
223 |
| ST3.5*38 |
Full thread; cross recess |
Unmarked |
267251 |
| ST3.5*40 |
Full thread; cross recess |
Unmarked |
267252 |
| ST3.5*45 |
Full thread; cross recess |
Unmarked |
267253 |
| ST3.5*50 |
Full thread; cross recess |
Unmarked |
267254 |
| ST3.5*55 |
Full thread; cross recess |
Unmarked |
267255 |
| ST3.5*60 |
Full thread; cross recess |
Unmarked |
267256 |
304 stainless steel / ST3.9 — 26 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| ST3.9 X 9.5 |
Full thread; type H cross recess |
Unmarked |
225 |
| ST3.9*9.5 |
Full thread; cross recess |
Unmarked |
267258 |
| ST3.9 X 13 |
Full thread; type H cross recess |
Unmarked |
227 |
| ST3.9*13 |
Full thread; cross recess |
Unmarked |
267259 |
| ST3.9 X 16 |
Full thread; type H cross recess |
Unmarked |
228 |
| ST3.9*16 |
Full thread; cross recess |
Unmarked |
267260 |
| ST3.9 X 19 |
Full thread; type H cross recess |
Unmarked |
229 |
| ST3.9*19 |
Full thread; cross recess |
Unmarked |
267261 |
| ST3.9 X 22 |
Full thread; type H cross recess |
Unmarked |
230 |
| ST3.9*22 |
Full thread; cross recess |
Unmarked |
267262 |
| ST3.9 X 25 |
Full thread; type H cross recess |
Unmarked |
231 |
| ST3.9*25 |
Full thread; cross recess |
Unmarked |
267263 |
| ST3.9*30 |
Full thread; cross recess |
Unmarked |
267264 |
| ST3.9 X 32 |
Full thread; type H cross recess |
Unmarked |
232 |
| ST3.9*32 |
Full thread; cross recess |
Unmarked |
267265 |
| ST3.9 X 35 |
Full thread; type H cross recess |
Unmarked |
233 |
| ST3.9*35 |
Full thread; cross recess |
Unmarked |
267266 |
| ST3.9 X 38 |
Full thread; type H cross recess |
Unmarked |
234 |
| ST3.9*38 |
Full thread; cross recess |
Unmarked |
267267 |
| ST3.9*40 |
Full thread; cross recess |
Unmarked |
267268 |
| ST3.9 X 45 |
Full thread; type H cross recess |
Unmarked |
235 |
| ST3.9*45 |
Full thread; cross recess |
Unmarked |
267269 |
| ST3.9 X 50 |
Full thread; type H cross recess |
Unmarked |
236 |
| ST3.9*50 |
Full thread; cross recess |
Unmarked |
267270 |
| ST3.9*55 |
Full thread; cross recess |
Unmarked |
267271 |
| ST3.9*60 |
Full thread; cross recess |
Unmarked |
267272 |
304 stainless steel / ST4.2 — 28 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| ST4.2 X 9.5 |
Full thread; type H cross recess |
Unmarked |
255 |
| ST4.2*9.5 |
Full thread; cross recess |
Unmarked |
267273 |
| ST4.2 X 13 |
Full thread; type H cross recess |
Unmarked |
256 |
| ST4.2*13 |
Full thread; cross recess |
Unmarked |
267274 |
| ST4.2 X 16 |
Full thread; type H cross recess |
Unmarked |
257 |
| ST4.2*16 |
Full thread; cross recess |
Unmarked |
267275 |
| ST4.2 X 19 |
Full thread; type H cross recess |
Unmarked |
258 |
| ST4.2*19 |
Full thread; cross recess |
Unmarked |
267276 |
| ST4.2 X 22 |
Full thread; type H cross recess |
Unmarked |
259 |
| ST4.2*22 |
Full thread; cross recess |
Unmarked |
267277 |
| ST4.2 X 25 |
Full thread; type H cross recess |
Unmarked |
260 |
| ST4.2*25 |
Full thread; cross recess |
Unmarked |
267278 |
| ST4.2*30 |
Full thread; cross recess |
Unmarked |
267279 |
| ST4.2 X 32 |
Full thread; type H cross recess |
Unmarked |
261 |
| ST4.2*32 |
Full thread; cross recess |
Unmarked |
267280 |
| ST4.2 X 35 |
Full thread; type H cross recess |
Unmarked |
262 |
| ST4.2*35 |
Full thread; cross recess |
Unmarked |
267281 |
| ST4.2 X 38 |
Full thread; type H cross recess |
Unmarked |
263 |
| ST4.2*38 |
Full thread; cross recess |
Unmarked |
267282 |
| ST4.2*40 |
Full thread; cross recess |
Unmarked |
267283 |
| ST4.2 X 45 |
Full thread; type H cross recess |
Unmarked |
264 |
| ST4.2*45 |
Full thread; cross recess |
Unmarked |
267284 |
| ST4.2 X 50 |
Full thread; type H cross recess |
Unmarked |
265 |
| ST4.2*50 |
Full thread; cross recess |
Unmarked |
267285 |
| ST4.2*55 |
Full thread; cross recess |
Unmarked |
267286 |
| ST4.2*60 |
Full thread; cross recess |
Unmarked |
267287 |
| ST4.2*65 |
Full thread; cross recess |
Unmarked |
267288 |
| ST4.2*70 |
Full thread; cross recess |
Unmarked |
267289 |
304 stainless steel / ST4.8 — 36 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| ST4.8*9.5 |
Full thread; cross recess |
Unmarked |
267290 |
| ST4.8 X 9.5 |
Full thread; type H cross recess |
Unmarked |
429 |
| ST4.8*13 |
Full thread; cross recess |
Unmarked |
267291 |
| ST4.8 X 13 |
Full thread; type H cross recess |
Unmarked |
432 |
| ST4.8*16 |
Full thread; cross recess |
Unmarked |
267292 |
| ST4.8 X 16 |
Full thread; type H cross recess |
Unmarked |
433 |
| ST4.8*19 |
Full thread; cross recess |
Unmarked |
267293 |
| ST4.8 X 19 |
Full thread; type H cross recess |
Unmarked |
434 |
| ST4.8*22 |
Full thread; cross recess |
Unmarked |
267294 |
| ST4.8 X 22 |
Full thread; type H cross recess |
Unmarked |
435 |
| ST4.8*25 |
Full thread; cross recess |
Unmarked |
267295 |
| ST4.8 X 25 |
Full thread; type H cross recess |
Unmarked |
436 |
| ST4.8*30 |
Full thread; cross recess |
Unmarked |
267296 |
| ST4.8 X 30 |
Full thread; type H cross recess |
Unmarked |
437 |
| ST4.8*32 |
Full thread; cross recess |
Unmarked |
267297 |
| ST4.8 X 32 |
Full thread; type H cross recess |
Unmarked |
438 |
| ST4.8*35 |
Full thread; cross recess |
Unmarked |
267298 |
| ST4.8 X 35 |
Full thread; type H cross recess |
Unmarked |
439 |
| ST4.8*38 |
Full thread; cross recess |
Unmarked |
267299 |
| ST4.8 X 38 |
Full thread; type H cross recess |
Unmarked |
440 |
| ST4.8*40 |
Full thread; cross recess |
Unmarked |
267300 |
| ST4.8 X 40 |
Full thread; type H cross recess |
Unmarked |
441 |
| ST4.8*45 |
Full thread; cross recess |
Unmarked |
267301 |
| ST4.8 X 45 |
Full thread; type H cross recess |
Unmarked |
442 |
| ST4.8*50 |
Full thread; cross recess |
Unmarked |
267302 |
| ST4.8 X 50 |
Full thread; type H cross recess |
Unmarked |
443 |
| ST4.8*55 |
Full thread; cross recess |
Unmarked |
267303 |
| ST4.8*60 |
Full thread; cross recess |
Unmarked |
267304 |
| ST4.8*65 |
Full thread; cross recess |
Unmarked |
267305 |
| ST4.8*70 |
Full thread; cross recess |
Unmarked |
267306 |
| ST4.8*75 |
Full thread; cross recess |
Unmarked |
267307 |
| ST4.8*80 |
Full thread; cross recess |
Unmarked |
267308 |
| ST4.8*85 |
Full thread; cross recess |
Unmarked |
267309 |
| ST4.8*90 |
Full thread; cross recess |
Unmarked |
267310 |
| ST4.8*95 |
Full thread; cross recess |
Unmarked |
267311 |
| ST4.8*100 |
Full thread; cross recess |
Unmarked |
267312 |
304 stainless steel / ST5.5 — 33 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| ST5.5*13 |
Full thread; cross recess |
Unmarked |
267313 |
| ST5.5 X 13 |
Full thread; type H cross recess |
Unmarked |
902 |
| ST5.5*16 |
Full thread; cross recess |
Unmarked |
267314 |
| ST5.5 X 16 |
Full thread; type H cross recess |
Unmarked |
903 |
| ST5.5*19 |
Full thread; cross recess |
Unmarked |
267316 |
| ST5.5 X 19 |
Full thread; type H cross recess |
Unmarked |
904 |
| ST5.5*22 |
Full thread; cross recess |
Unmarked |
267317 |
| ST5.5 X 22 |
Full thread; type H cross recess |
Unmarked |
906 |
| ST5.5*25 |
Full thread; cross recess |
Unmarked |
267319 |
| ST5.5 X 25 |
Full thread; type H cross recess |
Unmarked |
907 |
| ST5.5*30 |
Full thread; cross recess |
Unmarked |
267320 |
| ST5.5*32 |
Full thread; cross recess |
Unmarked |
267321 |
| ST5.5 X 32 |
Full thread; type H cross recess |
Unmarked |
908 |
| ST5.5*35 |
Full thread; cross recess |
Unmarked |
267322 |
| ST5.5 X 35 |
Full thread; type H cross recess |
Unmarked |
909 |
| ST5.5*38 |
Full thread; cross recess |
Unmarked |
267323 |
| ST5.5 X 38 |
Full thread; type H cross recess |
Unmarked |
910 |
| ST5.5*40 |
Full thread; cross recess |
Unmarked |
267324 |
| ST5.5 X 40 |
Full thread; type H cross recess |
Unmarked |
911 |
| ST5.5*45 |
Full thread; cross recess |
Unmarked |
267326 |
| ST5.5 X 45 |
Full thread; type H cross recess |
Unmarked |
912 |
| ST5.5*50 |
Full thread; cross recess |
Unmarked |
267327 |
| ST5.5 X 50 |
Full thread; type H cross recess |
Unmarked |
913 |
| ST5.5*55 |
Full thread; cross recess |
Unmarked |
267329 |
| ST5.5*60 |
Full thread; cross recess |
Unmarked |
267330 |
| ST5.5*65 |
Full thread; cross recess |
Unmarked |
267331 |
| ST5.5*70 |
Full thread; cross recess |
Unmarked |
267332 |
| ST5.5*75 |
Full thread; cross recess |
Unmarked |
267334 |
| ST5.5*80 |
Full thread; cross recess |
Unmarked |
267335 |
| ST5.5*85 |
Full thread; cross recess |
Unmarked |
267337 |
| ST5.5*90 |
Full thread; cross recess |
Unmarked |
267338 |
| ST5.5*95 |
Full thread; cross recess |
Unmarked |
267339 |
| ST5.5*100 |
Full thread; cross recess |
Unmarked |
267340 |
304 stainless steel / ST6.3 — 31 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| ST6.3*16 |
Full thread; cross recess |
Unmarked |
267343 |
| ST6.3 X 16 |
Full thread; type H cross recess |
Unmarked |
936 |
| ST6.3*19 |
Full thread; cross recess |
Unmarked |
267344 |
| ST6.3 X 19 |
Full thread; type H cross recess |
Unmarked |
937 |
| ST6.3*22 |
Full thread; cross recess |
Unmarked |
267346 |
| ST6.3 X 22 |
Full thread; type H cross recess |
Unmarked |
939 |
| ST6.3*25 |
Full thread; cross recess |
Unmarked |
267347 |
| ST6.3 X 25 |
Full thread; type H cross recess |
Unmarked |
940 |
| ST6.3*30 |
Full thread; cross recess |
Unmarked |
267348 |
| ST6.3 X 30 |
Full thread; type H cross recess |
Unmarked |
941 |
| ST6.3*32 |
Full thread; cross recess |
Unmarked |
267349 |
| ST6.3 X 32 |
Full thread; type H cross recess |
Unmarked |
942 |
| ST6.3*35 |
Full thread; cross recess |
Unmarked |
267351 |
| ST6.3 X 35 |
Full thread; type H cross recess |
Unmarked |
943 |
| ST6.3*38 |
Full thread; cross recess |
Unmarked |
267353 |
| ST6.3 X 38 |
Full thread; type H cross recess |
Unmarked |
944 |
| ST6.3 X 40 |
Full thread; type H cross recess |
Unmarked |
945 |
| ST6.3*45 |
Full thread; cross recess |
Unmarked |
267356 |
| ST6.3 X 45 |
Full thread; type H cross recess |
Unmarked |
946 |
| ST6.3*50 |
Full thread; cross recess |
Unmarked |
267358 |
| ST6.3 X 50 |
Full thread; type H cross recess |
Unmarked |
947 |
| ST6.3*55 |
Full thread; cross recess |
Unmarked |
267359 |
| ST6.3*60 |
Full thread; cross recess |
Unmarked |
267361 |
| ST6.3*65 |
Full thread; cross recess |
Unmarked |
267362 |
| ST6.3*70 |
Full thread; cross recess |
Unmarked |
267363 |
| ST6.3*75 |
Full thread; cross recess |
Unmarked |
267364 |
| ST6.3*80 |
Full thread; cross recess |
Unmarked |
267365 |
| ST6.3*85 |
Full thread; cross recess |
Unmarked |
267366 |
| ST6.3*90 |
Full thread; cross recess |
Unmarked |
267367 |
| ST6.3*95 |
Full thread; cross recess |
Unmarked |
267368 |
| ST6.3*100 |
Full thread; cross recess |
Unmarked |
267369 |
Request a quotation
Send the item reference, quantity, application and delivery country. Include any drawing, inspection or documentation requirements. For items available in Dongming stock, dispatch can usually be arranged in around 3 days, subject to stock and order confirmation.
Request a Quote
