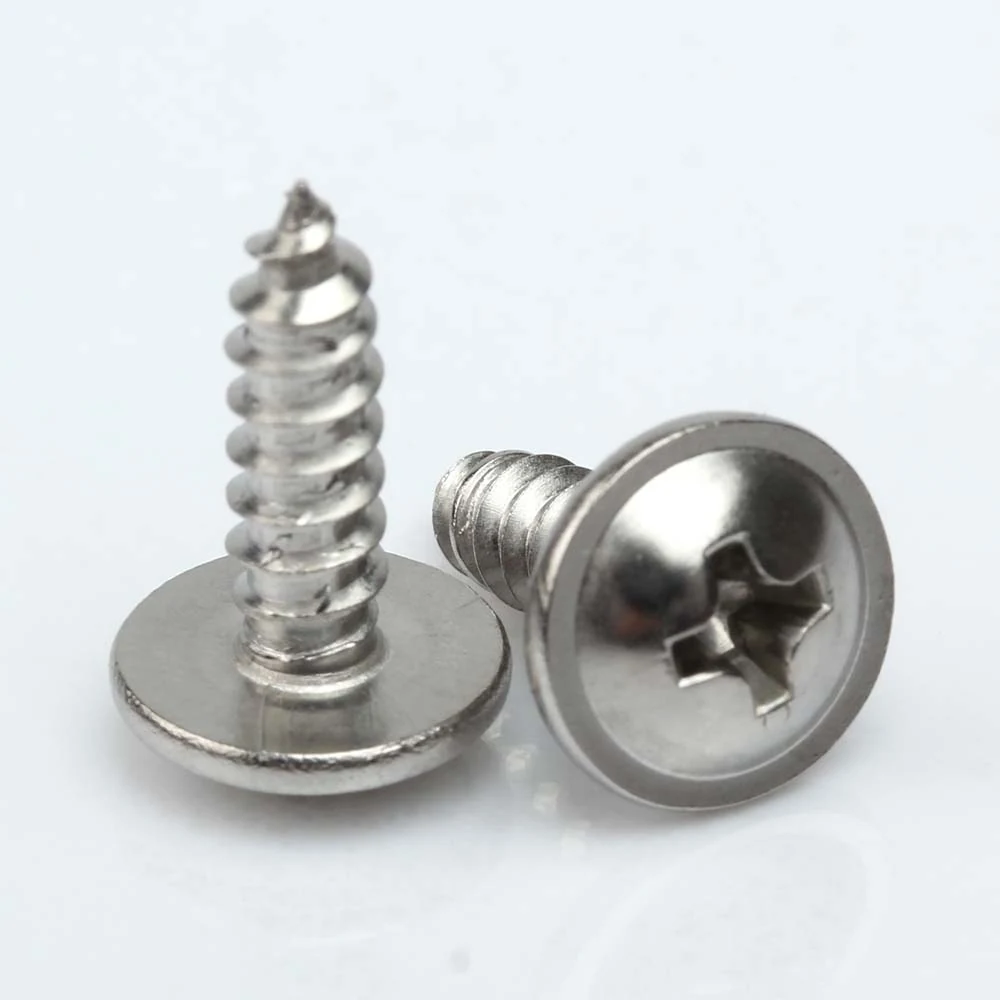

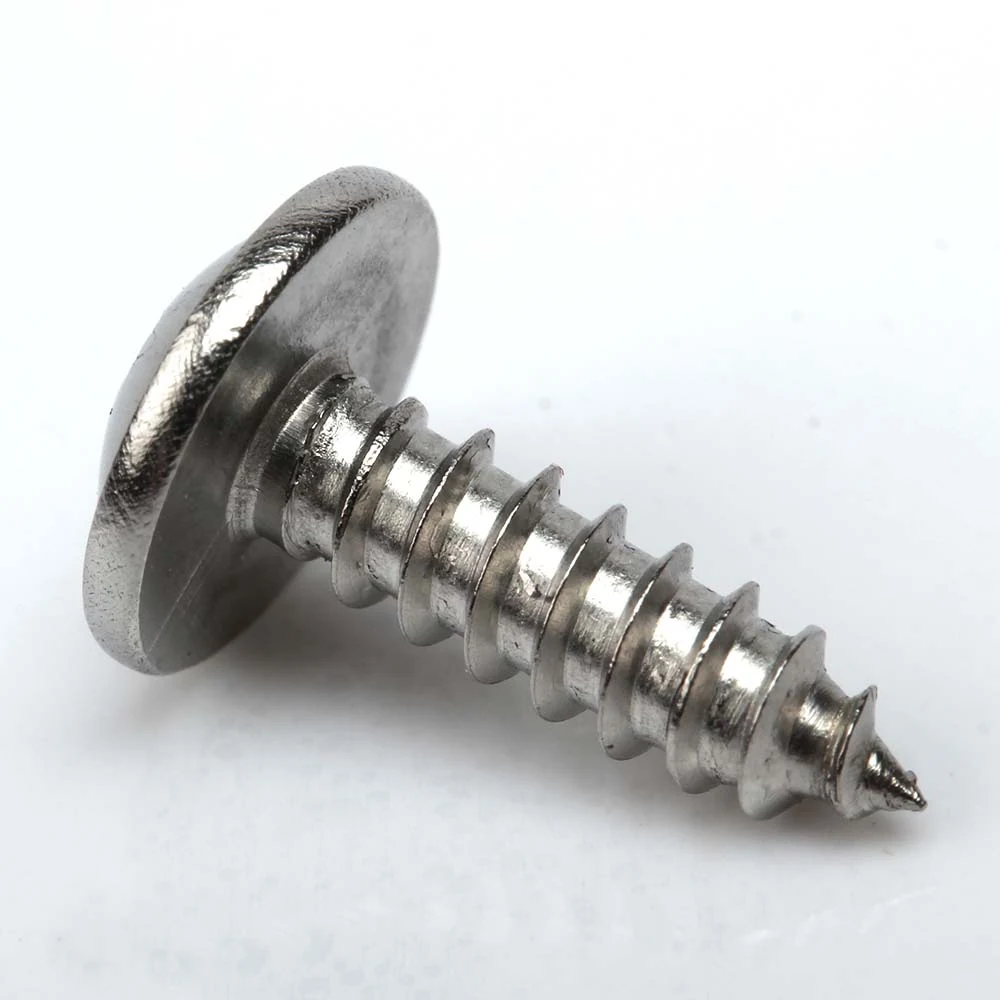

DIN 968 Stainless Steel Cross-Recessed Pan Head Collar Tapping Screws
304 stainless cross-recessed pan head tapping screws with an integral collar from the supplier DIN 968 range. Compare 125 catalogue references by ST thread size and length.
Product overview
- Listed material: 304 stainless steel.
- Drive: cross recess; recess type and size require drawing confirmation.
- Head form: pan head with an integral collar.
- Thread form: self-tapping, listed as full thread.
- Source marking: unmarked; no strength class is inferred.
- Thread designations: ST2.9, ST3.5, ST3.9, ST4.2, ST4.8, ST5.5, ST6.3.
ST designations are retained as tapping-screw sizes, not converted to metric machine threads. Confirm point form, head and collar dimensions, required standard edition, substrate material, pilot hole and sheet thickness for your application. The captured records do not state numeric pitch, drilling capacity or surface treatment. The integral collar is not a separate washer assembly, and the product is not represented as a self-drilling screw. Confirm length units against the drawing.
Catalogue specifications
Open a tapping-thread size group to compare lengths and supplier references. Same nominal sizes with different item references remain listed for accurate quotation. Catalogue entries do not confirm current stock.
ST2.9 — 10 catalogue items
| Tapping thread |
Length (source value) |
Item reference |
| ST2.9 |
6.5 |
265403 |
| ST2.9 |
9.5 |
266923 |
| ST2.9 |
13 |
266924 |
| ST2.9 |
16 |
266925 |
| ST2.9 |
19 |
266926 |
| ST2.9 |
22 |
266927 |
| ST2.9 |
25 |
266928 |
| ST2.9 |
30 |
266929 |
| ST2.9 |
32 |
266930 |
| ST2.9 |
35 |
266931 |
ST3.5 — 16 catalogue items
| Tapping thread |
Length (source value) |
Item reference |
| ST3.5 |
6.5 |
266932 |
| ST3.5 |
9.5 |
266933 |
| ST3.5 |
13 |
266934 |
| ST3.5 |
16 |
266935 |
| ST3.5 |
19 |
266936 |
| ST3.5 |
22 |
266937 |
| ST3.5 |
25 |
266938 |
| ST3.5 |
30 |
266939 |
| ST3.5 |
32 |
266940 |
| ST3.5 |
35 |
266941 |
| ST3.5 |
38 |
266942 |
| ST3.5 |
40 |
266943 |
| ST3.5 |
45 |
266944 |
| ST3.5 |
50 |
266945 |
| ST3.5 |
55 |
266946 |
| ST3.5 |
60 |
266947 |
ST3.9 — 16 catalogue items
| Tapping thread |
Length (source value) |
Item reference |
| ST3.9 |
6.5 |
266948 |
| ST3.9 |
9.5 |
266949 |
| ST3.9 |
13 |
266950 |
| ST3.9 |
16 |
266952 |
| ST3.9 |
19 |
266953 |
| ST3.9 |
22 |
266954 |
| ST3.9 |
25 |
266955 |
| ST3.9 |
30 |
266956 |
| ST3.9 |
32 |
266957 |
| ST3.9 |
35 |
266958 |
| ST3.9 |
38 |
266959 |
| ST3.9 |
40 |
266960 |
| ST3.9 |
45 |
266961 |
| ST3.9 |
50 |
266962 |
| ST3.9 |
55 |
266963 |
| ST3.9 |
60 |
266964 |
ST4.2 — 17 catalogue items
| Tapping thread |
Length (source value) |
Item reference |
| ST4.2 |
9.5 |
266965 |
| ST4.2 |
13 |
266966 |
| ST4.2 |
16 |
266967 |
| ST4.2 |
19 |
266968 |
| ST4.2 |
22 |
266969 |
| ST4.2 |
25 |
266970 |
| ST4.2 |
30 |
266971 |
| ST4.2 |
32 |
266972 |
| ST4.2 |
35 |
266973 |
| ST4.2 |
38 |
266974 |
| ST4.2 |
40 |
266975 |
| ST4.2 |
45 |
266976 |
| ST4.2 |
50 |
266977 |
| ST4.2 |
55 |
266978 |
| ST4.2 |
60 |
266979 |
| ST4.2 |
65 |
266980 |
| ST4.2 |
70 |
266981 |
ST4.8 — 22 catalogue items
| Tapping thread |
Length (source value) |
Item reference |
| ST4.8 |
9.5 |
266982 |
| ST4.8 |
13 |
266983 |
| ST4.8 |
16 |
266984 |
| ST4.8 |
19 |
266985 |
| ST4.8 |
22 |
266986 |
| ST4.8 |
25 |
266987 |
| ST4.8 |
30 |
266988 |
| ST4.8 |
35 |
266990 |
| ST4.8 |
38 |
266991 |
| ST4.8 |
40 |
266992 |
| ST4.8 |
45 |
266993 |
| ST4.8 |
50 |
266994 |
| ST4.8 |
55 |
266995 |
| ST4.8 |
60 |
266997 |
| ST4.8 |
65 |
266998 |
| ST4.8 |
70 |
266999 |
| ST4.8 |
75 |
267000 |
| ST4.8 |
80 |
267001 |
| ST4.8 |
85 |
267002 |
| ST4.8 |
90 |
267003 |
| ST4.8 |
95 |
267004 |
| ST4.8 |
100 |
267005 |
ST5.5 — 22 catalogue items
| Tapping thread |
Length (source value) |
Item reference |
| ST5.5 |
13 |
267006 |
| ST5.5 |
16 |
267007 |
| ST5.5 |
19 |
267008 |
| ST5.5 |
22 |
267009 |
| ST5.5 |
25 |
267010 |
| ST5.5 |
30 |
267011 |
| ST5.5 |
32 |
267012 |
| ST5.5 |
35 |
267013 |
| ST5.5 |
38 |
267014 |
| ST5.5 |
40 |
267015 |
| ST5.5 |
45 |
267016 |
| ST5.5 |
50 |
267018 |
| ST5.5 |
55 |
267019 |
| ST5.5 |
60 |
267020 |
| ST5.5 |
65 |
267021 |
| ST5.5 |
70 |
267022 |
| ST5.5 |
75 |
267023 |
| ST5.5 |
80 |
267024 |
| ST5.5 |
85 |
267025 |
| ST5.5 |
90 |
267026 |
| ST5.5 |
95 |
267027 |
| ST5.5 |
100 |
267028 |
ST6.3 — 22 catalogue items
| Tapping thread |
Length (source value) |
Item reference |
| ST6.3 |
13 |
267029 |
| ST6.3 |
16 |
267030 |
| ST6.3 |
19 |
267031 |
| ST6.3 |
22 |
267032 |
| ST6.3 |
25 |
267033 |
| ST6.3 |
30 |
267034 |
| ST6.3 |
32 |
267035 |
| ST6.3 |
35 |
267036 |
| ST6.3 |
38 |
267037 |
| ST6.3 |
40 |
267038 |
| ST6.3 |
45 |
267039 |
| ST6.3 |
50 |
267040 |
| ST6.3 |
55 |
267041 |
| ST6.3 |
60 |
267042 |
| ST6.3 |
65 |
267043 |
| ST6.3 |
70 |
267044 |
| ST6.3 |
75 |
267045 |
| ST6.3 |
80 |
267046 |
| ST6.3 |
85 |
267047 |
| ST6.3 |
90 |
267048 |
| ST6.3 |
95 |
267049 |
| ST6.3 |
100 |
267050 |
Request a quotation
Send the item reference, quantity, drawing and substrate details. For items available in Dongming stock, dispatch can usually be arranged in around 3 days, subject to stock and order confirmation.
Request a Quote
