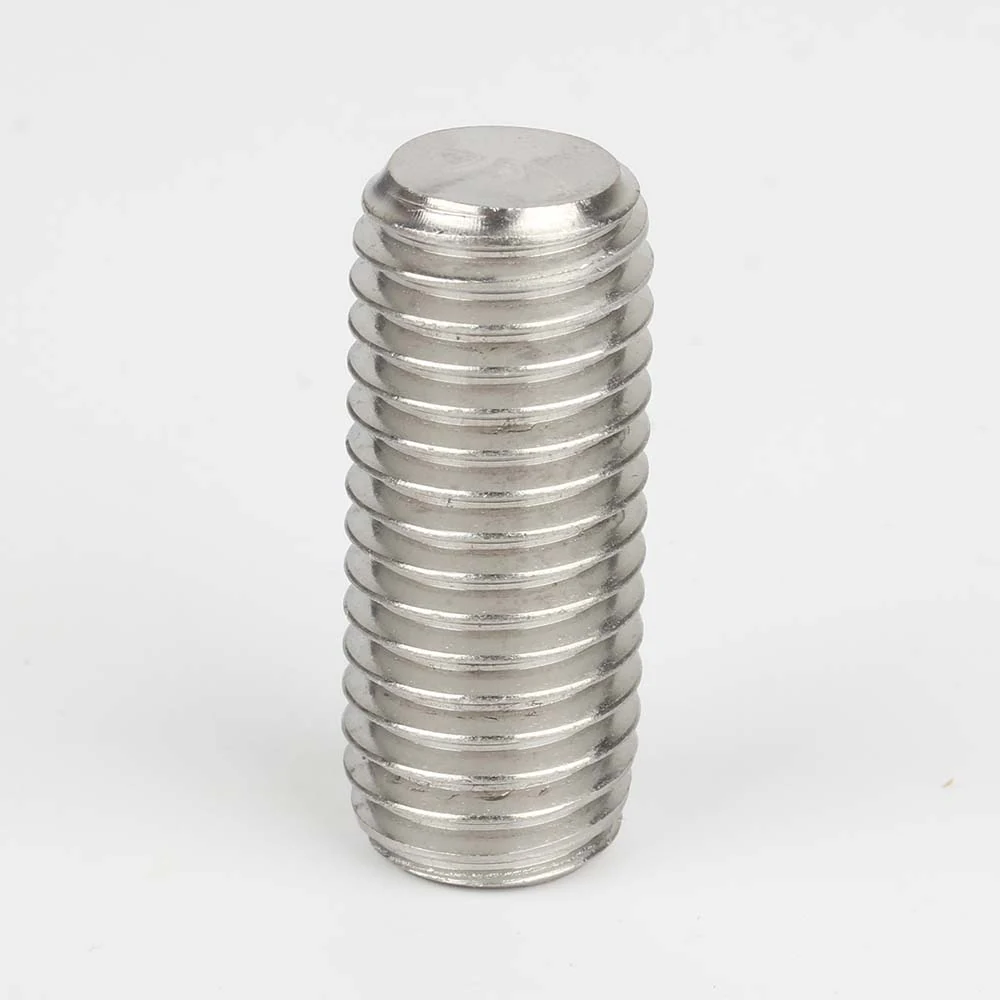

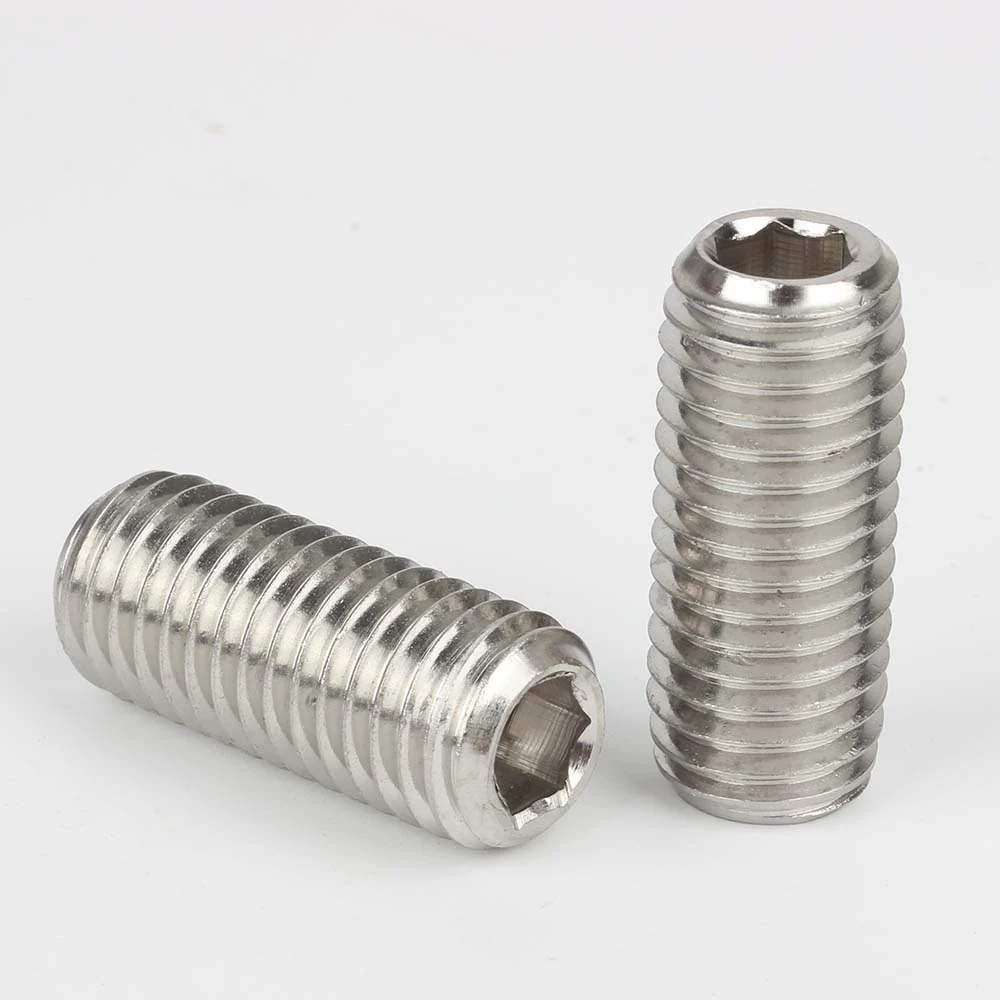

ANSI B18.3 Stainless Steel Flat Point Socket Set Screws
304 stainless steel inch-series socket set screws. Compare 43 catalogue references by size, version and item number.
Selection notes
Choose the flat point, hexagon socket and full inch-series size together. These 304 stainless steel items are fully threaded and listed without markings. Thread tolerance class, hardness and finish are not stated. Confirm the point dimensions, socket and agreed standard edition against the drawing; do not substitute a metric DIN 913 item based on appearance alone.
Catalogue specifications
Expand a material and thread-size group to compare the exact catalogue size, version, marking and item reference. Original size notation is retained. Availability is confirmed when quoting.
304 stainless steel / 8#-32 — 9 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| 8#-32*5/32 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233837 |
| 8#-32*3/16 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233839 |
| 8#-32*1/4 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233841 |
| 8#-32*5/16 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233843 |
| 8#-32*3/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233845 |
| 8#-32*1/2 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233848 |
| 8#-32*5/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233850 |
| 8#-32*3/4 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233851 |
| 8#-32*1 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233856 |
304 stainless steel / 10#-24 — 8 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| 10#-24*3/16 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233884 |
| 10#-24*1/4 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233887 |
| 10#-24*5/16 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233891 |
| 10#-24*3/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233894 |
| 10#-24*1/2 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233898 |
| 10#-24*5/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233903 |
| 10#-24*3/4 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233906 |
| 10#-24*1 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233910 |
304 stainless steel / 1/4-20 — 8 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| 1/4-20*3/16 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233913 |
| 1/4-20*1/4 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233915 |
| 1/4-20*5/16 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233917 |
| 1/4-20*3/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233920 |
| 1/4-20*1/2 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233924 |
| 1/4-20*5/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233928 |
| 1/4-20*3/4 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233931 |
| 1/4-20*1 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233934 |
304 stainless steel / 5/16-18 — 7 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| 5/16-18*1/4 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233939 |
| 5/16-18*5/16 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233943 |
| 5/16-18*3/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233946 |
| 5/16-18*1/2 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233950 |
| 5/16-18*5/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233952 |
| 5/16-18*3/4 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233956 |
| 5/16-18*1 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233960 |
304 stainless steel / 3/8-16 — 6 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| 3/8-16*5/16 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233963 |
| 3/8-16*3/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233965 |
| 3/8-16*1/2 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233968 |
| 3/8-16*5/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233970 |
| 3/8-16*3/4 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233971 |
| 3/8-16*1 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233973 |
304 stainless steel / 1/2-13 — 5 catalogue items
| Catalogue size |
Thread / version |
Marking |
Item reference |
| 1/2-13*3/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233976 |
| 1/2-13*1/2 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233978 |
| 1/2-13*5/8 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233982 |
| 1/2-13*3/4 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233985 |
| 1/2-13*1 |
Full thread; finish not stated; Flat point; thread class and hardness not stated |
Unmarked |
233988 |
Request a quotation
Send the item reference, quantity, delivery country and any drawing or inspection requirements. Items available in Dongming stock can usually be dispatched in around 3 days, subject to stock and order confirmation.
