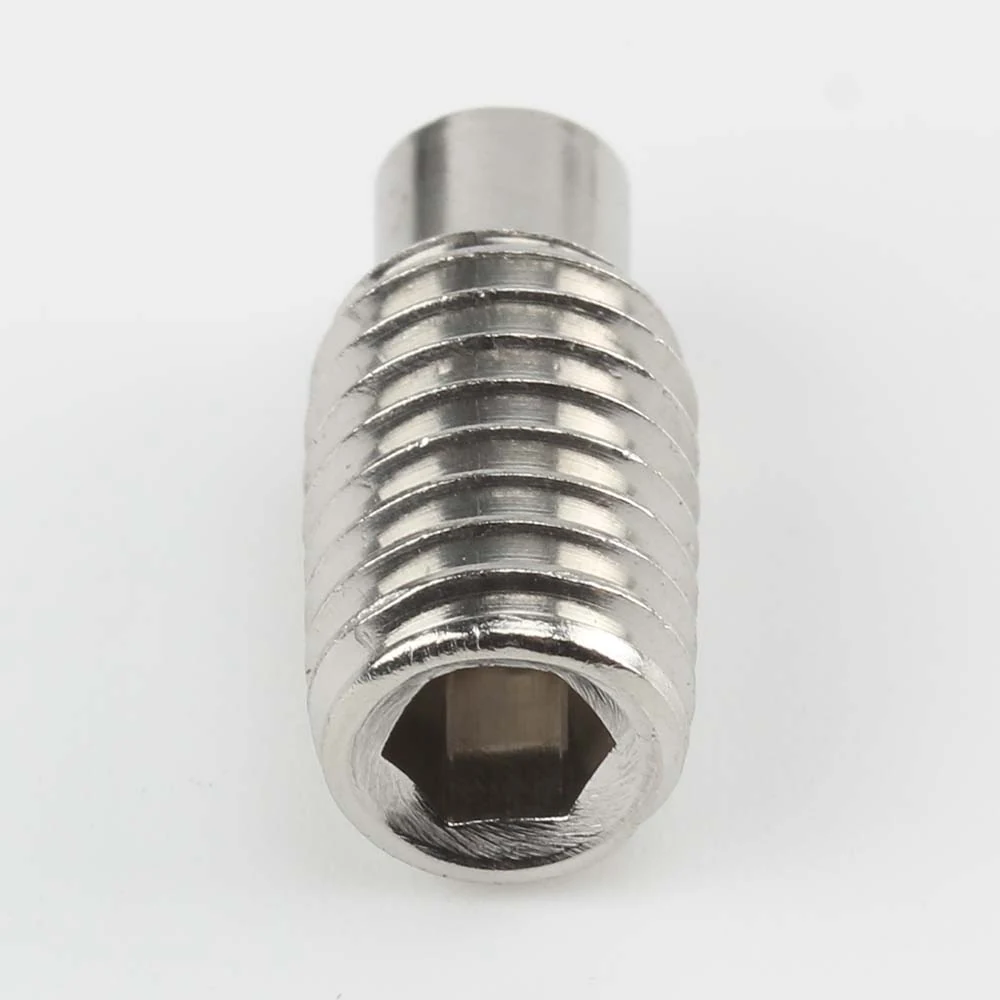

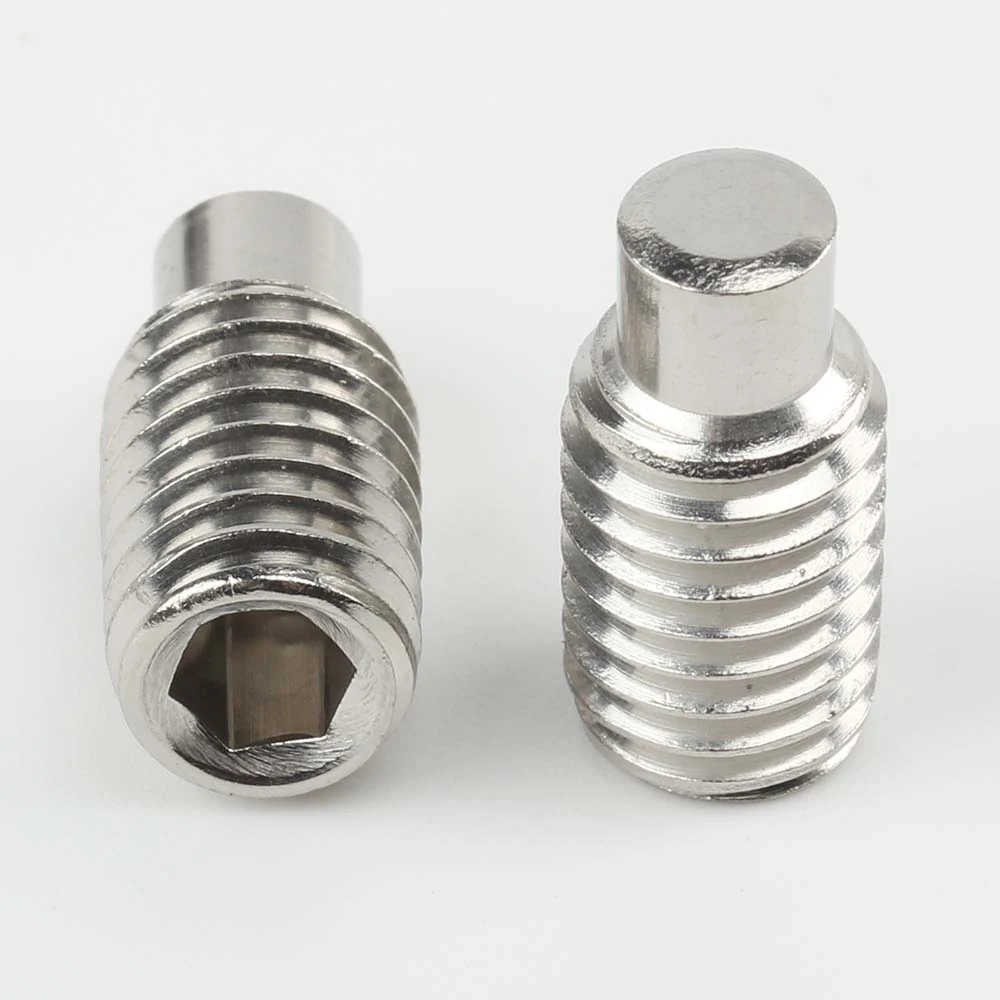

Find Your DIN 915 Hex Socket Dog Point Set Screws

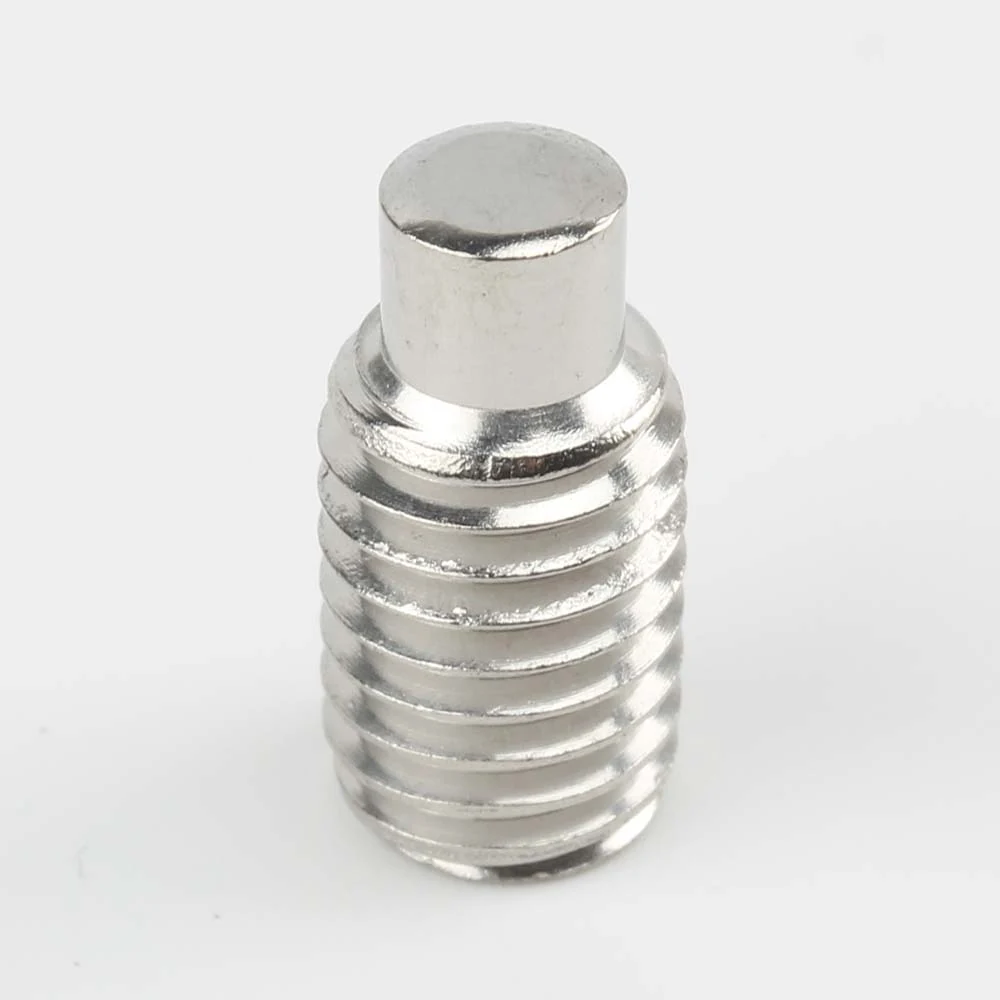

Dog point. Compare the exact material, diameter, pitch and length combinations below. All dimensions are in millimetres.
Open a material group to view sizes. On mobile, swipe the table sideways.
304 Stainless Steel · Standard catalogue version · 73 catalogue items
| Thread diameter | Pitch (mm) | Thread / finish | Available lengths (mm) |
|---|---|---|---|
| M3 | 0.5 | Full thread Unmarked |
3 · 4 · 5 · 6 · 8 · 10 · 12 · 16 · 20 |
| M4 | 0.7 | Full thread Unmarked |
4 · 5 · 6 · 8 · 10 · 12 · 16 · 20 · 25 · 30 |
| M5 | 0.8 | Full thread Unmarked |
5 · 6 · 8 · 10 · 12 · 16 · 20 · 25 · 30 · 35 · 40 |
| M6 | 1 | Full thread Unmarked |
8 · 10 · 12 · 20 · 25 · 30 · 35 · 40 · 45 · 50 |
| M6 | 1 | Full thread / Bright finish Unmarked |
6 · 16 |
| M8 | 1.25 | Full thread Unmarked |
8 · 10 · 12 · 16 · 20 · 25 · 30 · 35 · 40 · 45 · 50 |
| M10 | 1.5 | Full thread Unmarked |
10 · 12 · 16 · 20 · 25 · 30 · 35 · 40 · 45 · 50 |
| M12 | 1.75 | Full thread Unmarked |
10 · 12 · 16 · 20 · 25 · 30 · 35 · 40 · 45 · 50 |
Quotation and Dispatch
Items available in Tongming stock can usually be dispatched in around 3 days. Stock, material documentation and dispatch timing are confirmed with your quotation.
Send the standard, material, diameter, pitch, length and quantity. Attach a drawing for special tolerances or inspection requirements.
