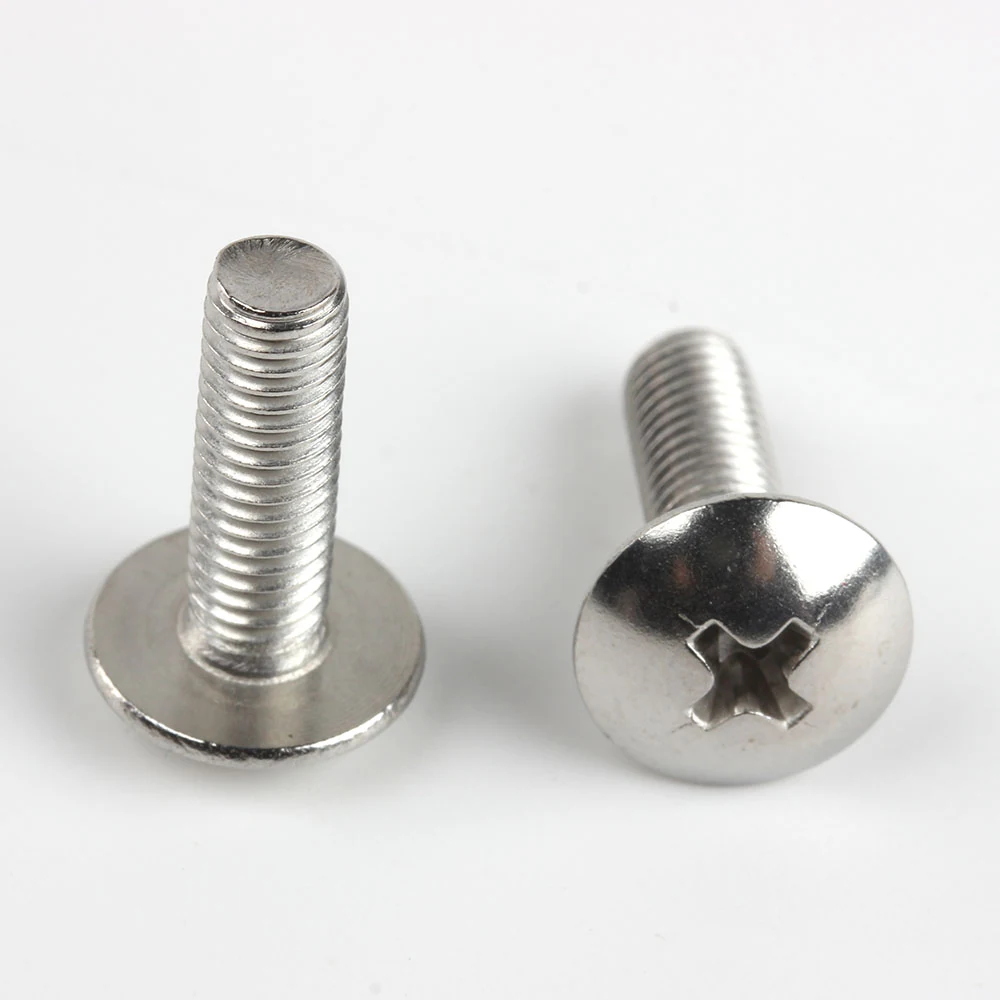

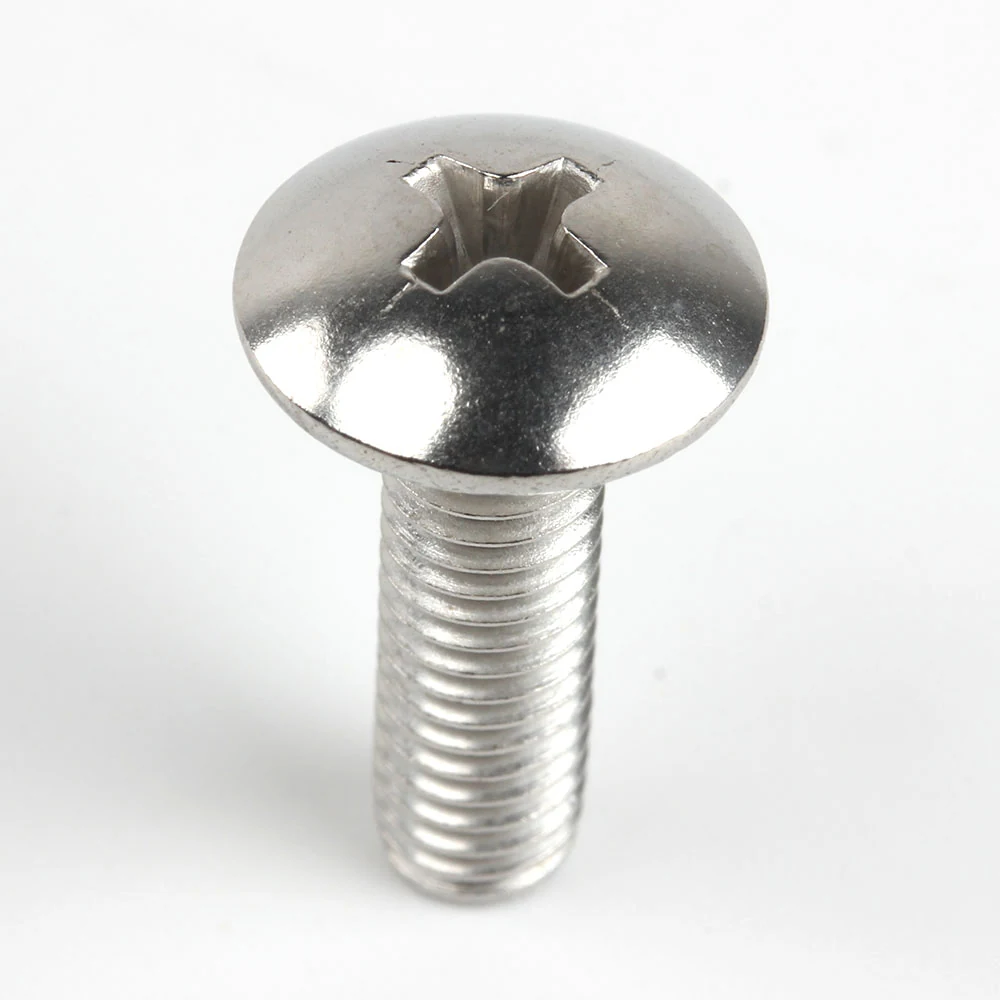

ANSI/ASME B18.6.3 Fine-Thread Cross-Recessed Truss Head Screws
304 stainless steel inch-series cross-recessed truss head machine screws. Compare 15 #10-32 fine-thread catalogue references.
Selection notes
All listed items use #10-32 fine thread with a truss head, cross recess and full thread. Choose the exact catalogue length and item reference. Bright-cleaned finish is stated; thread tolerance class is not. Confirm head dimensions and the accepted standard edition against the drawing.
The supplier uses P, F and T suffixes to identify head styles. The catalogue reference is ANSI/ASME B18.6.3; confirm the required edition and product drawing when enquiring.
Catalogue specifications
Expand a material and thread-size group to compare lengths, thread coverage, finish and item references. Sizes retain the supplier notation. Availability is confirmed when quoting.
304 stainless steel / 10#-32 — 15 catalogue items
| Catalogue size | Thread / version | Marking | Item reference |
|---|---|---|---|
| 10#-32 X 11/16 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381701 |
| 10#-32 X 1/4 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381689 |
| 10#-32 X 5/16 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381696 |
| 10#-32 X 3/8 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381693 |
| 10#-32 X 1/2 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381688 |
| 10#-32 X 5/8 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381695 |
| 10#-32 X 3/4 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381692 |
| 10#-32 X 7/8 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381698 |
| 10#-32 X 1" | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381687 |
| 10#-32 X 1-1/8 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381699 |
| 10#-32 X 1-1/4 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381694 |
| 10#-32 X 1-3/8 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381700 |
| 10#-32 X 1-1/2 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381691 |
| 10#-32 X 1-3/4 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381697 |
| 10#-32 X 2" | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381690 |
Request a quotation
Send the item reference, quantity, delivery country and any drawing or inspection requirements. Items available in Dongming stock can usually be dispatched in around 3 days, subject to stock and order confirmation.
