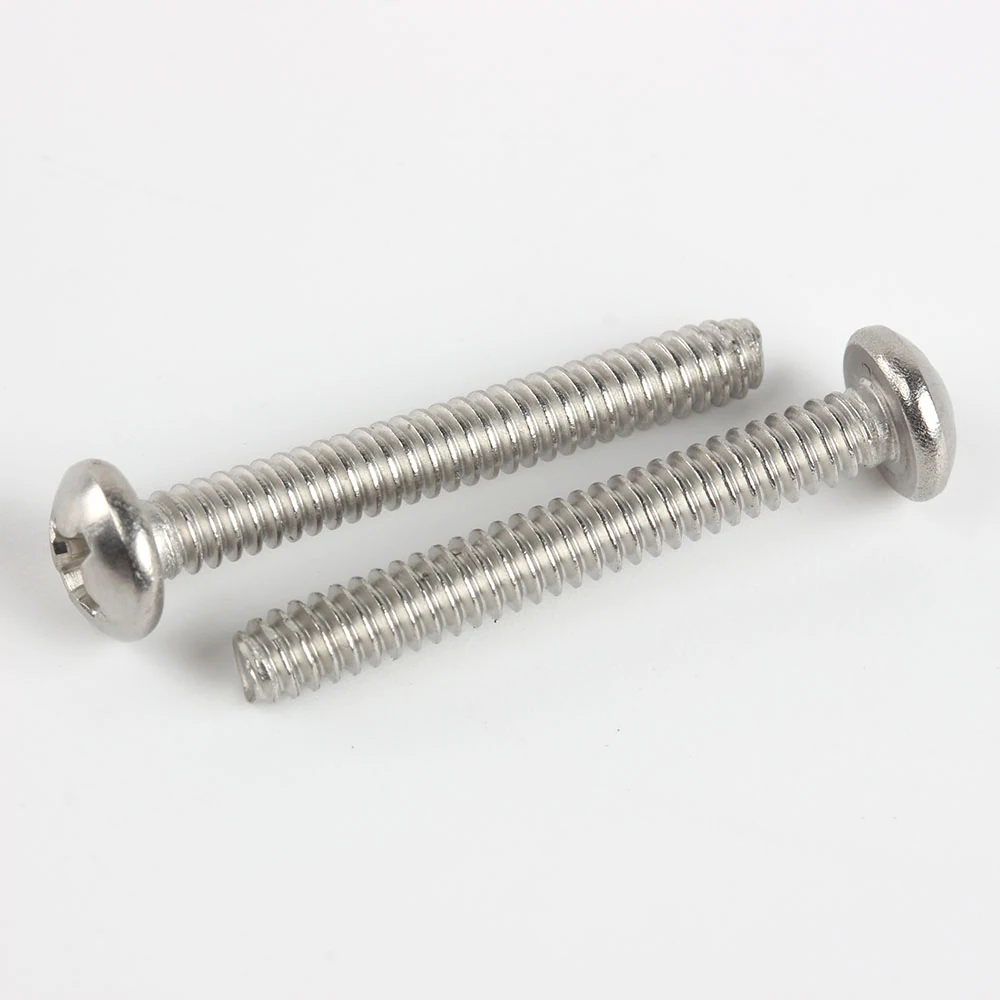

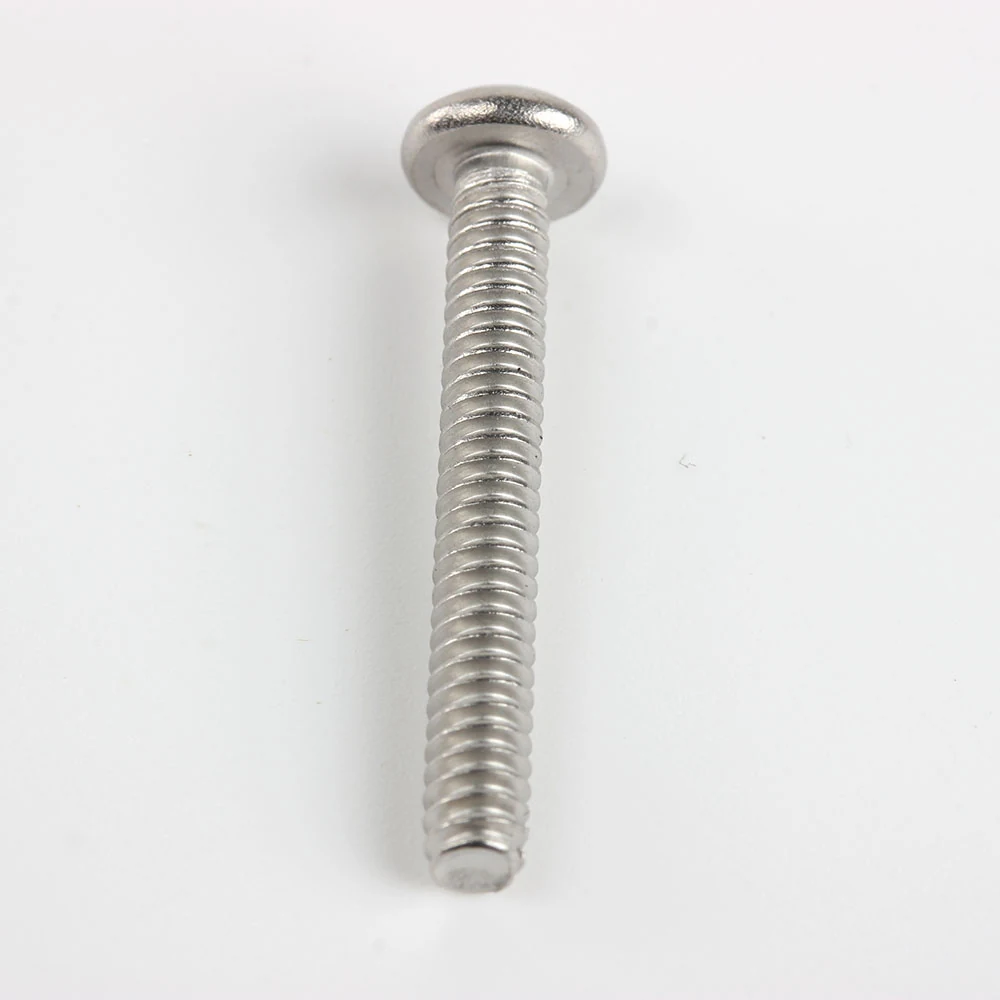

ANSI/ASME B18.6.3 Fine-Thread Cross-Recessed Pan Head Screws
304 stainless steel inch-series cross-recessed pan head machine screws. Compare 14 #10-32 fine-thread catalogue references.
Selection notes
Specify #10-32 fine thread, the pan head, cross recess and exact catalogue length. All source rows state full thread and bright-cleaned finish. Thread tolerance class is not stated; confirm it with the required drawing and standard edition.
The supplier uses P, F and T suffixes to identify head styles. The catalogue reference is ANSI/ASME B18.6.3; confirm the required edition and product drawing when enquiring.
Catalogue specifications
Expand a material and thread-size group to compare lengths, thread coverage, finish and item references. Sizes retain the supplier notation. Availability is confirmed when quoting.
304 stainless steel / 10#-32 — 14 catalogue items
| Catalogue size | Thread / version | Marking | Item reference |
|---|---|---|---|
| 10#-32 X 1/4 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381675 |
| 10#-32 X 5/16 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381682 |
| 10#-32 X 3/8 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381679 |
| 10#-32 X 1/2 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381674 |
| 10#-32 X 5/8 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381681 |
| 10#-32 X 3/4 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381678 |
| 10#-32 X 7/8 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381684 |
| 10#-32 X 1" | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381673 |
| 10#-32 X 1-1/8 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381685 |
| 10#-32 X 1-1/4 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381680 |
| 10#-32 X 1-3/8 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381686 |
| 10#-32 X 1-1/2 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381677 |
| 10#-32 X 1-3/4 | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381683 |
| 10#-32 X 2" | Full thread; bright-cleaned finish; thread class not stated; fine thread | Unmarked | 381676 |
Request a quotation
Send the item reference, quantity, delivery country and any drawing or inspection requirements. Items available in Dongming stock can usually be dispatched in around 3 days, subject to stock and order confirmation.
