Find Your DIN 7985 Pan Head Screw Size

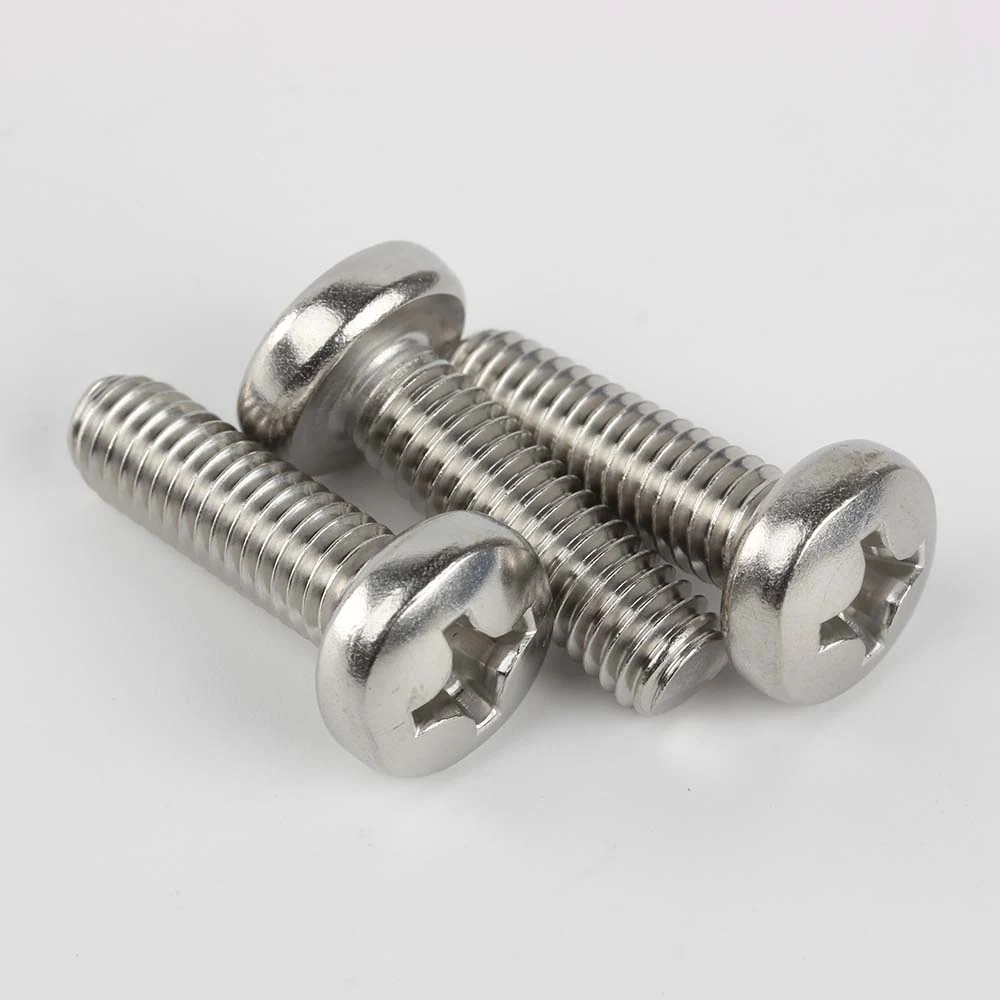

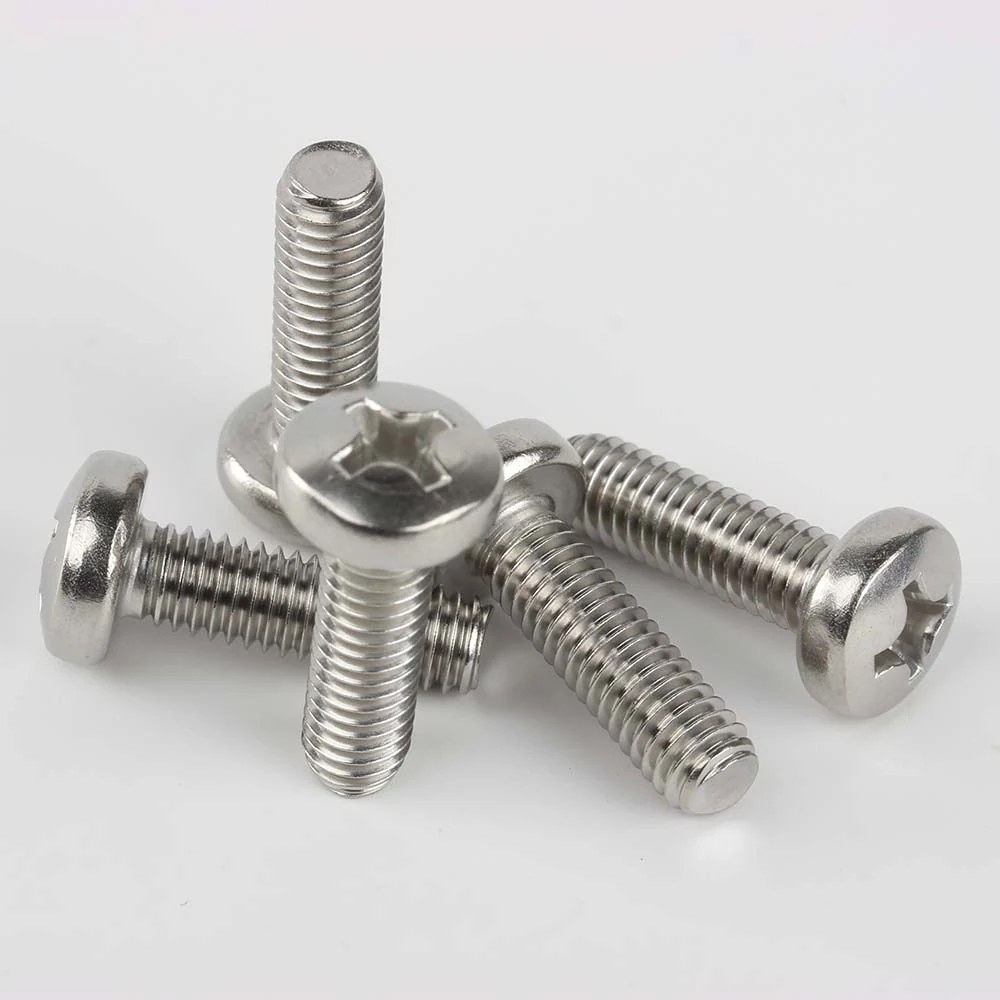

Phillips pan head machine screws with an H-type cross recess and full thread. Compare the listed material, thread diameter, pitch and length combinations below.
All dimensions are in millimetres. Open a material group, then choose the diameter, pitch and length from the same row. On mobile, swipe the table sideways to view every column.
304 Stainless Steel · 158 catalogue items
| Thread diameter | Pitch (mm) | Catalogue version | Listed lengths (mm) |
|---|---|---|---|
| M2 | 0.4 | H-type · Class 70 Full thread · Unmarked |
3 · 4 · 5 · 6 · 8 · 10 · 12 · 14 · 16 · 18 · 20 · 22 · 25 |
| M2.5 | 0.45 | H-type · Class 70 Full thread · Unmarked |
3 · 4 · 5 · 6 · 8 · 10 · 12 · 14 · 16 · 18 · 20 · 22 · 25 · 30 |
| M3 | 0.5 | H-type · Class 70 Full thread · Unmarked |
4 · 5 · 6 · 8 · 10 · 12 · 14 · 16 · 18 · 20 · 22 · 25 · 30 · 35 · 40 · 45 · 50 |
| M4 | 0.7 | H-type · Class 70 Full thread · Unmarked |
5 · 6 · 8 · 10 · 12 · 14 · 16 · 18 · 20 · 22 · 25 · 28 · 30 · 35 · 40 · 45 · 50 · 55 · 60 · 65 · 70 · 75 · 80 |
| M5 | 0.8 | H-type · Class 70 Full thread · Unmarked |
6 · 8 · 10 · 12 · 14 · 16 · 18 · 20 · 25 · 28 · 30 · 35 · 40 · 45 · 50 · 55 · 60 · 65 · 75 · 80 · 85 · 90 · 95 · 100 |
| M5 | Confirm with quote | H-type · Class 70 Full thread · Unmarked |
70 |
| M6 | 1 | H-type · Class 70 Full thread · Unmarked |
8 · 10 · 12 · 14 · 16 · 18 · 20 · 25 · 30 · 35 · 40 · 45 · 50 · 55 · 60 · 65 · 70 · 75 · 80 · 85 · 90 · 95 · 100 |
| M8 | 1.25 | H-type · Class 70 Full thread · Unmarked |
10 · 12 · 14 · 16 · 20 · 25 · 30 · 35 · 40 · 45 · 50 · 55 · 60 · 65 · 70 · 75 · 80 · 85 · 90 · 95 · 100 |
| M10 | 1.5 | H-type · Class 70 Full thread · Unmarked |
12 · 14 · 16 · 18 · 20 · 22 · 25 · 30 · 35 · 40 · 45 · 50 · 55 · 60 · 65 · 70 · 75 · 80 · 85 · 90 · 95 · 100 |
316 Stainless Steel · 1 catalogue item
| Thread diameter | Pitch (mm) | Catalogue version | Listed lengths (mm) |
|---|---|---|---|
| M6 | 1 | H-type · Class 70 Full thread · Unmarked |
16 |
Select the Right Specification
The current catalogue lists 304 stainless steel across M2 to M10, while the listed 316 option is M6 × 1 × 16 mm. Each size is shown only in its corresponding material group.
The 304 M5 × 70 mm item is listed without a pitch value. Its pitch must be confirmed with your quotation. Class 70 is retained from the catalogue description; confirm the required material and mechanical documentation for your selected item.
Fast Dispatch for Stocked Items
Items available in Tongming stock can usually be dispatched in around 3 days. Stock and dispatch timing are confirmed with your quotation.
Send Your Specification
Include DIN 7985, material, thread diameter × pitch, length, quantity and any drawing or inspection requirements. You can attach files to your enquiry.
Fastener supply experience since 2005. Nanjing Tongming provides experienced product coordination and competitive quotations for project and repeat purchasing.
Catalogue listing does not indicate live stock. Dimensions, material, marking and documentation are confirmed for the quoted item.
