DIN 967 Stainless Steel Cross-Recessed Pan Head Screws with Collar
304 stainless cross-recessed pan head screws with an integral collar from the supplier DIN 967 catalogue range. Compare 60 full-thread references by diameter, pitch and length.
Product overview
- Listed material: 304 stainless steel.

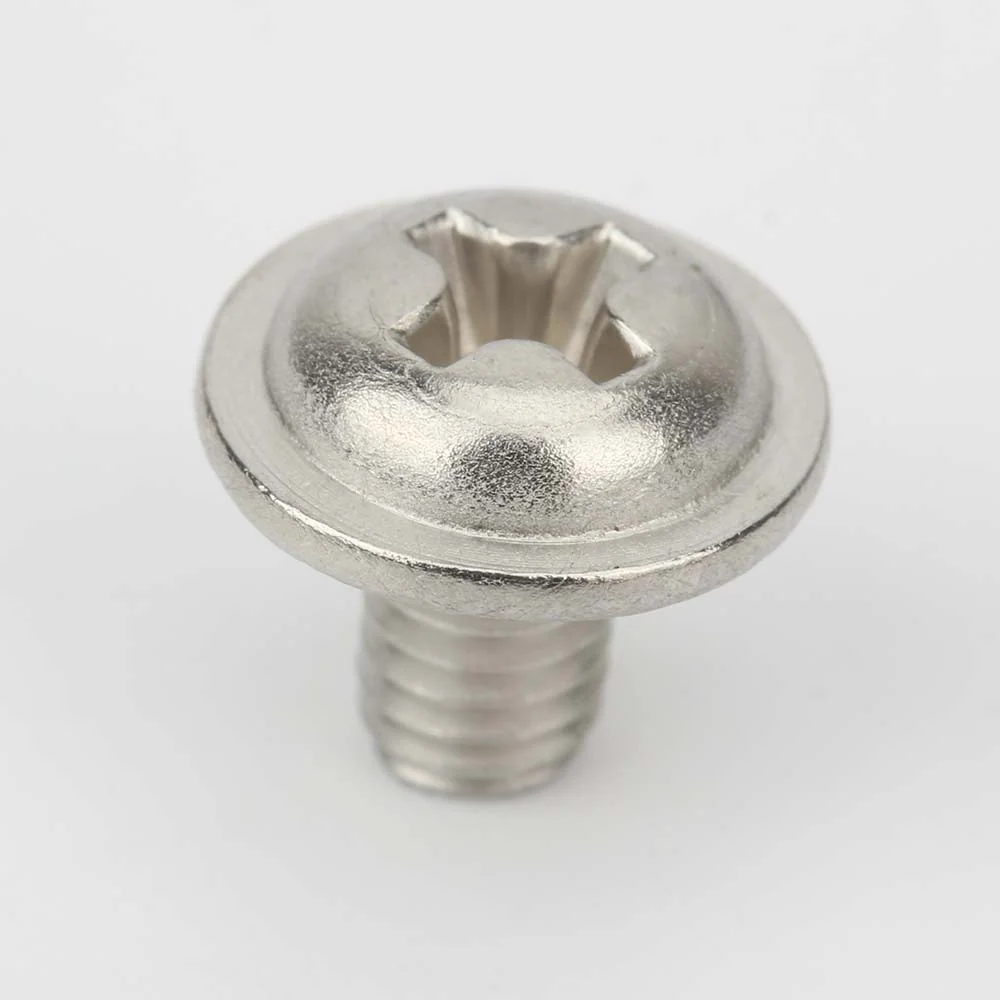

- Drive: cross recess; recess type and size require drawing confirmation.

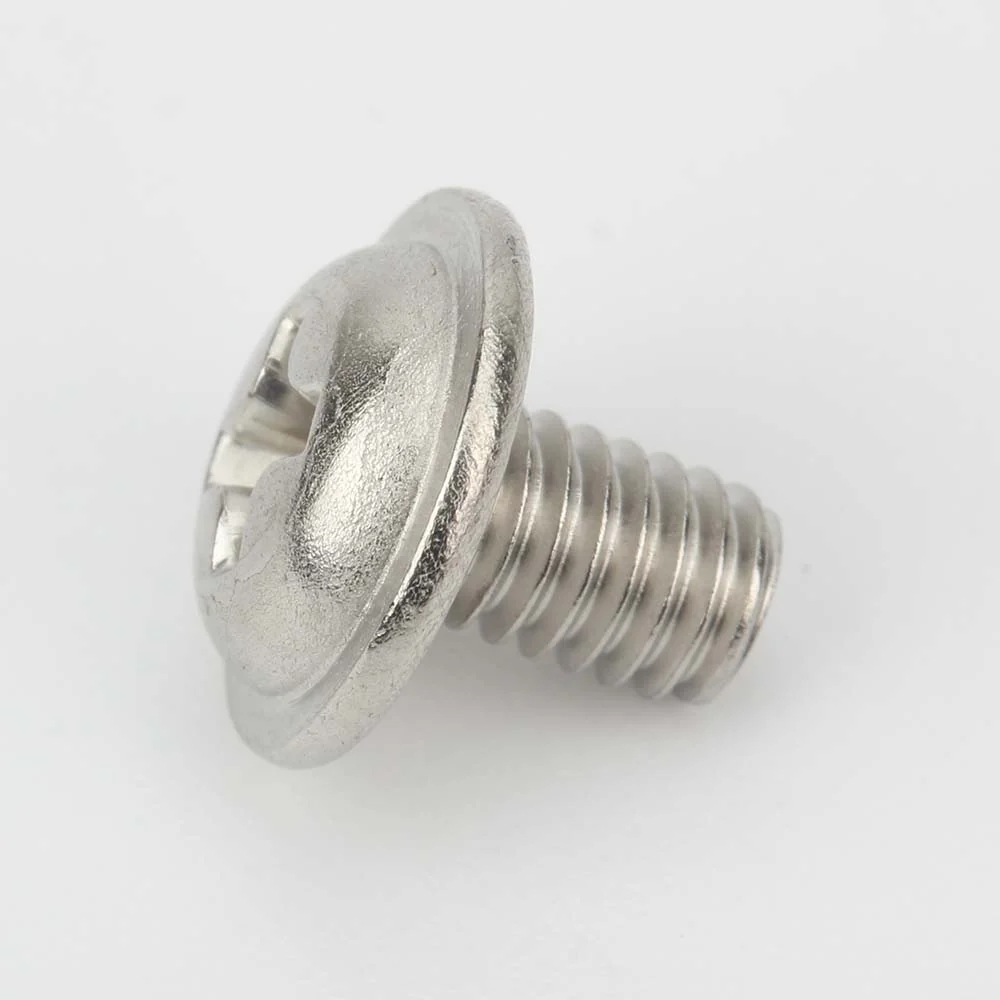

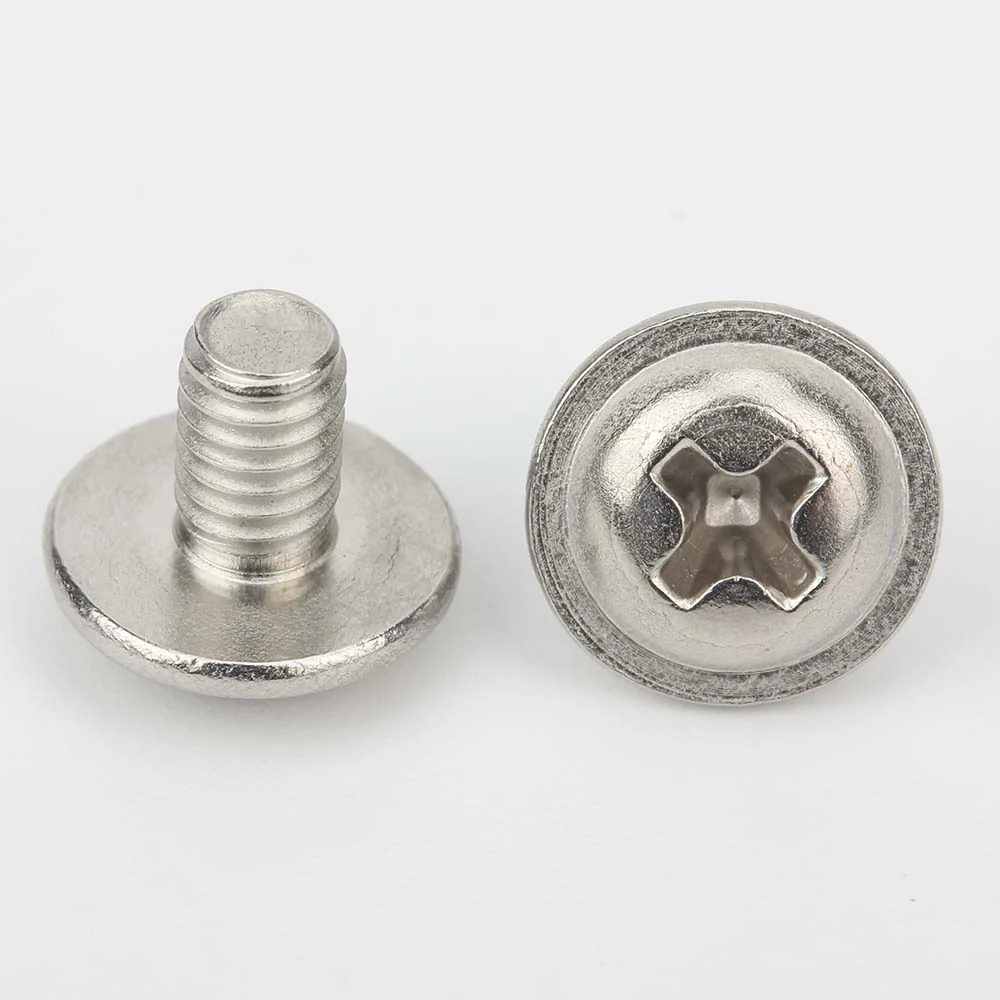

- Head form: pan head with an integral collar.
- Thread form: full thread.
- Source marking: unmarked; no property class is inferred.
- Thread sizes: M3, M4, M5, M6.
The collar is part of the head form, not a separate washer assembly. Confirm collar diameter, head height, recess details, required standard edition and inspection documents against your drawing. Length values are retained from the source size field; confirm units before ordering. The captured records do not specify a surface treatment for this range.
Catalogue specifications
Open a thread-size group to compare pitches, lengths and item references. Different references with the same nominal size remain separate for accurate quotation. Catalogue entries do not confirm current stock.
M3 — 18 catalogue items
| Thread | Pitch (mm) | Length (source value) | Item reference |
|---|---|---|---|
| M3 | 0.5 | 4 | 265402 |
| M3 | 0.5 | 5 | 266430 |
| M3 | 0.5 | 5 | 319866 |
| M3 | 0.5 | 6 | 266431 |
| M3 | 0.5 | 8 | 266432 |
| M3 | 0.5 | 10 | 266433 |
| M3 | 0.5 | 12 | 266435 |
| M3 | 0.5 | 14 | 266436 |
| M3 | 0.5 | 16 | 266437 |
| M3 | 0.5 | 18 | 266438 |
| M3 | 0.5 | 20 | 266439 |
| M3 | 0.5 | 22 | 266440 |
| M3 | 0.5 | 25 | 266441 |
| M3 | 0.5 | 30 | 266442 |
| M3 | 0.5 | 35 | 266443 |
| M3 | 0.5 | 40 | 266444 |
| M3 | 0.5 | 45 | 266445 |
| M3 | 0.5 | 50 | 266446 |
M4 — 16 catalogue items
| Thread | Pitch (mm) | Length (source value) | Item reference |
|---|---|---|---|
| M4 | 0.7 | 5 | 266458 |
| M4 | 0.7 | 6 | 266459 |
| M4 | 0.7 | 8 | 266460 |
| M4 | 0.7 | 10 | 266461 |
| M4 | 0.7 | 12 | 266462 |
| M4 | 0.7 | 14 | 266463 |
| M4 | 0.7 | 16 | 266464 |
| M4 | 0.7 | 18 | 266465 |
| M4 | 0.7 | 20 | 266466 |
| M4 | 0.7 | 22 | 266467 |
| M4 | 0.7 | 25 | 266468 |
| M4 | 0.7 | 30 | 266469 |
| M4 | 0.7 | 35 | 266470 |
| M4 | 0.7 | 40 | 266471 |
| M4 | 0.7 | 45 | 266472 |
| M4 | 0.7 | 50 | 266473 |
M5 — 14 catalogue items
| Thread | Pitch (mm) | Length (source value) | Item reference |
|---|---|---|---|
| M5 | 0.8 | 6 | 266474 |
| M5 | 0.8 | 8 | 266483 |
| M5 | 0.8 | 10 | 266484 |
| M5 | 0.8 | 12 | 266485 |
| M5 | 0.8 | 14 | 266486 |
| M5 | 0.8 | 16 | 266487 |
| M5 | 0.8 | 18 | 266488 |
| M5 | 0.8 | 20 | 266489 |
| M5 | 0.8 | 25 | 266490 |
| M5 | 0.8 | 30 | 266491 |
| M5 | 0.8 | 35 | 266492 |
| M5 | 0.8 | 40 | 266493 |
| M5 | 0.8 | 45 | 266494 |
| M5 | 0.8 | 50 | 266495 |
M6 — 12 catalogue items
| Thread | Pitch (mm) | Length (source value) | Item reference |
|---|---|---|---|
| M6 | 1 | 10 | 266497 |
| M6 | 1 | 12 | 266498 |
| M6 | 1 | 14 | 266499 |
| M6 | 1 | 16 | 266500 |
| M6 | 1 | 18 | 266501 |
| M6 | 1 | 20 | 266502 |
| M6 | 1 | 25 | 266503 |
| M6 | 1 | 30 | 266504 |
| M6 | 1 | 35 | 266505 |
| M6 | 1 | 40 | 266506 |
| M6 | 1 | 45 | 266507 |
| M6 | 1 | 50 | 266508 |
Request a quotation
Send the item reference, quantity, drawing and delivery destination. For items available in Dongming stock, dispatch can usually be arranged in around 3 days, subject to stock and order confirmation.
