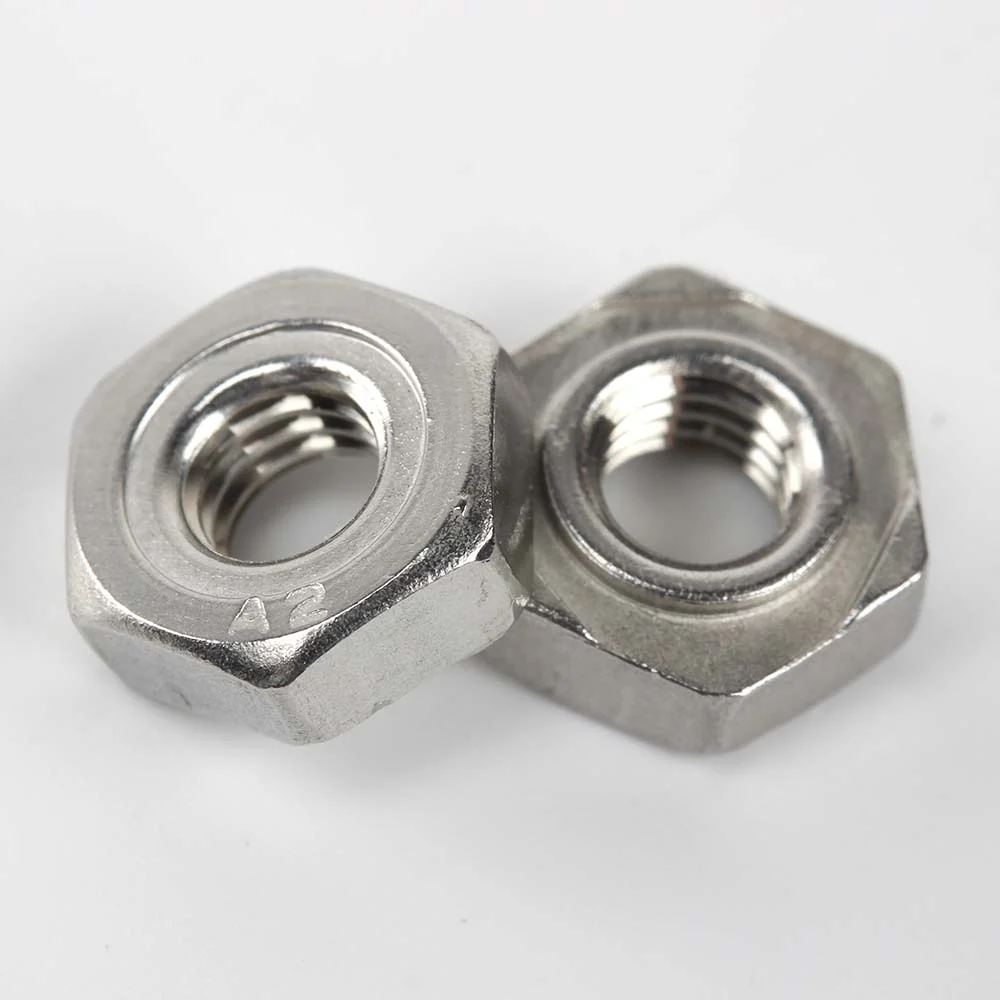

DIN 929 Stainless Steel Hexagon Weld Nuts
Hexagon weld nut for enquiries requiring an exact thread size and supplier item reference. The listed catalogue range includes 304 and 316 stainless steel and M4, M5, M6, M8, M10, M12 threads.
Product details

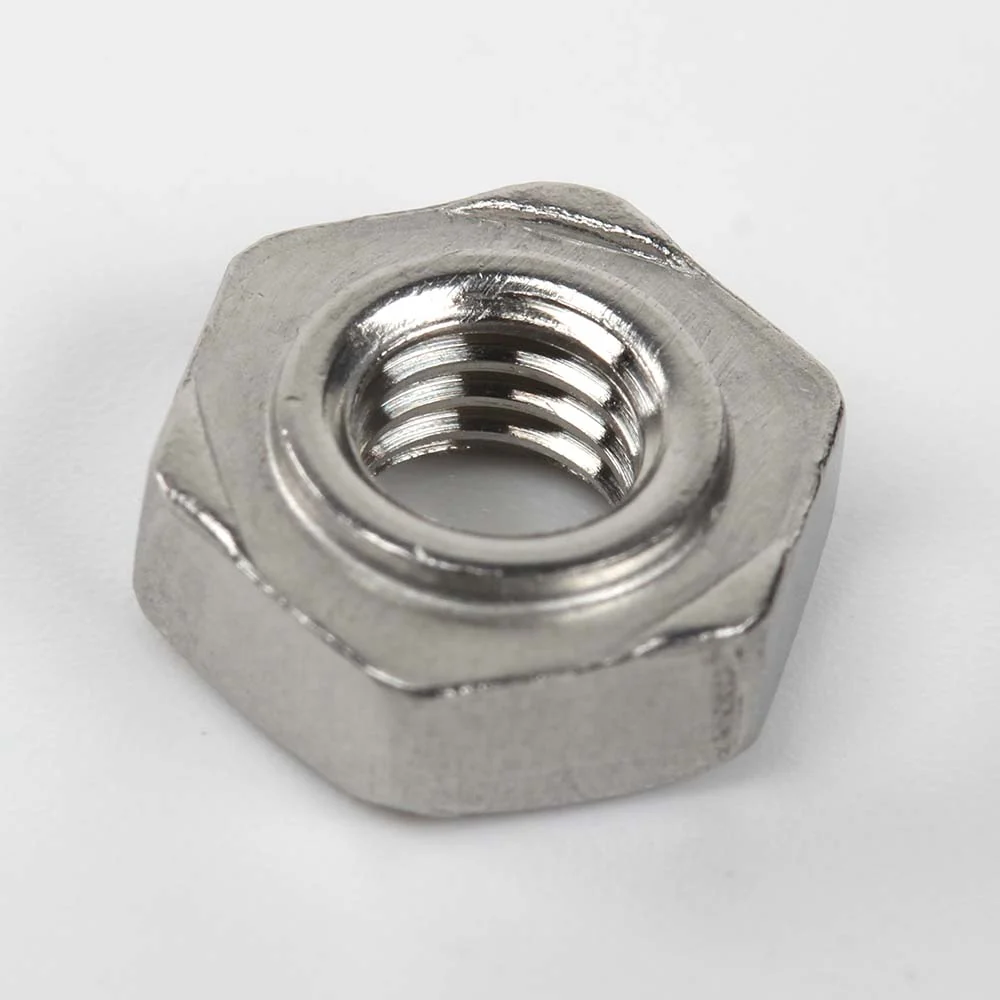

- Style: Hexagon weld nut.
- Catalogue reference: DIN 929.
- Source range: 11 individual catalogue records.
The standard number identifies the supplier catalogue reference. Confirm the required edition and dimensional requirements with your enquiry. Match the nut geometry, mating thread and joining process to your drawing. Material suitability and any welding requirements must be checked for the actual application.
Available catalogue specifications

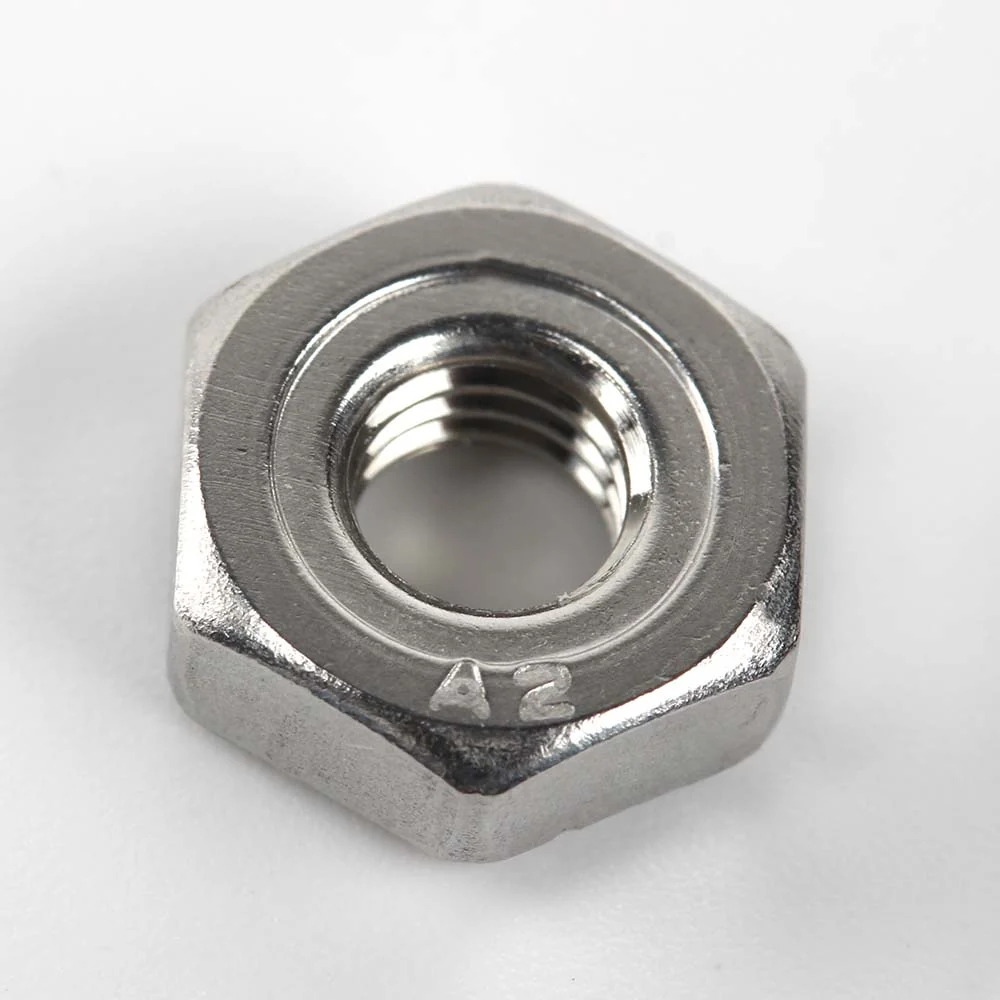

Markings are copied from the source record. A2 or A4 markings are not treated as a confirmed property class. Separate item references are retained where the size is the same.
| Material | Thread | Pitch (mm) | Marking | Item reference |
|---|---|---|---|---|
| 304 stainless steel | M4 | 0.7 | Unmarked | 118807 |
| 304 stainless steel | M5 | 0.8 | A2 | 118981 |
| 304 stainless steel | M6 | 1.0 | A2 | 119014 |
| 304 stainless steel | M6 | 1.0 | A2 TonG | 224441 |
| 304 stainless steel | M8 | 1.25 | A2 TonG | 119031 |
| 304 stainless steel | M10 | 1.5 | A2 | 119035 |
| 304 stainless steel | M12 | 1.75 | A2 | 119040 |
| 316 stainless steel | M6 | 1.0 | A4 TonG | 224443 |
| 316 stainless steel | M8 | 1.25 | A4 TonG | 245770 |
| 316 stainless steel | M10 | 1.5 | A4 | 204986 |
| 316 stainless steel | M12 | 1.75 | A4 | 204987 |
Request a quotation
Send the thread size, material, supplier item reference and quantity. Include a drawing when the projection shape, panel fit or dimensional tolerances are important. Items available in Tongming stock can usually be dispatched in around 3 days; stock, documentation and timing are confirmed with the quotation.
