Choose Your Flat and Spring Washer Assembly

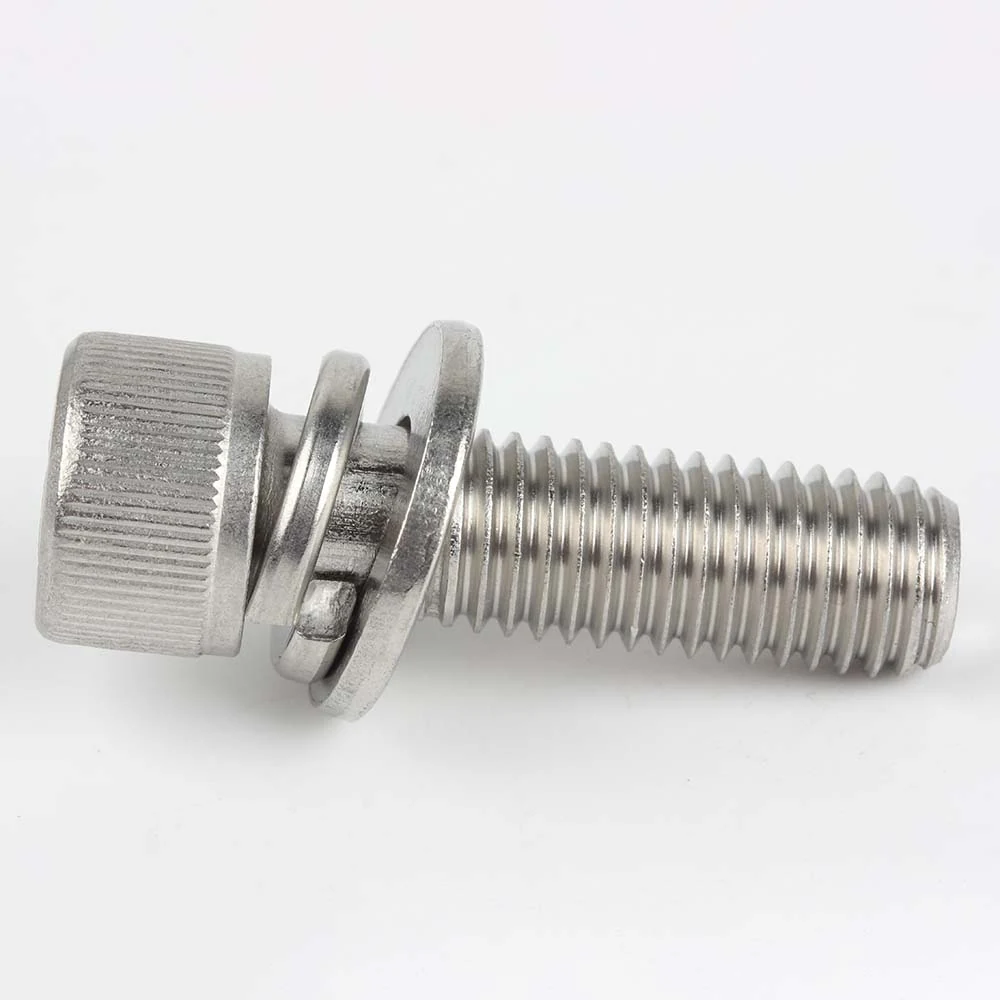

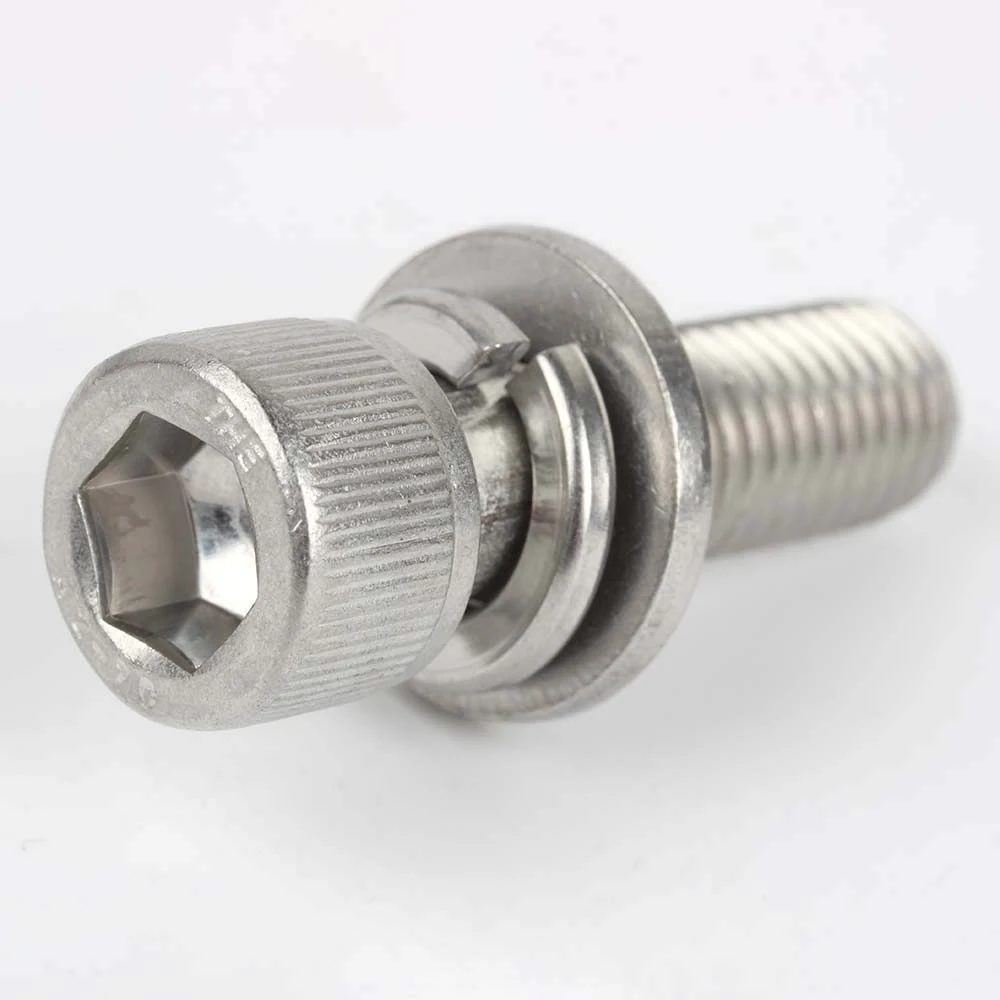

Socket head screws assembled with a flat washer and a spring washer. The supplier lists 218 items in 304 and 316 stainless steel material groups.
Pitch and screw length are in millimetres. Match the material, thread, length, thread coverage and marking in the same row. On mobile, swipe the table sideways to view all columns.
304 Stainless Steel · 147 catalogue items
| Metric thread | Pitch (mm) | Available lengths (mm) | Thread coverage | Listed marking |
|---|---|---|---|---|
| M3 | 0.5 | 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 30 | Full thread | Unmarked |
| M4 | 0.7 | 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50 | Full thread | Unmarked |
| M5 | 0.8 | 8, 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80 | Full thread | A2-70 THE |
| M6 | 1.0 | 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120, 130, 140, 150 | Full thread | A2-70 THE |
| M6 | 1.0 | 160, 170, 180, 190, 200 | Reduced shank / partial thread | A2-70 THE |
| M8 | 1.25 | 50 | Not specified | A2-70 THE |
| M8 | 1.25 | 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120, 130, 140, 150 | Full thread | A2-70 THE |
| M8 | 1.25 | 160, 170, 180, 190, 200 | Reduced shank / partial thread | A2-70 THE |
| M10 | 1.5 | 16, 18, 20, 22, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120, 130, 140, 150 | Full thread | A2-70 THE |
| M12 | 1.75 | 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70 | Full thread | A2-70 THE |
316 Stainless Steel · 71 catalogue items
| Metric thread | Pitch (mm) | Available lengths (mm) | Thread coverage | Listed marking |
|---|---|---|---|---|
| M3 | 0.5 | 6, 8, 10, 12, 14, 16, 18, 20, 25, 30 | Full thread | Unmarked |
| M4 | 0.7 | 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40 | Full thread | Unmarked |
| M5 | 0.8 | 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50 | Full thread | A4-70 THE |
| M6 | 1.0 | 10 | Not specified | Unmarked |
| M6 | 1.0 | 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50 | Full thread | A4-70 THE |
| M6 | 1.0 | 20, 30 | Full thread | A4-80 THE |
| M8 | 1.25 | 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50 | Full thread | A4-70 THE |
| M10 | 1.5 | 18, 20, 25, 30, 35, 40, 45, 50 | Full thread | A4-70 THE |
Match the Complete Assembly
DIN 912 is the supplier’s screw reference. Confirm the screw drawing and both washers’ dimensions and material requirements for your selected assembly. A separate assembly standard is not implied.
Full-thread and reduced-shank partial-thread versions are shown separately. The catalogue name for the 160–200 mm reduced-shank items includes a 30 mm note; confirm the actual threaded length against the drawing. Thread coverage is not stated for 304 M8 × 50 (174883) and 316 M6 × 10 (305365).
Markings are reproduced as listed, including THE A2-70, A4-70 and A4-80 options. Unmarked items are shown explicitly. Large-flat-washer, adhesive-patch and fully inspected catalogue families require a separate match.
Fast Dispatch for Stocked Items
Items available in Tongming stock can usually be dispatched in around 3 days. Stock and dispatch timing are confirmed with your quotation.
Request an Assembly Quotation
Specify the flat-plus-spring washer combination, material, thread, pitch, screw length and quantity. Attach your assembly drawing or washer dimensions for an exact match.
Fastener supply experience since 2005. Nanjing Tongming provides experienced product coordination and competitive quotations for project and repeat purchasing.
Catalogue listing does not indicate live stock. Exact dimensions and documentation are confirmed for the quoted item.
