JIS B1180 Stainless Steel Hexagon Bolts without Washer Face
304 stainless steel hexagon bolts from the supplier JIS B1180 catalogue range, listed without a washer face. Full-thread and partial-thread versions are recorded separately; select the exact item reference rather than relying on diameter and length alone.
Product overview
- Listed material: 304 stainless steel.
- Thread sizes: M5, M6, M8, M10, M12, M14, M16, M20, M22, M24.
- Catalogue range: 390 item references, including 207 full-thread and 183 partial-thread entries.

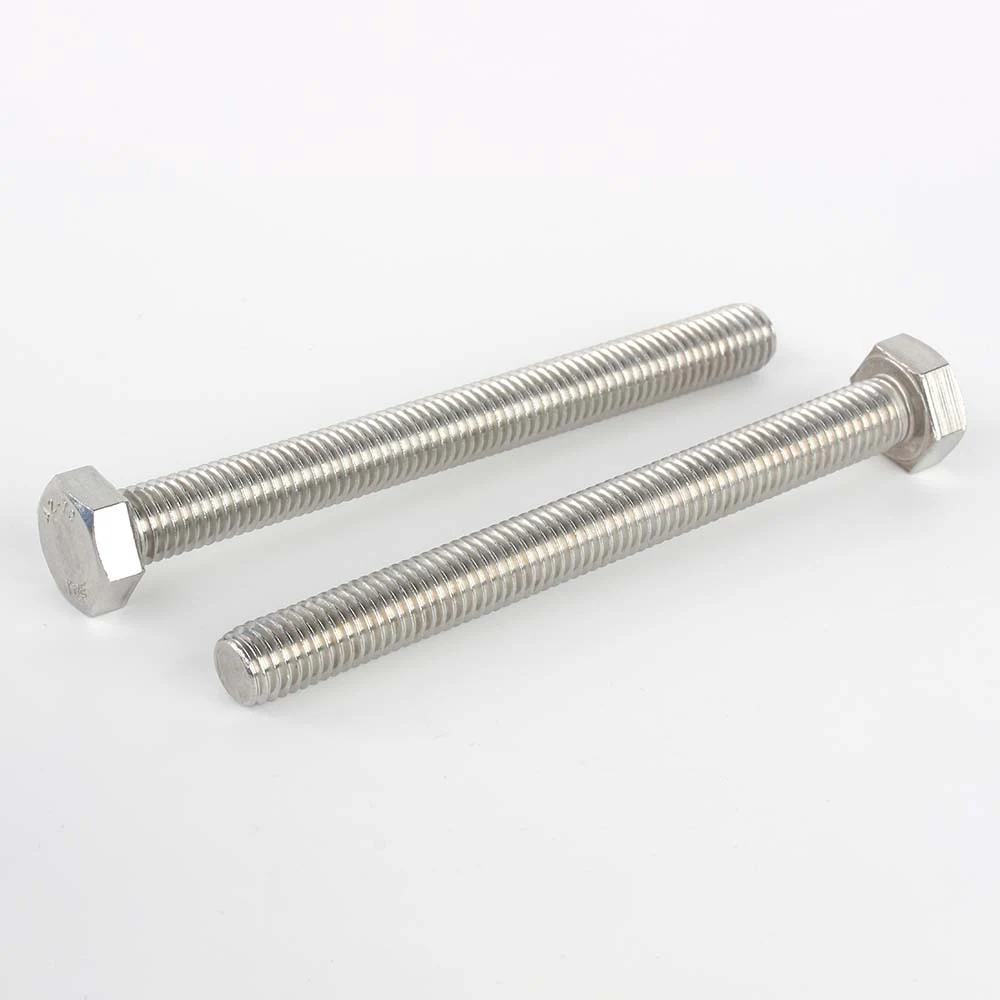

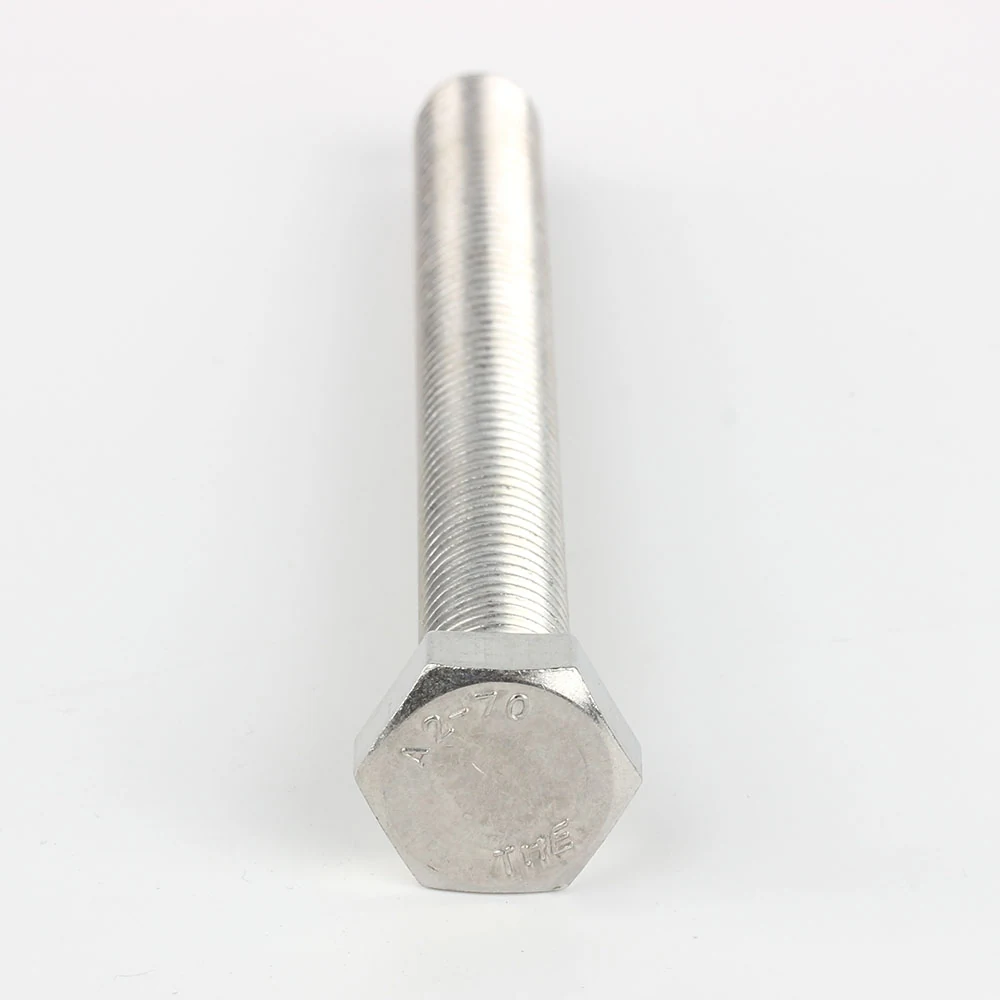

- Catalogue marking field: unmarked. The photographed full-thread sample shows THE/A2-70 head markings; confirm the required marking and property class when requesting a quotation. No property class is inferred for the catalogue range.
- Manufacturing: 30 entries specifically described as hot-forged; other entries have no manufacturing process stated.
Confirm head dimensions, thread length, required standard edition and inspection documents against your drawing. No separate washer is included. Length values are retained from the catalogue size field; confirm drawing units when ordering. References 8499 and 8506 contain an additional source dimension of 49, whose meaning must be confirmed against the drawing.
Catalogue specifications
Open a thread-size group to compare pitch, length, thread form and item reference. Catalogue listings do not confirm current stock.
M5 — 13 catalogue items
| Thread |
Pitch (mm) |
Length (source value) |
Thread form |
Manufacturing note |
Item reference |
| M5 |
0.8 |
10 |
Full thread |
Not specified |
7937 |
| M5 |
0.8 |
12 |
Full thread |
Not specified |
7938 |
| M5 |
0.8 |
16 |
Full thread |
Not specified |
7940 |
| M5 |
0.8 |
20 |
Full thread |
Not specified |
7941 |
| M5 |
0.8 |
25 |
Full thread |
Not specified |
7942 |
| M5 |
0.8 |
30 |
Full thread |
Not specified |
7943 |
| M5 |
0.8 |
35 |
Full thread |
Not specified |
7944 |
| M5 |
0.8 |
40 |
Full thread |
Not specified |
7945 |
| M5 |
0.8 |
45 |
Full thread |
Not specified |
7946 |
| M5 |
0.8 |
50 |
Full thread |
Not specified |
7947 |
| M5 |
0.8 |
55 |
Full thread |
Not specified |
105805 |
| M5 |
0.8 |
60 |
Full thread |
Not specified |
7948 |
| M5 |
0.8 |
65 |
Full thread |
Not specified |
120005 |
M6 — 41 catalogue items
| Thread |
Pitch (mm) |
Length (source value) |
Thread form |
Manufacturing note |
Item reference |
| M6 |
1 |
10 |
Full thread |
Not specified |
7995 |
| M6 |
1 |
12 |
Full thread |
Not specified |
7997 |
| M6 |
1 |
14 |
Full thread |
Not specified |
8000 |
| M6 |
1 |
15 |
Full thread |
Not specified |
8001 |
| M6 |
1 |
16 |
Full thread |
Not specified |
8002 |
| M6 |
1 |
18 |
Full thread |
Not specified |
8005 |
| M6 |
1 |
20 |
Full thread |
Not specified |
8007 |
| M6 |
1 |
25 |
Full thread |
Not specified |
8010 |
| M6 |
1 |
30 |
Full thread |
Not specified |
8012 |
| M6 |
1 |
35 |
Full thread |
Not specified |
8015 |
| M6 |
1 |
35 |
Partial thread |
Not specified |
8016 |
| M6 |
1 |
40 |
Full thread |
Not specified |
8019 |
| M6 |
1 |
40 |
Partial thread |
Not specified |
8020 |
| M6 |
1 |
45 |
Full thread |
Not specified |
8022 |
| M6 |
1 |
45 |
Partial thread |
Not specified |
8023 |
| M6 |
1 |
50 |
Full thread |
Not specified |
8025 |
| M6 |
1 |
50 |
Partial thread |
Not specified |
8026 |
| M6 |
1 |
55 |
Full thread |
Not specified |
8029 |
| M6 |
1 |
55 |
Partial thread |
Not specified |
8030 |
| M6 |
1 |
60 |
Full thread |
Not specified |
314466 |
| M6 |
1 |
60 |
Partial thread |
Not specified |
8034 |
| M6 |
1 |
65 |
Full thread |
Not specified |
8036 |
| M6 |
1 |
65 |
Partial thread |
Not specified |
8037 |
| M6 |
1 |
70 |
Full thread |
Not specified |
8038 |
| M6 |
1 |
70 |
Partial thread |
Not specified |
8039 |
| M6 |
1 |
75 |
Full thread |
Not specified |
8042 |
| M6 |
1 |
75 |
Partial thread |
Not specified |
8043 |
| M6 |
1 |
80 |
Full thread |
Not specified |
8044 |
| M6 |
1 |
80 |
Partial thread |
Not specified |
8045 |
| M6 |
1 |
85 |
Full thread |
Not specified |
105820 |
| M6 |
1 |
90 |
Full thread |
Not specified |
8048 |
| M6 |
1 |
90 |
Partial thread |
Not specified |
8049 |
| M6 |
1 |
95 |
Full thread |
Not specified |
105824 |
| M6 |
1 |
100 |
Full thread |
Not specified |
8051 |
| M6 |
1 |
100 |
Partial thread |
Not specified |
8052 |
| M6 |
1 |
110 |
Full thread |
Not specified |
120006 |
| M6 |
1 |
120 |
Full thread |
Not specified |
120007 |
| M6 |
1 |
130 |
Full thread |
Not specified |
120008 |
| M6 |
1 |
140 |
Full thread |
Not specified |
120009 |
| M6 |
1 |
150 |
Full thread |
Not specified |
120010 |
| M6 |
1 |
150 |
Partial thread |
Not specified |
120030 |
M8 — 47 catalogue items
| Thread |
Pitch (mm) |
Length (source value) |
Thread form |
Manufacturing note |
Item reference |
| M8 |
1.25 |
12 |
Full thread |
Not specified |
8085 |
| M8 |
1.25 |
15 |
Full thread |
Not specified |
8087 |
| M8 |
1.25 |
16 |
Full thread |
Not specified |
8092 |
| M8 |
1.25 |
18 |
Full thread |
Not specified |
8094 |
| M8 |
1.25 |
20 |
Full thread |
Not specified |
8096 |
| M8 |
1.25 |
22 |
Full thread |
Not specified |
8100 |
| M8 |
1.25 |
25 |
Full thread |
Not specified |
8103 |
| M8 |
1.25 |
30 |
Full thread |
Not specified |
8109 |
| M8 |
1.25 |
35 |
Full thread |
Not specified |
8114 |
| M8 |
1.25 |
35 |
Partial thread |
Not specified |
8115 |
| M8 |
1.25 |
40 |
Full thread |
Not specified |
8117 |
| M8 |
1.25 |
40 |
Partial thread |
Not specified |
8118 |
| M8 |
1.25 |
45 |
Full thread |
Not specified |
8120 |
| M8 |
1.25 |
45 |
Partial thread |
Not specified |
8121 |
| M8 |
1.25 |
50 |
Full thread |
Not specified |
8124 |
| M8 |
1.25 |
50 |
Partial thread |
Not specified |
8125 |
| M8 |
1.25 |
55 |
Full thread |
Not specified |
8128 |
| M8 |
1.25 |
55 |
Partial thread |
Not specified |
8129 |
| M8 |
1.25 |
60 |
Full thread |
Not specified |
8131 |
| M8 |
1.25 |
60 |
Partial thread |
Not specified |
8132 |
| M8 |
1.25 |
65 |
Full thread |
Not specified |
8135 |
| M8 |
1.25 |
65 |
Partial thread |
Not specified |
8136 |
| M8 |
1.25 |
70 |
Full thread |
Not specified |
8138 |
| M8 |
1.25 |
70 |
Partial thread |
Not specified |
8139 |
| M8 |
1.25 |
75 |
Full thread |
Not specified |
8141 |
| M8 |
1.25 |
75 |
Partial thread |
Not specified |
8142 |
| M8 |
1.25 |
80 |
Full thread |
Not specified |
314467 |
| M8 |
1.25 |
80 |
Partial thread |
Not specified |
314468 |
| M8 |
1.25 |
85 |
Full thread |
Not specified |
8147 |
| M8 |
1.25 |
85 |
Partial thread |
Not specified |
314469 |
| M8 |
1.25 |
85 |
Partial thread |
Not specified |
8148 |
| M8 |
1.25 |
90 |
Full thread |
Not specified |
8149 |
| M8 |
1.25 |
90 |
Partial thread |
Not specified |
8150 |
| M8 |
1.25 |
95 |
Full thread |
Not specified |
8153 |
| M8 |
1.25 |
95 |
Partial thread |
Not specified |
8154 |
| M8 |
1.25 |
100 |
Full thread |
Not specified |
314470 |
| M8 |
1.25 |
100 |
Partial thread |
Not specified |
314471 |
| M8 |
1.25 |
110 |
Full thread |
Not specified |
105831 |
| M8 |
1.25 |
110 |
Partial thread |
Not specified |
314472 |
| M8 |
1.25 |
120 |
Full thread |
Not specified |
105841 |
| M8 |
1.25 |
120 |
Partial thread |
Not specified |
8160 |
| M8 |
1.25 |
130 |
Full thread |
Not specified |
105843 |
| M8 |
1.25 |
130 |
Partial thread |
Not specified |
314473 |
| M8 |
1.25 |
140 |
Full thread |
Not specified |
105845 |
| M8 |
1.25 |
140 |
Partial thread |
Not specified |
314474 |
| M8 |
1.25 |
150 |
Full thread |
Not specified |
8164 |
| M8 |
1.25 |
150 |
Partial thread |
Not specified |
314475 |
M10 — 54 catalogue items
| Thread |
Pitch (mm) |
Length (source value) |
Thread form |
Manufacturing note |
Item reference |
| M10 |
1.5 |
16 |
Full thread |
Not specified |
8170 |
| M10 |
1.5 |
20 |
Full thread |
Not specified |
8176 |
| M10 |
1.5 |
25 |
Full thread |
Not specified |
8185 |
| M10 |
1.5 |
30 |
Full thread |
Not specified |
8193 |
| M10 |
1.5 |
35 |
Full thread |
Not specified |
8204 |
| M10 |
1.5 |
35 |
Partial thread |
Not specified |
8205 |
| M10 |
1.5 |
40 |
Full thread |
Not specified |
8214 |
| M10 |
1.5 |
40 |
Partial thread |
Not specified |
8215 |
| M10 |
1.5 |
45 |
Full thread |
Not specified |
8228 |
| M10 |
1.5 |
45 |
Partial thread |
Not specified |
8229 |
| M10 |
1.5 |
50 |
Full thread |
Not specified |
8236 |
| M10 |
1.5 |
50 |
Partial thread |
Not specified |
8237 |
| M10 |
1.5 |
55 |
Full thread |
Not specified |
8248 |
| M10 |
1.5 |
55 |
Partial thread |
Not specified |
8249 |
| M10 |
1.5 |
60 |
Full thread |
Not specified |
8257 |
| M10 |
1.5 |
60 |
Partial thread |
Not specified |
8258 |
| M10 |
1.5 |
65 |
Full thread |
Not specified |
8265 |
| M10 |
1.5 |
65 |
Partial thread |
Not specified |
8266 |
| M10 |
1.5 |
70 |
Full thread |
Not specified |
8273 |
| M10 |
1.5 |
70 |
Partial thread |
Not specified |
8274 |
| M10 |
1.5 |
75 |
Full thread |
Not specified |
8279 |
| M10 |
1.5 |
75 |
Partial thread |
Not specified |
8280 |
| M10 |
1.5 |
80 |
Full thread |
Not specified |
8287 |
| M10 |
1.5 |
80 |
Partial thread |
Not specified |
8288 |
| M10 |
1.5 |
85 |
Full thread |
Not specified |
8294 |
| M10 |
1.5 |
85 |
Partial thread |
Not specified |
8295 |
| M10 |
1.5 |
90 |
Full thread |
Not specified |
314478 |
| M10 |
1.5 |
90 |
Partial thread |
Not specified |
314479 |
| M10 |
1.5 |
95 |
Full thread |
Not specified |
105847 |
| M10 |
1.5 |
95 |
Partial thread |
Not specified |
8306 |
| M10 |
1.5 |
100 |
Full thread |
Not specified |
314484 |
| M10 |
1.5 |
100 |
Partial thread |
Not specified |
314485 |
| M10 |
1.5 |
110 |
Full thread |
Not specified |
8314 |
| M10 |
1.5 |
110 |
Partial thread |
Not specified |
314487 |
| M10 |
1.5 |
120 |
Full thread |
Not specified |
8320 |
| M10 |
1.5 |
120 |
Partial thread |
Not specified |
314491 |
| M10 |
1.5 |
130 |
Full thread |
Not specified |
8325 |
| M10 |
1.5 |
130 |
Partial thread |
Not specified |
314494 |
| M10 |
1.5 |
140 |
Full thread |
Not specified |
8329 |
| M10 |
1.5 |
140 |
Partial thread |
Not specified |
8330 |
| M10 |
1.5 |
150 |
Full thread |
Not specified |
314498 |
| M10 |
1.5 |
150 |
Partial thread |
Not specified |
314499 |
| M10 |
1.5 |
160 |
Partial thread |
Not specified |
120048 |
| M10 |
1.5 |
200 |
Partial thread |
Hot-forged |
8337 |
| M10 |
1.5 |
210 |
Partial thread |
Hot-forged |
8338 |
| M10 |
1.5 |
220 |
Partial thread |
Hot-forged |
8339 |
| M10 |
1.5 |
230 |
Partial thread |
Hot-forged |
8340 |
| M10 |
1.5 |
240 |
Partial thread |
Hot-forged |
8341 |
| M10 |
1.5 |
250 |
Partial thread |
Hot-forged |
8342 |
| M10 |
1.5 |
260 |
Partial thread |
Hot-forged |
8343 |
| M10 |
1.5 |
270 |
Partial thread |
Hot-forged |
8344 |
| M10 |
1.5 |
280 |
Partial thread |
Hot-forged |
8345 |
| M10 |
1.5 |
290 |
Partial thread |
Hot-forged |
8346 |
| M10 |
1.5 |
300 |
Partial thread |
Hot-forged |
8347 |
M12 — 59 catalogue items
| Thread |
Pitch (mm) |
Length (source value) |
Thread form |
Manufacturing note |
Item reference |
| M12 |
1.75 |
20 |
Full thread |
Not specified |
8350 |
| M12 |
1.75 |
25 |
Full thread |
Not specified |
8356 |
| M12 |
1.75 |
30 |
Full thread |
Not specified |
8364 |
| M12 |
1.75 |
35 |
Full thread |
Not specified |
8371 |
| M12 |
1.75 |
40 |
Full thread |
Not specified |
8377 |
| M12 |
1.75 |
40 |
Partial thread |
Not specified |
8378 |
| M12 |
1.75 |
45 |
Full thread |
Not specified |
8385 |
| M12 |
1.75 |
45 |
Partial thread |
Not specified |
8386 |
| M12 |
1.75 |
50 |
Full thread |
Not specified |
8394 |
| M12 |
1.75 |
50 |
Partial thread |
Not specified |
8395 |
| M12 |
1.75 |
55 |
Full thread |
Not specified |
8401 |
| M12 |
1.75 |
55 |
Partial thread |
Not specified |
8402 |
| M12 |
1.75 |
60 |
Full thread |
Not specified |
8408 |
| M12 |
1.75 |
60 |
Partial thread |
Not specified |
8409 |
| M12 |
1.75 |
65 |
Full thread |
Not specified |
8416 |
| M12 |
1.75 |
65 |
Partial thread |
Not specified |
8417 |
| M12 |
1.75 |
70 |
Full thread |
Not specified |
8422 |
| M12 |
1.75 |
70 |
Partial thread |
Not specified |
8423 |
| M12 |
1.75 |
75 |
Full thread |
Not specified |
8428 |
| M12 |
1.75 |
75 |
Partial thread |
Not specified |
8429 |
| M12 |
1.75 |
80 |
Full thread |
Not specified |
8433 |
| M12 |
1.75 |
80 |
Partial thread |
Not specified |
8434 |
| M12 |
1.75 |
85 |
Full thread |
Not specified |
8439 |
| M12 |
1.75 |
85 |
Partial thread |
Not specified |
8440 |
| M12 |
1.75 |
90 |
Full thread |
Not specified |
8446 |
| M12 |
1.75 |
90 |
Partial thread |
Not specified |
8447 |
| M12 |
1.75 |
95 |
Full thread |
Not specified |
8453 |
| M12 |
1.75 |
95 |
Partial thread |
Not specified |
8454 |
| M12 |
1.75 |
100 |
Full thread |
Not specified |
8460 |
| M12 |
1.75 |
100 |
Partial thread |
Not specified |
8461 |
| M12 |
1.75 |
110 |
Full thread |
Not specified |
314502 |
| M12 |
1.75 |
110 |
Partial thread |
Not specified |
8467 |
| M12 |
1.75 |
120 |
Full thread |
Not specified |
8470 |
| M12 |
1.75 |
120 |
Partial thread |
Not specified |
8471 |
| M12 |
1.75 |
130 |
Full thread |
Not specified |
314506 |
| M12 |
1.75 |
130 |
Full thread |
Not specified |
8474 |
| M12 |
1.75 |
130 |
Partial thread |
Not specified |
314507 |
| M12 |
1.75 |
140 |
Full thread |
Not specified |
8478 |
| M12 |
1.75 |
140 |
Partial thread |
Not specified |
8479 |
| M12 |
1.75 |
150 |
Full thread |
Not specified |
8481 |
| M12 |
1.75 |
150 |
Partial thread |
Not specified |
8482 |
| M12 |
1.75 |
160 |
Full thread |
Not specified |
105850 |
| M12 |
1.75 |
160 |
Partial thread |
Not specified |
8483 |
| M12 |
1.75 |
170 |
Full thread |
Not specified |
105852 |
| M12 |
1.75 |
170 |
Partial thread |
Not specified |
8485 |
| M12 |
1.75 |
180 |
Partial thread |
Not specified |
8487 |
| M12 |
1.75 |
190 |
Partial thread |
Not specified |
8488 |
| M12 |
1.75 |
200 |
Full thread |
Not specified |
105861 |
| M12 |
1.75 |
200 |
Partial thread |
Not specified |
8490 |
| M12 |
1.75 |
210 |
Partial thread |
Hot-forged |
8492 |
| M12 |
1.75 |
220 |
Partial thread |
Hot-forged |
8493 |
| M12 |
1.75 |
230 |
Partial thread |
Hot-forged |
8494 |
| M12 |
1.75 |
240 |
Partial thread |
Hot-forged |
8495 |
| M12 |
1.75 |
250 |
Partial thread |
Hot-forged |
8496 |
| M12 |
1.75 |
260 |
Partial thread |
Hot-forged |
8497 |
| M12 |
1.75 |
270 / additional source dimension: 49 |
Partial thread |
Hot-forged |
8499 |
| M12 |
1.75 |
280 |
Partial thread |
Hot-forged |
8501 |
| M12 |
1.75 |
290 |
Partial thread |
Hot-forged |
8503 |
| M12 |
1.75 |
300 / additional source dimension: 49 |
Partial thread |
Hot-forged |
8506 |
M14 — 31 catalogue items
| Thread |
Pitch (mm) |
Length (source value) |
Thread form |
Manufacturing note |
Item reference |
| M14 |
2 |
25 |
Full thread |
Not specified |
8517 |
| M14 |
2 |
30 |
Full thread |
Not specified |
8518 |
| M14 |
2 |
35 |
Full thread |
Not specified |
8519 |
| M14 |
2 |
40 |
Full thread |
Not specified |
8520 |
| M14 |
2 |
45 |
Full thread |
Not specified |
105864 |
| M14 |
2 |
50 |
Full thread |
Not specified |
105867 |
| M14 |
2 |
50 |
Partial thread |
Not specified |
8523 |
| M14 |
2 |
55 |
Full thread |
Not specified |
105870 |
| M14 |
2 |
55 |
Partial thread |
Not specified |
107193 |
| M14 |
2 |
60 |
Full thread |
Not specified |
105871 |
| M14 |
2 |
60 |
Partial thread |
Not specified |
107194 |
| M14 |
2 |
65 |
Full thread |
Not specified |
105872 |
| M14 |
2 |
70 |
Full thread |
Not specified |
105873 |
| M14 |
2 |
70 |
Partial thread |
Not specified |
107196 |
| M14 |
2 |
75 |
Full thread |
Not specified |
105874 |
| M14 |
2 |
80 |
Full thread |
Not specified |
105875 |
| M14 |
2 |
85 |
Full thread |
Not specified |
105876 |
| M14 |
2 |
90 |
Full thread |
Not specified |
105877 |
| M14 |
2 |
90 |
Partial thread |
Not specified |
107200 |
| M14 |
2 |
95 |
Full thread |
Not specified |
105878 |
| M14 |
2 |
100 |
Full thread |
Not specified |
105879 |
| M14 |
2 |
100 |
Partial thread |
Not specified |
107202 |
| M14 |
2 |
110 |
Full thread |
Not specified |
105884 |
| M14 |
2 |
110 |
Partial thread |
Not specified |
107203 |
| M14 |
2 |
120 |
Full thread |
Not specified |
105885 |
| M14 |
2 |
130 |
Full thread |
Not specified |
105886 |
| M14 |
2 |
140 |
Full thread |
Not specified |
105887 |
| M14 |
2 |
150 |
Full thread |
Not specified |
105888 |
| M14 |
2 |
150 |
Partial thread |
Not specified |
107207 |
| M14 |
2 |
170 |
Partial thread |
Not specified |
107209 |
| M14 |
2 |
290 |
Partial thread |
Not specified |
120062 |
M16 — 57 catalogue items
| Thread |
Pitch (mm) |
Length (source value) |
Thread form |
Manufacturing note |
Item reference |
| M16 |
2 |
25 |
Full thread |
Not specified |
8525 |
| M16 |
2 |
30 |
Full thread |
Not specified |
8526 |
| M16 |
2 |
35 |
Full thread |
Not specified |
8528 |
| M16 |
2 |
40 |
Full thread |
Not specified |
8531 |
| M16 |
2 |
45 |
Full thread |
Not specified |
8534 |
| M16 |
2 |
50 |
Full thread |
Not specified |
8538 |
| M16 |
2 |
50 |
Partial thread |
Not specified |
8536 |
| M16 |
2 |
55 |
Full thread |
Not specified |
8541 |
| M16 |
2 |
55 |
Partial thread |
Not specified |
8539 |
| M16 |
2 |
60 |
Full thread |
Not specified |
8544 |
| M16 |
2 |
60 |
Partial thread |
Not specified |
8542 |
| M16 |
2 |
65 |
Full thread |
Not specified |
8547 |
| M16 |
2 |
65 |
Partial thread |
Not specified |
8545 |
| M16 |
2 |
70 |
Full thread |
Not specified |
8550 |
| M16 |
2 |
70 |
Partial thread |
Not specified |
8548 |
| M16 |
2 |
75 |
Full thread |
Not specified |
8553 |
| M16 |
2 |
75 |
Partial thread |
Not specified |
8551 |
| M16 |
2 |
80 |
Full thread |
Not specified |
8555 |
| M16 |
2 |
80 |
Partial thread |
Not specified |
8556 |
| M16 |
2 |
85 |
Full thread |
Not specified |
8559 |
| M16 |
2 |
85 |
Partial thread |
Not specified |
8560 |
| M16 |
2 |
90 |
Full thread |
Not specified |
8563 |
| M16 |
2 |
90 |
Partial thread |
Not specified |
8564 |
| M16 |
2 |
95 |
Full thread |
Not specified |
8566 |
| M16 |
2 |
95 |
Partial thread |
Not specified |
8567 |
| M16 |
2 |
100 |
Full thread |
Not specified |
8570 |
| M16 |
2 |
100 |
Partial thread |
Not specified |
8571 |
| M16 |
2 |
110 |
Full thread |
Not specified |
8574 |
| M16 |
2 |
110 |
Partial thread |
Not specified |
8575 |
| M16 |
2 |
120 |
Full thread |
Not specified |
8576 |
| M16 |
2 |
120 |
Partial thread |
Not specified |
314510 |
| M16 |
2 |
130 |
Full thread |
Not specified |
8578 |
| M16 |
2 |
130 |
Partial thread |
Not specified |
314511 |
| M16 |
2 |
140 |
Full thread |
Not specified |
8580 |
| M16 |
2 |
140 |
Partial thread |
Not specified |
8581 |
| M16 |
2 |
150 |
Full thread |
Not specified |
8582 |
| M16 |
2 |
150 |
Partial thread |
Not specified |
8583 |
| M16 |
2 |
160 |
Full thread |
Not specified |
105895 |
| M16 |
2 |
160 |
Partial thread |
Not specified |
8584 |
| M16 |
2 |
170 |
Full thread |
Not specified |
105896 |
| M16 |
2 |
170 |
Partial thread |
Not specified |
8586 |
| M16 |
2 |
180 |
Full thread |
Not specified |
105897 |
| M16 |
2 |
180 |
Partial thread |
Not specified |
8588 |
| M16 |
2 |
190 |
Full thread |
Not specified |
105898 |
| M16 |
2 |
190 |
Partial thread |
Not specified |
8589 |
| M16 |
2 |
200 |
Full thread |
Not specified |
105899 |
| M16 |
2 |
200 |
Partial thread |
Not specified |
8591 |
| M16 |
2 |
210 |
Partial thread |
Not specified |
8593 |
| M16 |
2 |
220 |
Partial thread |
Hot-forged |
8595 |
| M16 |
2 |
230 |
Partial thread |
Hot-forged |
8597 |
| M16 |
2 |
240 |
Partial thread |
Hot-forged |
8599 |
| M16 |
2 |
250 |
Partial thread |
Hot-forged |
8601 |
| M16 |
2 |
260 |
Partial thread |
Hot-forged |
8603 |
| M16 |
2 |
270 |
Partial thread |
Hot-forged |
8604 |
| M16 |
2 |
280 |
Partial thread |
Hot-forged |
8605 |
| M16 |
2 |
290 |
Partial thread |
Hot-forged |
8607 |
| M16 |
2 |
300 |
Partial thread |
Hot-forged |
8609 |
M20 — 45 catalogue items
| Thread |
Pitch (mm) |
Length (source value) |
Thread form |
Manufacturing note |
Item reference |
| M20 |
2.5 |
30 |
Full thread |
Not specified |
8615 |
| M20 |
2.5 |
35 |
Full thread |
Not specified |
8616 |
| M20 |
2.5 |
40 |
Full thread |
Not specified |
8617 |
| M20 |
2.5 |
45 |
Full thread |
Not specified |
8618 |
| M20 |
2.5 |
50 |
Full thread |
Not specified |
8621 |
| M20 |
2.5 |
55 |
Full thread |
Not specified |
8624 |
| M20 |
2.5 |
60 |
Full thread |
Not specified |
8628 |
| M20 |
2.5 |
60 |
Partial thread |
Not specified |
8629 |
| M20 |
2.5 |
65 |
Full thread |
Not specified |
8632 |
| M20 |
2.5 |
65 |
Partial thread |
Not specified |
8633 |
| M20 |
2.5 |
70 |
Full thread |
Not specified |
8635 |
| M20 |
2.5 |
70 |
Partial thread |
Not specified |
8636 |
| M20 |
2.5 |
75 |
Full thread |
Not specified |
8640 |
| M20 |
2.5 |
75 |
Partial thread |
Not specified |
8641 |
| M20 |
2.5 |
80 |
Full thread |
Not specified |
8645 |
| M20 |
2.5 |
80 |
Partial thread |
Not specified |
8646 |
| M20 |
2.5 |
85 |
Full thread |
Not specified |
8648 |
| M20 |
2.5 |
85 |
Partial thread |
Not specified |
8649 |
| M20 |
2.5 |
90 |
Full thread |
Not specified |
8652 |
| M20 |
2.5 |
90 |
Partial thread |
Not specified |
8653 |
| M20 |
2.5 |
95 |
Full thread |
Not specified |
8655 |
| M20 |
2.5 |
95 |
Partial thread |
Not specified |
8656 |
| M20 |
2.5 |
100 |
Full thread |
Not specified |
8658 |
| M20 |
2.5 |
100 |
Partial thread |
Not specified |
8659 |
| M20 |
2.5 |
110 |
Full thread |
Not specified |
8662 |
| M20 |
2.5 |
110 |
Partial thread |
Not specified |
8663 |
| M20 |
2.5 |
120 |
Full thread |
Not specified |
8664 |
| M20 |
2.5 |
120 |
Partial thread |
Not specified |
314512 |
| M20 |
2.5 |
130 |
Full thread |
Not specified |
8667 |
| M20 |
2.5 |
130 |
Partial thread |
Not specified |
314513 |
| M20 |
2.5 |
140 |
Full thread |
Not specified |
8669 |
| M20 |
2.5 |
140 |
Partial thread |
Not specified |
8670 |
| M20 |
2.5 |
150 |
Full thread |
Not specified |
8672 |
| M20 |
2.5 |
150 |
Partial thread |
Not specified |
314514 |
| M20 |
2.5 |
150 |
Partial thread |
Not specified |
8673 |
| M20 |
2.5 |
160 |
Full thread |
Not specified |
105900 |
| M20 |
2.5 |
160 |
Partial thread |
Not specified |
53007 |
| M20 |
2.5 |
170 |
Full thread |
Not specified |
105901 |
| M20 |
2.5 |
170 |
Partial thread |
Not specified |
92890 |
| M20 |
2.5 |
180 |
Full thread |
Not specified |
105902 |
| M20 |
2.5 |
180 |
Partial thread |
Not specified |
53008 |
| M20 |
2.5 |
190 |
Full thread |
Not specified |
105903 |
| M20 |
2.5 |
190 |
Partial thread |
Not specified |
53009 |
| M20 |
2.5 |
200 |
Full thread |
Not specified |
105905 |
| M20 |
2.5 |
200 |
Partial thread |
Not specified |
53010 |
M22 — 20 catalogue items
| Thread |
Pitch (mm) |
Length (source value) |
Thread form |
Manufacturing note |
Item reference |
| M22 |
2.5 |
50 |
Full thread |
Not specified |
8691 |
| M22 |
2.5 |
55 |
Full thread |
Not specified |
8692 |
| M22 |
2.5 |
60 |
Full thread |
Not specified |
8693 |
| M22 |
2.5 |
65 |
Full thread |
Not specified |
8694 |
| M22 |
2.5 |
70 |
Full thread |
Not specified |
8695 |
| M22 |
2.5 |
75 |
Full thread |
Not specified |
8696 |
| M22 |
2.5 |
75 |
Partial thread |
Not specified |
8697 |
| M22 |
2.5 |
80 |
Full thread |
Not specified |
8698 |
| M22 |
2.5 |
80 |
Partial thread |
Not specified |
8699 |
| M22 |
2.5 |
85 |
Full thread |
Not specified |
114915 |
| M22 |
2.5 |
85 |
Partial thread |
Not specified |
8700 |
| M22 |
2.5 |
90 |
Full thread |
Not specified |
8701 |
| M22 |
2.5 |
90 |
Partial thread |
Not specified |
8702 |
| M22 |
2.5 |
100 |
Full thread |
Not specified |
8704 |
| M22 |
2.5 |
100 |
Partial thread |
Not specified |
8705 |
| M22 |
2.5 |
110 |
Partial thread |
Not specified |
8706 |
| M22 |
2.5 |
120 |
Partial thread |
Not specified |
8707 |
| M22 |
2.5 |
130 |
Partial thread |
Not specified |
8708 |
| M22 |
2.5 |
140 |
Partial thread |
Not specified |
8709 |
| M22 |
2.5 |
150 |
Partial thread |
Not specified |
8710 |
M24 — 23 catalogue items
| Thread |
Pitch (mm) |
Length (source value) |
Thread form |
Manufacturing note |
Item reference |
| M24 |
3 |
55 |
Full thread |
Not specified |
8712 |
| M24 |
3 |
60 |
Full thread |
Not specified |
8713 |
| M24 |
3 |
65 |
Full thread |
Not specified |
8714 |
| M24 |
3 |
70 |
Full thread |
Not specified |
8715 |
| M24 |
3 |
75 |
Full thread |
Not specified |
8716 |
| M24 |
3 |
80 |
Full thread |
Not specified |
8717 |
| M24 |
3 |
80 |
Partial thread |
Not specified |
8718 |
| M24 |
3 |
85 |
Partial thread |
Not specified |
8719 |
| M24 |
3 |
90 |
Full thread |
Not specified |
8720 |
| M24 |
3 |
90 |
Partial thread |
Not specified |
8721 |
| M24 |
3 |
95 |
Partial thread |
Not specified |
8722 |
| M24 |
3 |
100 |
Full thread |
Not specified |
8723 |
| M24 |
3 |
100 |
Partial thread |
Not specified |
8724 |
| M24 |
3 |
110 |
Partial thread |
Not specified |
8725 |
| M24 |
3 |
120 |
Partial thread |
Not specified |
8726 |
| M24 |
3 |
130 |
Partial thread |
Not specified |
8727 |
| M24 |
3 |
140 |
Partial thread |
Not specified |
8728 |
| M24 |
3 |
150 |
Partial thread |
Not specified |
8729 |
| M24 |
3 |
160 |
Partial thread |
Not specified |
8730 |
| M24 |
3 |
170 |
Partial thread |
Not specified |
8731 |
| M24 |
3 |
180 |
Partial thread |
Not specified |
8732 |
| M24 |
3 |
190 |
Partial thread |
Not specified |
8733 |
| M24 |
3 |
200 |
Partial thread |
Not specified |
8734 |
Request a quotation
Send the item reference, quantity, drawing and delivery destination. For items available in Dongming stock, dispatch can usually be arranged in around 3 days, subject to stock and order confirmation.
Request a Quote
