Choose Your GB 879 Slotted Spring Pins

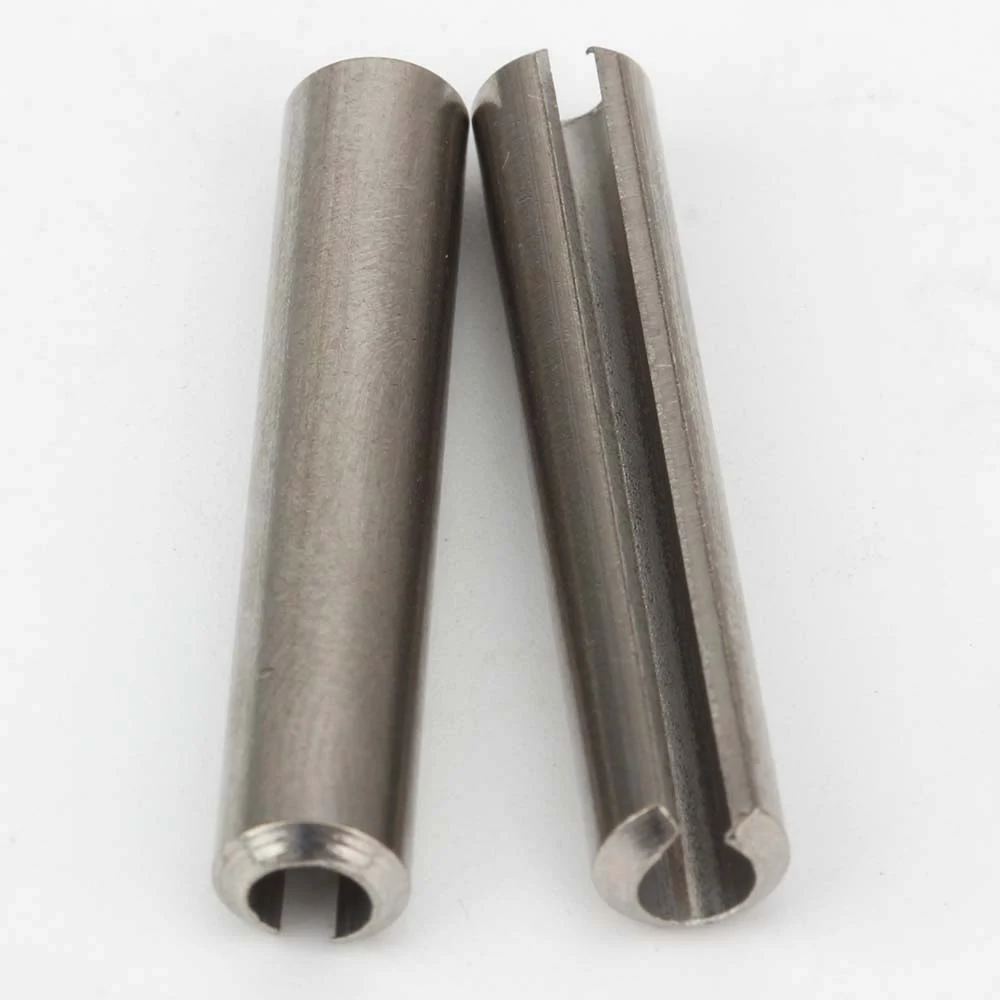

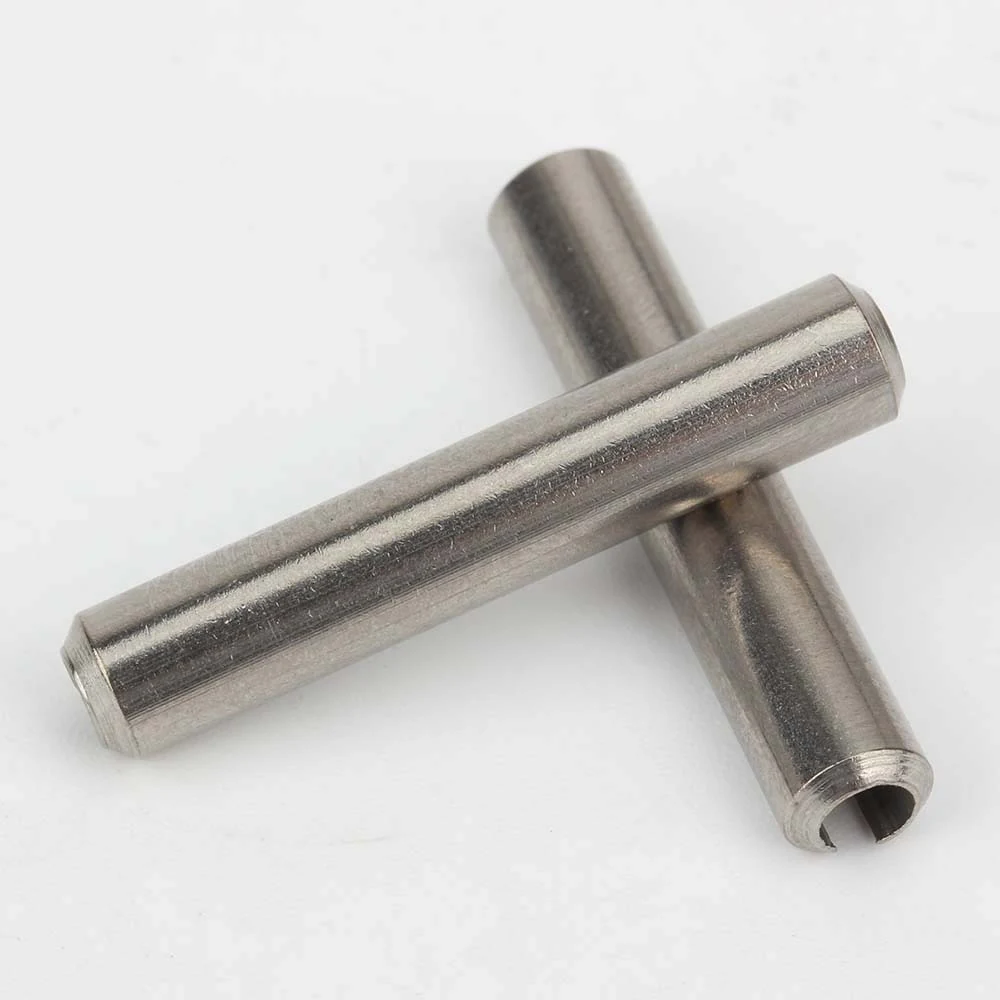

304 stainless steel spring pins with a longitudinal slot. The catalogue lists 86 diameter-and-length combinations, grouped below so you can find a matching size quickly.
All dimensions are in millimetres. Select a diameter and one of the lengths in the same row. On mobile, swipe the table sideways if needed.
304 Stainless Steel · 86 catalogue sizes
| Nominal diameter (mm) | Available lengths (mm) |
|---|---|
| 1.5 | 5, 6, 8, 10, 12, 14, 16, 18, 20 |
| 2 | 6, 8, 10, 12, 14, 16, 18, 20, 25 |
| 3 | 6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40 |
| 4 | 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 60 |
| 5 | 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70 |
| 6 | 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60 |
| 8 | 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80 |
Match the Pin to Your Assembly
Choose this series when your drawing calls for a slotted spring pin. Confirm the nominal diameter, overall length, mating-hole dimensions and installation requirements for the selected item.
The supplier lists these pins as GB 879, without a standard edition or part number. Wall thickness, free-state diameter, dimensional tolerances, hardness and shear performance are not specified in the catalogue records. Ask for the item drawing or inspection requirements with your enquiry.
All listed items are unmarked. The separate GB 879.4 coiled-pin catalogue is not included in this slotted-pin table.
Fast Dispatch for Stocked Items
Items available in Tongming stock can usually be dispatched in around 3 days. Stock and dispatch timing are confirmed with your quotation.
Request a Spring Pin Quotation
Send GB 879, 304 stainless steel, nominal diameter, length and quantity. Attach your drawing and any fit or inspection requirements for an exact match.
Fastener supply experience since 2005. Nanjing Tongming provides experienced product coordination and competitive quotations for project and repeat purchasing.
Catalogue listing does not indicate live stock. Exact dimensions and documentation are confirmed for the quoted item.
