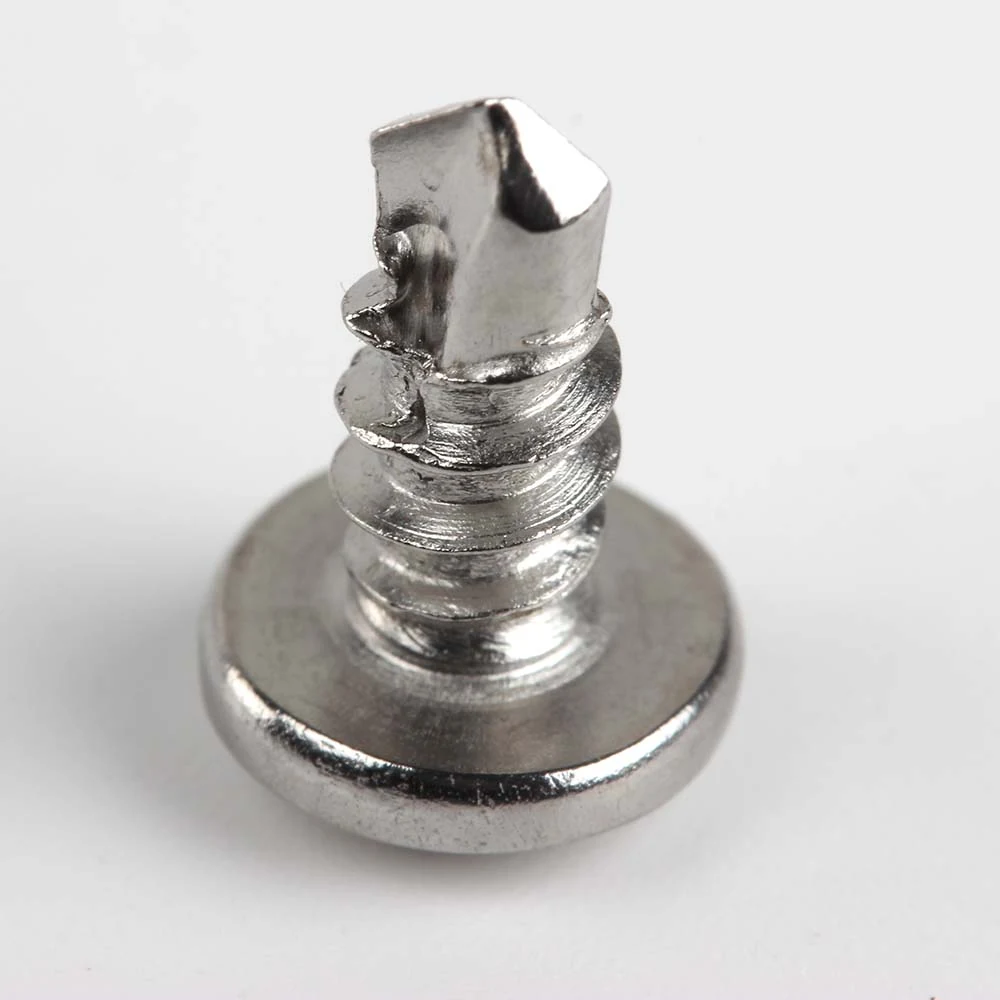

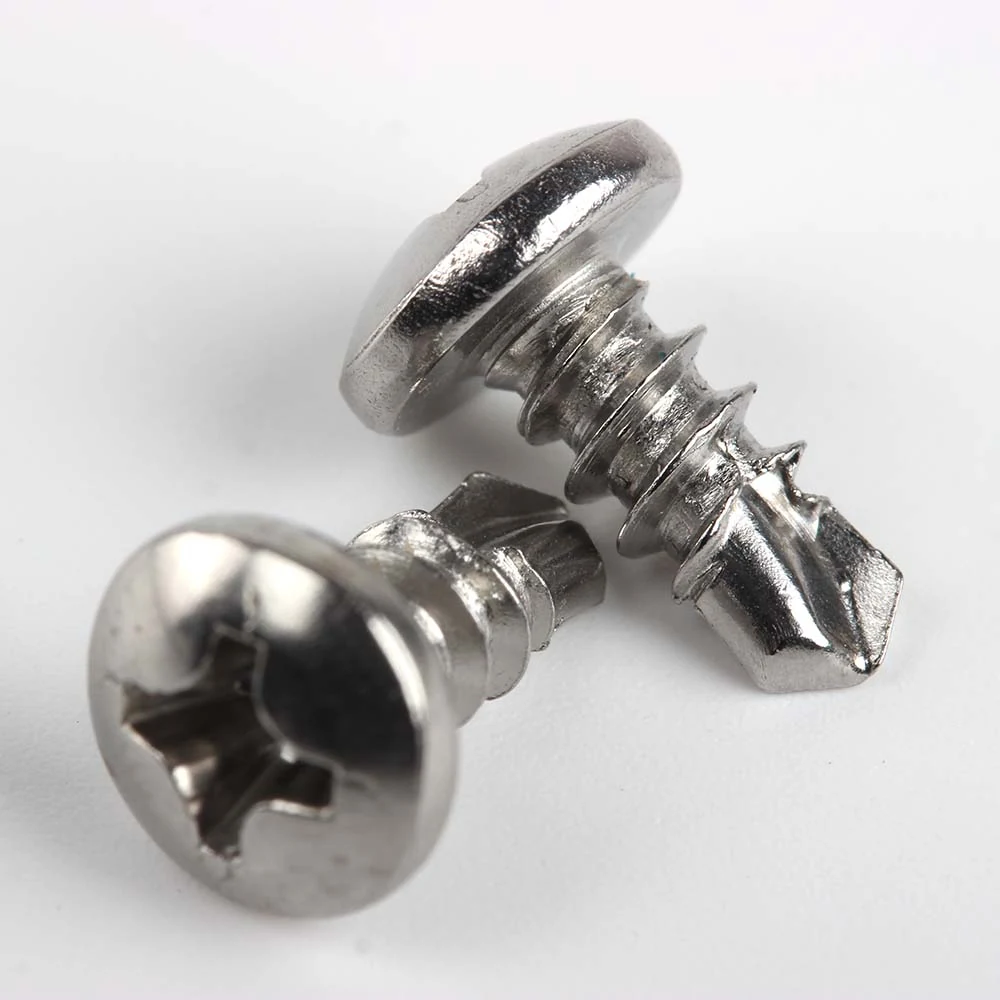

Find Your DIN 7504 N Pan Head Drilling Screw

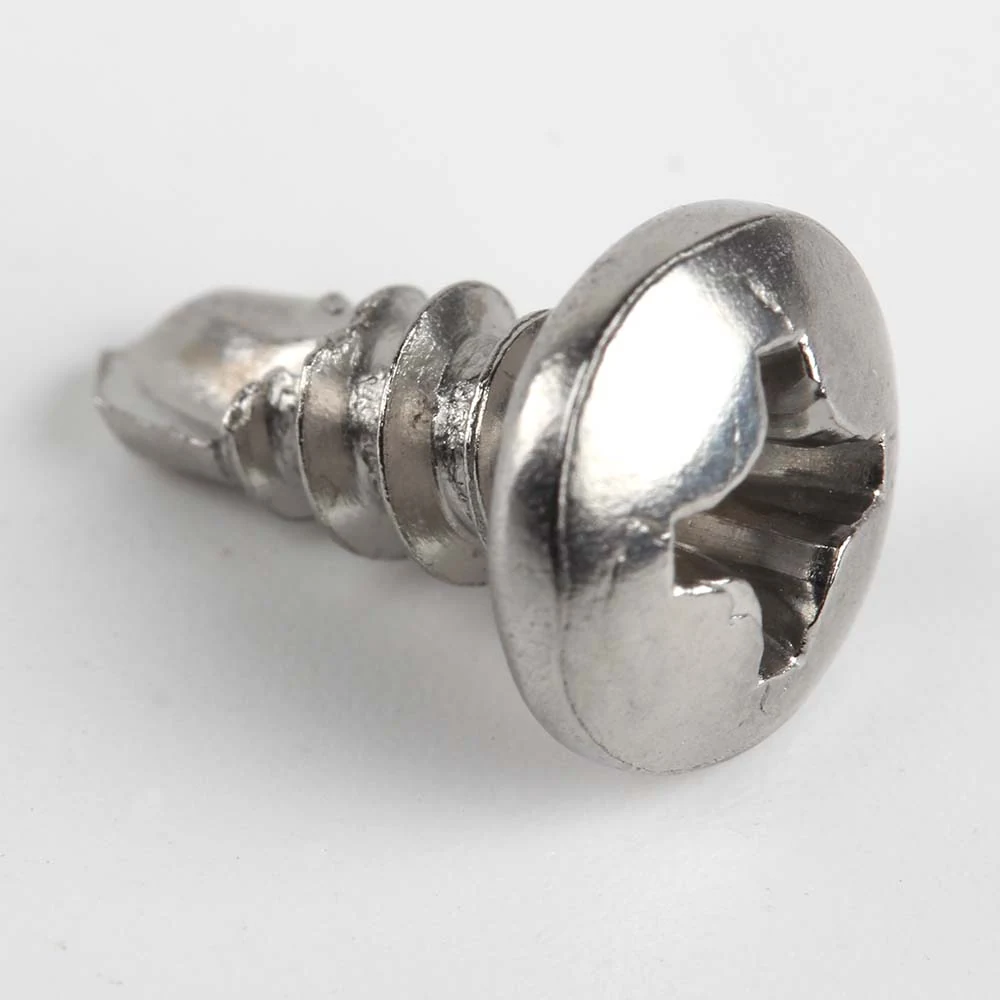

Compare cross-recessed pan head self-drilling screws by material, catalogue thread code, thread coverage and length. Open a material group to view the listed combinations.
Lengths are in millimetres. Thread codes such as ST3.5-20 reproduce the supplier designation; the suffix is not a millimetre pitch. Select the code, version and length from the same row. On mobile, swipe a table sideways to see all columns.
304 Stainless Steel · 82 catalogue items
| Catalogue thread code | Version / thread coverage | Treatment | Available lengths (mm) |
|---|---|---|---|
| ST3.5-20 | Pan head Coarse tapping thread · Full thread |
Not specified | 9.5 · 13 · 16 · 19 · 22 · 25 · 32 · 35 · 38 |
| ST3.9-19 | Pan head Coarse tapping thread · Full thread |
Not specified | 9.5 · 13 · 16 · 19 · 22 · 25 · 32 · 35 · 38 · 45 |
| ST4.2-18 | Pan head Coarse tapping thread · Full thread |
Not specified | 9.5 · 13 · 16 · 19 · 22 · 25 · 32 · 35 · 38 · 45 · 50 |
| ST4.8-16 | Pan head Coarse tapping thread · Full thread |
Not specified | 13 · 16 · 19 · 22 · 25 · 32 · 35 · 38 · 45 · 50 · 55 · 60 |
| ST4.8-16 | Pan head Coarse tapping thread · Partial thread |
Not specified | 65 · 70 |
| ST5.5-14 | Pan head Coarse tapping thread · Full thread |
Not specified | 16 · 19 · 22 · 25 · 32 · 35 · 38 · 45 · 50 · 55 · 60 |
| ST5.5-14 | Pan head Coarse tapping thread · Partial thread |
Not specified | 65 · 70 · 75 · 80 · 85 · 90 · 95 · 100 |
| ST6.3-14 | Pan head Coarse tapping thread · Full thread |
Not specified | 16 · 19 · 22 · 25 · 32 · 35 · 38 · 45 · 50 · 55 · 60 |
| ST6.3-14 | Pan head Coarse tapping thread · Partial thread |
Not specified | 65 · 70 · 75 · 80 · 85 · 90 · 95 · 100 |
316 Stainless Steel · 76 catalogue items
| Catalogue thread code | Version / thread coverage | Treatment | Available lengths (mm) |
|---|---|---|---|
| ST3.5-20 | Pan head Coarse tapping thread · Full thread |
Not specified | 9.5 · 13 · 16 · 19 · 22 · 25 · 32 · 38 |
| ST3.9-19 | Pan head Coarse tapping thread · Full thread |
Not specified | 9.5 · 13 · 16 · 19 · 22 · 25 · 32 · 38 · 45 |
| ST4.2-18 | Pan head Coarse tapping thread · Full thread |
Not specified | 9.5 · 13 · 16 · 19 · 22 · 25 · 32 · 38 · 45 · 50 |
| ST4.8-16 | Pan head Coarse tapping thread · Full thread |
Not specified | 13 · 16 · 19 · 22 · 25 · 32 · 38 · 45 · 50 · 55 · 60 |
| ST4.8-16 | Pan head Coarse tapping thread · Partial thread |
Not specified | 65 · 70 |
| ST5.5-14 | Pan head Coarse tapping thread · Full thread |
Not specified | 16 · 19 · 22 · 25 · 32 · 38 · 45 · 50 · 55 · 60 |
| ST5.5-14 | Pan head Coarse tapping thread · Partial thread |
Not specified | 65 · 70 · 75 · 80 · 85 · 90 · 100 |
| ST6.3-14 | Pan head Coarse tapping thread · Full thread |
Not specified | 16 · 19 · 22 · 25 · 32 · 38 · 45 · 50 · 55 · 60 |
| ST6.3-14 | Pan head Coarse tapping thread · Partial thread |
Not specified | 65 · 70 · 75 · 80 · 85 · 90 · 95 · 100 |
| ST6.3-14 | With PVC washer Coarse tapping thread · Full thread |
“洗光” · supplier finish | 19 |
410 Stainless Steel · 82 catalogue items
| Catalogue thread code | Version / thread coverage | Treatment | Available lengths (mm) |
|---|---|---|---|
| ST3.5-20 | Pan head Coarse tapping thread · Full thread |
Not specified | 9.5 · 13 · 16 · 19 · 22 · 25 · 32 · 35 · 38 |
| ST3.9-19 | Pan head Coarse tapping thread · Full thread |
Not specified | 9.5 · 13 · 16 · 19 · 22 · 25 · 32 · 35 · 38 · 45 |
| ST4.2-18 | Pan head Coarse tapping thread · Full thread |
Not specified | 9.5 · 13 · 16 · 19 · 22 · 25 · 32 · 35 · 38 · 45 · 50 |
| ST4.8-16 | Pan head Coarse tapping thread · Full thread |
Not specified | 13 · 16 · 19 · 22 · 25 · 32 · 35 · 38 · 45 · 50 · 55 · 60 |
| ST4.8-16 | Pan head Coarse tapping thread · Partial thread |
Not specified | 65 · 70 |
| ST5.5-14 | Pan head Coarse tapping thread · Full thread |
Not specified | 16 · 19 · 22 · 25 · 32 · 35 · 38 · 45 · 50 · 55 · 60 |
| ST5.5-14 | Pan head Coarse tapping thread · Partial thread |
Not specified | 65 · 70 · 75 · 80 · 85 · 90 · 95 · 100 |
| ST6.3-14 | Pan head Coarse tapping thread · Full thread |
Not specified | 16 · 19 · 22 · 25 · 32 · 35 · 38 · 45 · 50 · 55 · 60 |
| ST6.3-14 | Pan head Coarse tapping thread · Partial thread |
Not specified | 65 · 70 · 75 · 80 · 85 · 90 · 95 · 100 |
Choose the Right Drilling Application
All listed items are unmarked in the source catalogue. Full-thread and partial-thread versions are kept separate. The 316 option with a PVC washer and the supplier finish “洗光” is listed separately at ST6.3-14 × 19 mm.
Include the substrate material, total thickness and installation requirements in your enquiry. Drilling capacity, hardness, heat treatment and installation settings must be confirmed for the selected item. A material designation alone does not establish suitability for a particular substrate.
Fast Dispatch for Stocked Items
Items available in Tongming stock can usually be dispatched in around 3 days. Stock and dispatch timing are confirmed with your quotation.
Send Your Specification
Include DIN 7504 N, material, catalogue thread code, length, thread coverage, version and quantity. Attach drawings or inspection requirements for your assembly.
Fastener supply experience since 2005. Nanjing Tongming provides experienced product coordination and competitive quotations for project and repeat purchasing.
Catalogue listing does not indicate live stock. Dimensions, application suitability and documentation are confirmed for the quoted item.
