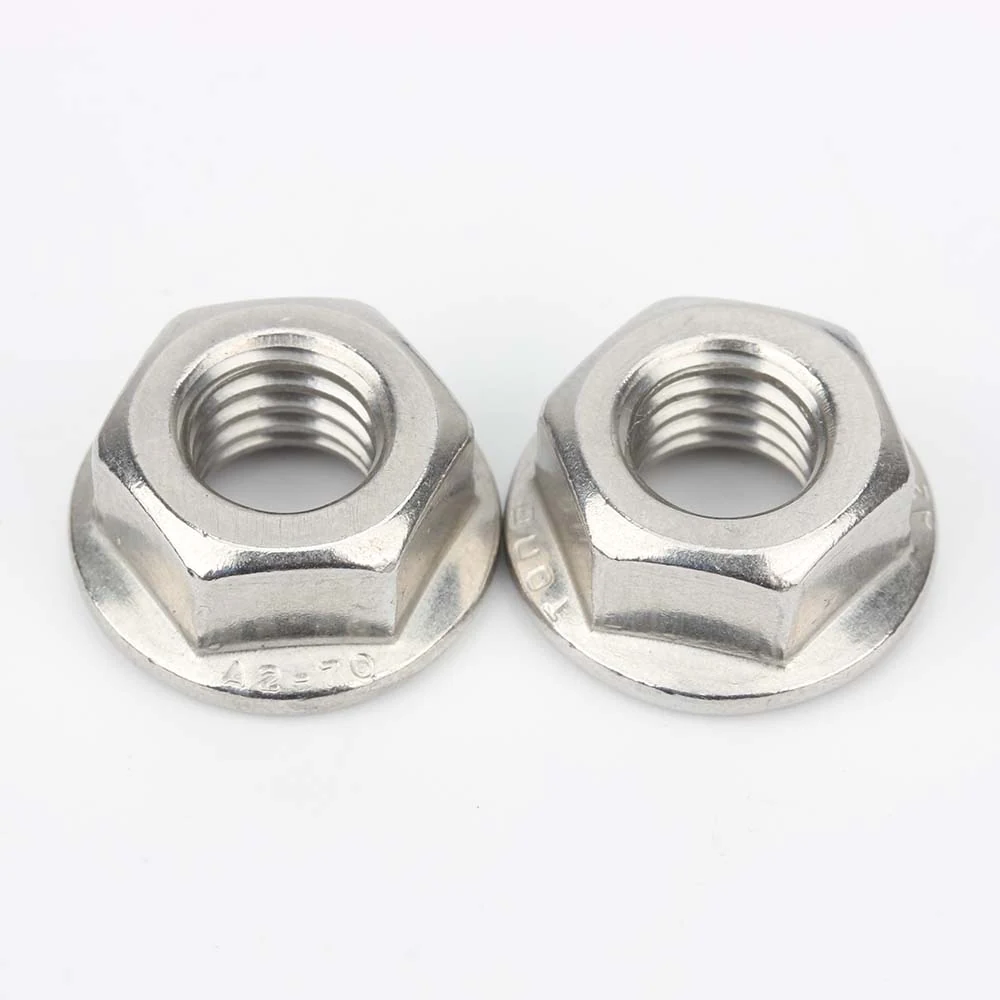

Find Your DIN 6923 Plain Flange Nut Specification

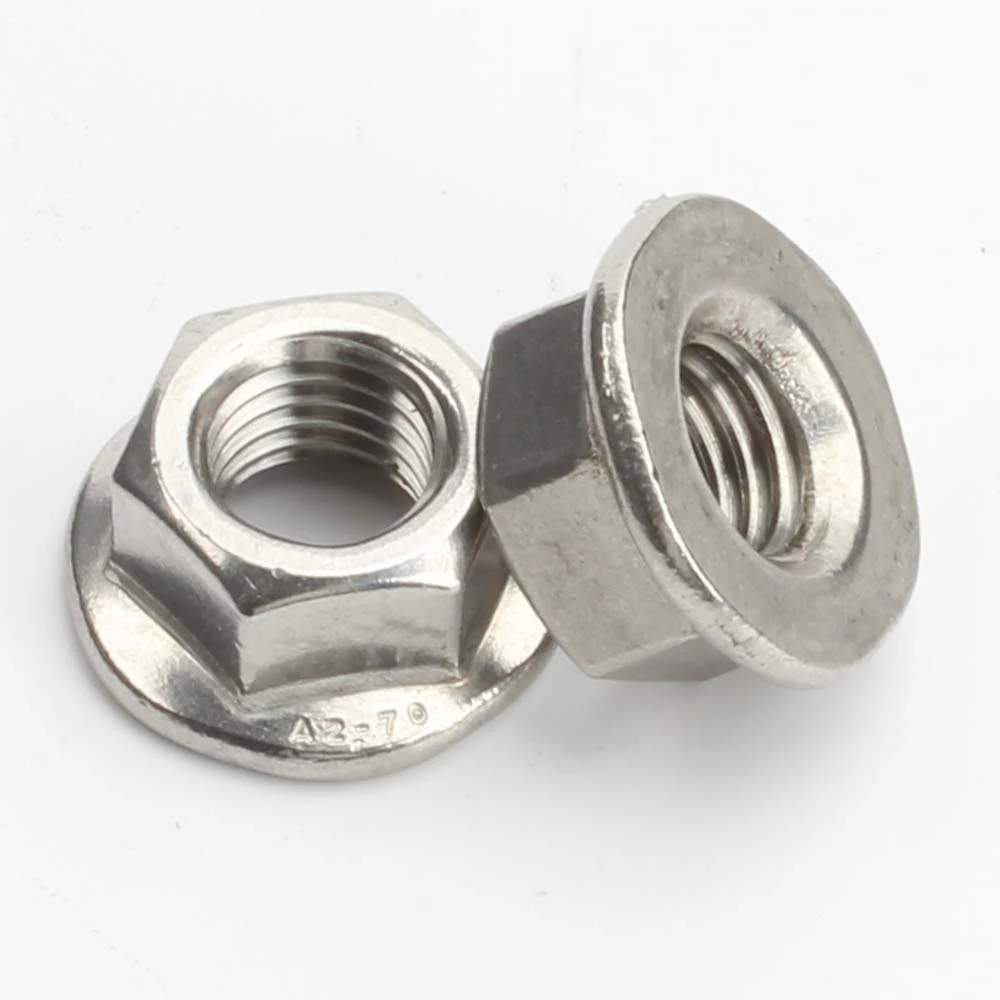

Compare plain flange nuts by material, thread size, marking and treatment. These catalogue items have a smooth, non-serrated bearing face.
Thread dimensions are in millimetres. Choose the exact diameter × pitch from the same row as your required version. On mobile, swipe a table sideways to see all columns.
304 Stainless Steel · 8 catalogue items
| Thread / version | Marking | Treatment | Thread options
diameter × pitch (mm) |
|---|---|---|---|
| Coarse thread
Plain flange |
Unmarked | Not specified | M3 × 0.5 · M4 × 0.7 |
| Coarse thread
Plain flange |
A2-70 TonG | Not specified | M5 × 0.8 · M6 × 1.0 · M8 × 1.25 · M10 × 1.5 · M12 × 1.75 |
| Coarse thread
Plain flange |
A2-70 TonG | Bright-cleaned | M16 × 2 |
316 Stainless Steel · 1 catalogue item
| Thread / version | Marking | Treatment | Thread options
diameter × pitch (mm) |
|---|---|---|---|
| Coarse thread
Plain flange |
A4-80 TonG | Not specified | M8 × 1.25 |
Fast Dispatch for Stocked Items
Items available in Tongming stock can usually be dispatched in around 3 days. Stock and dispatch timing are confirmed with your quotation.
Send Your Specification
Include DIN 6923, plain flange face, material, diameter × pitch, marking, treatment and quantity. Attach a drawing when flange dimensions or inspection requirements need clarification.
Fastener supply experience since 2005. Nanjing Tongming provides experienced product coordination and competitive quotations for project and repeat purchasing.
Markings, dimensions and treatments depend on the quoted item. Catalogue listing does not indicate live stock.
