Find Your Stainless Steel Wing Screw Size

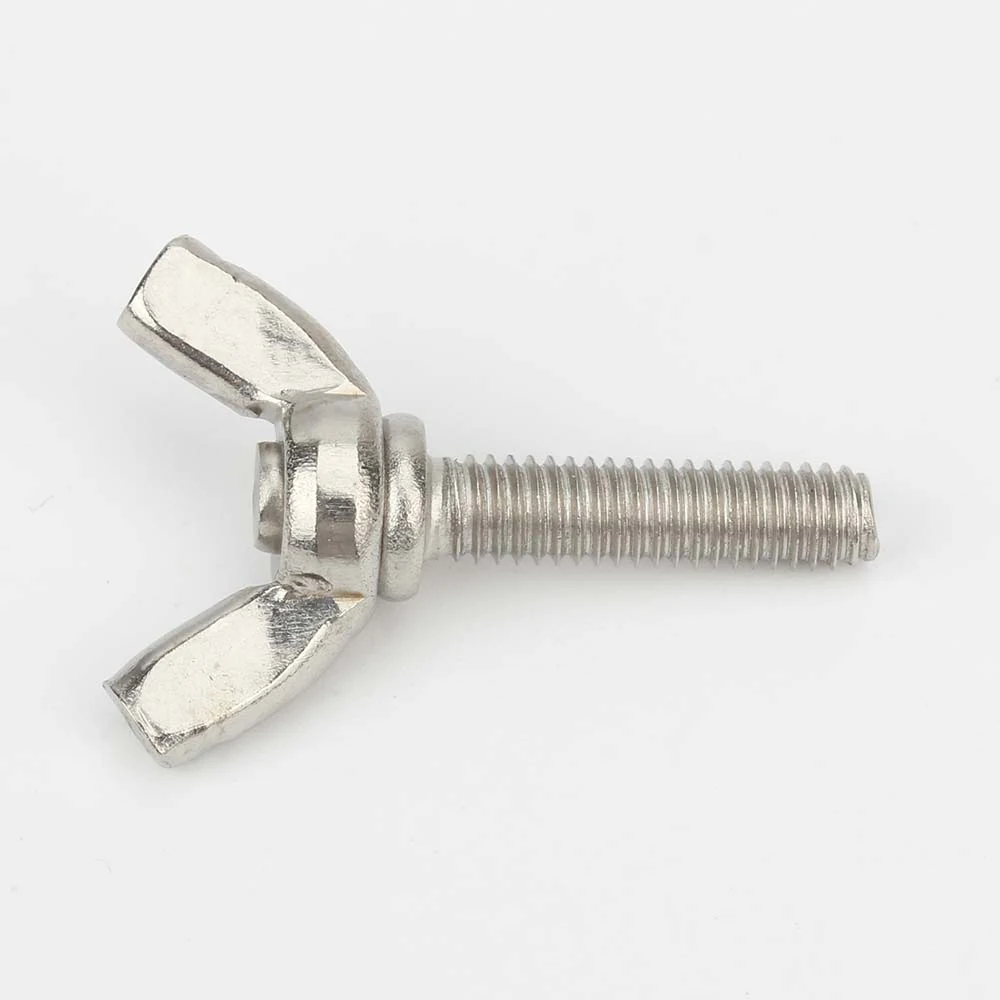

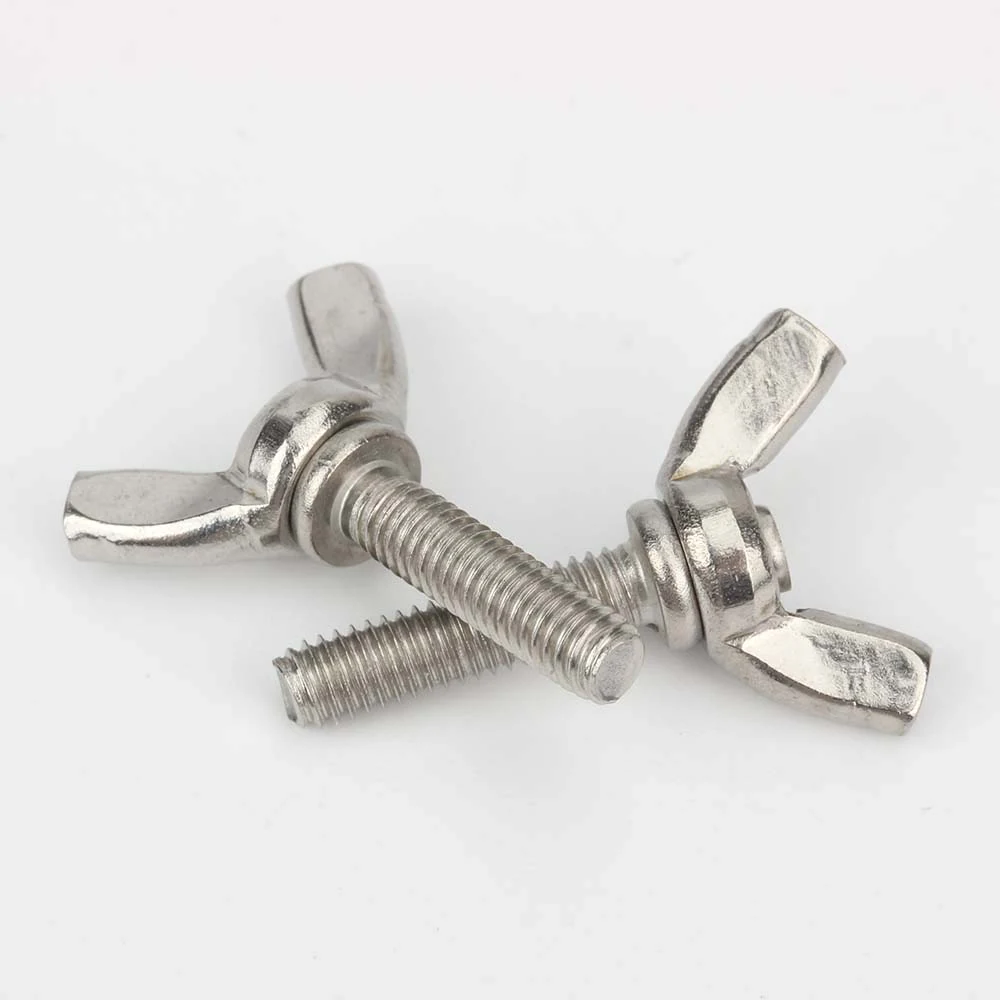

Compare TONG 304 stainless steel wing screws by diameter, pitch and length. The supplier lists this family under a DIN 316 reference and describes it as a THE-standard pattern. Use a drawing to confirm the exact dimensions when DIN 316 conformity is required.
All dimensions are in millimetres. Choose the diameter, pitch and length from the same row. On mobile, swipe the table sideways to view all columns.
304 Stainless Steel · 67 catalogue items
| Thread diameter | Pitch (mm) | Thread / marking | Available lengths (mm) |
|---|---|---|---|
| M3 | 0.5 | Coarse thread Unmarked |
8 · 10 · 12 · 14 · 16 · 20 · 25 · 30 |
| M4 | 0.7 | Coarse thread Unmarked |
8 · 10 · 12 · 14 · 16 · 20 · 25 · 30 · 35 · 40 |
| M5 | 0.8 | Coarse thread Unmarked |
8 · 10 · 12 · 14 · 16 · 20 · 25 · 30 · 35 · 40 · 45 · 50 |
| M6 | 1 | Coarse thread Unmarked |
8 · 10 · 12 · 14 · 16 · 20 · 25 · 30 · 35 · 40 · 45 · 50 |
| M8 | 1.25 | Coarse thread Unmarked |
10 · 12 · 14 · 16 · 20 · 25 · 30 · 35 · 40 · 45 · 50 |
| M10 | 1.5 | Coarse thread Unmarked |
20 · 25 · 30 · 35 · 40 · 45 · 50 |
| M12 | 1.75 | Coarse thread Unmarked |
20 · 25 · 30 · 35 · 40 · 45 · 50 |
Confirm the Required Wing Pattern
Send a drawing when wing span, head height, base dimensions or threaded length affect your assembly. The catalogue specifies coarse thread; thread coverage and a mechanical strength class are not supplied in these records.
Listed lengths differ by thread diameter. Select an exact combination from the table, or attach your requested dimensions for review.
Fast Dispatch for Stocked Items
Items available in Tongming stock can usually be dispatched in around 3 days. Stock and dispatch timing are confirmed with your quotation.
Send Your Specification
Include DIN 316 reference pattern, 304 stainless steel, thread diameter, pitch, length and quantity. Drawings and files can be attached to your enquiry.
Fastener supply experience since 2005. Nanjing Tongming provides experienced product coordination and competitive quotations for project and repeat purchasing.
Catalogue listing does not indicate live stock. Dimensions and documentation are confirmed for the quoted item.
