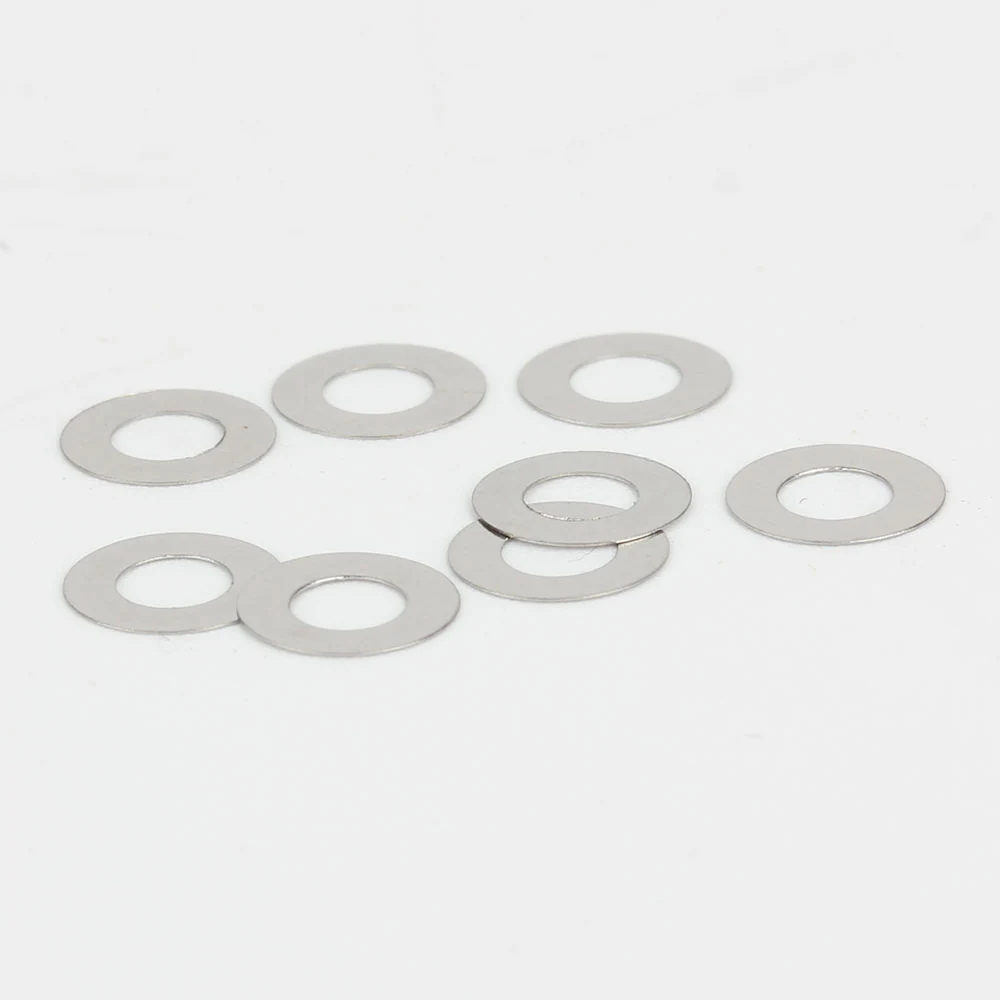

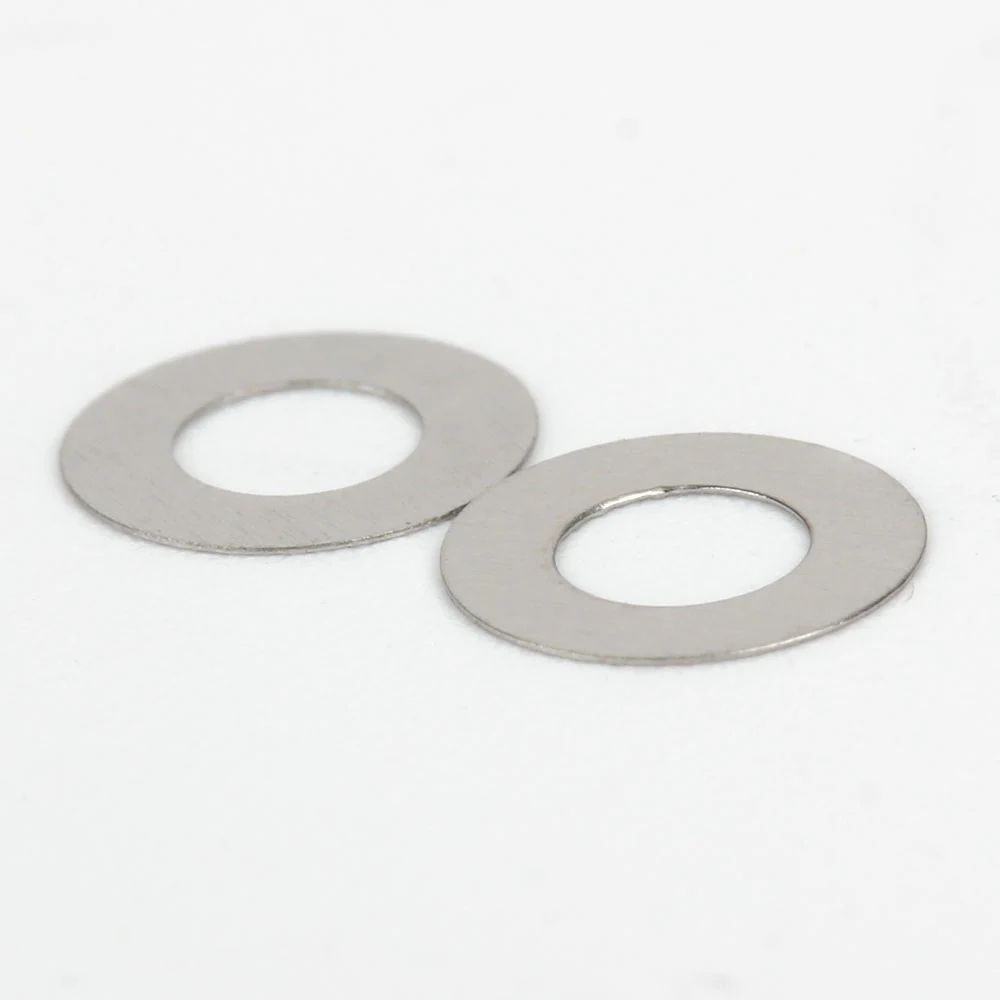

DIN 988 Stainless Steel Shim Rings

DIN 988 Stainless Steel Shim Rings

Choose a shim ring by its complete size combination. These 304 stainless steel catalogue entries are grouped by the first two size values, with each listed thickness kept on its own line.

Product overview

• Material: 304 stainless steel, as listed by the supplier.
• Marking: unmarked for every listed reference.
• 70 individual catalogue references, each retained with its original size.

Use the complete catalogue size, commonly expressed as inside diameter × outside diameter × thickness for shim rings. Confirm dimensional tolerances and the required standard edition with your drawing; the catalogue does not specify a tolerance class.

Catalogue specifications

Expand a group to compare the listed combinations. Availability is confirmed when quoting.

3 × 6 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
3*6*0.1	304	Unmarked	290056
3*6*0.2	304	Unmarked	290057
3*6*0.3	304	Unmarked	290058
3*6*0.5	304	Unmarked	290059

4 × 8 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
4*8*0.5	304	Unmarked	290064
4*8*0.1	304	Unmarked	290060
4*8*0.2	304	Unmarked	290062
4*8*0.3	304	Unmarked	290063

5 × 10 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
5*10*0.1	304	Unmarked	290067
5*10*0.5	304	Unmarked	290072
5*10*0.2	304	Unmarked	290069
5*10*0.3	304	Unmarked	290071

6 × 12 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
6*12*0.2	304	Unmarked	290076
6*12*0.5	304	Unmarked	290080
6*12*0.3	304	Unmarked	290078
6*12*0.1	304	Unmarked	290075

8 × 14 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
8*14*0.1	304	Unmarked	290083
8*14*0.2	304	Unmarked	290085
8*14*0.3	304	Unmarked	290086
8*14*0.5	304	Unmarked	290087

10 × 16 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
10*16*0.1	304	Unmarked	290088
10*16*0.2	304	Unmarked	290089
10*16*0.3	304	Unmarked	290090
10*16*0.5	304	Unmarked	290091

12 × 18 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
12*18*0.2	304	Unmarked	290095
12*18*0.1	304	Unmarked	290092
12*18*0.3	304	Unmarked	290096
12*18*0.5	304	Unmarked	290111

14 × 20 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
14*20*0.1	304	Unmarked	290113
14*20*0.2	304	Unmarked	290115
14*20*0.3	304	Unmarked	290116
14*20*0.5	304	Unmarked	290118

15 × 21 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
15*21*0.1	304	Unmarked	290120
15*21*0.2	304	Unmarked	290122
15*21*0.3	304	Unmarked	290123
15*21*0.5	304	Unmarked	290124

16 × 22 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
16*22*0.1	304	Unmarked	290125
16*22*0.2	304	Unmarked	290126
16*22*0.3	304	Unmarked	290127
16*22*0.5	304	Unmarked	290128

17 × 24 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
17*24*0.1	304	Unmarked	290130
17*24*0.2	304	Unmarked	290131
17*24*0.3	304	Unmarked	290132
17*24*0.5	304	Unmarked	290133

18 × 25 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
18*25*0.1	304	Unmarked	290134
18*25*0.2	304	Unmarked	290135
18*25*0.3	304	Unmarked	290136
18*25*0.5	304	Unmarked	290137

20 × 28 — catalogue size family — 4 catalogue items

Catalogue size	Material	Marking	Item reference
20*28*0.1	304	Unmarked	290138
20*28*0.2	304	Unmarked	290139
20*28*0.3	304	Unmarked	290140
20*28*0.5	304	Unmarked	290141

22 × 30 — catalogue size family — 3 catalogue items

Catalogue size	Material	Marking	Item reference
22*30*0.1	304	Unmarked	290142
22*30*0.2	304	Unmarked	290143
22*30*0.3	304	Unmarked	290144

25 × 35 — catalogue size family — 3 catalogue items

Catalogue size	Material	Marking	Item reference
25*35*0.1	304	Unmarked	290145
25*35*0.2	304	Unmarked	290147
25*35*0.3	304	Unmarked	290148

28 × 40 — catalogue size family — 3 catalogue items

Catalogue size	Material	Marking	Item reference
28*40*0.1	304	Unmarked	290149
28*40*0.2	304	Unmarked	290150
28*40*0.3	304	Unmarked	290151

30 × 42 — catalogue size family — 3 catalogue items

Catalogue size	Material	Marking	Item reference
30*42*0.1	304	Unmarked	290152
30*42*0.2	304	Unmarked	290153
30*42*0.3	304	Unmarked	290154

35 × 45 — catalogue size family — 3 catalogue items

Catalogue size	Material	Marking	Item reference
35*45*0.1	304	Unmarked	290155
35*45*0.2	304	Unmarked	290156
35*45*0.3	304	Unmarked	290157

40 × 50 — catalogue size family — 3 catalogue items

Catalogue size	Material	Marking	Item reference
40*50*0.1	304	Unmarked	290158
40*50*0.2	304	Unmarked	290160
40*50*0.3	304	Unmarked	290161

Request a quotation

Send the item reference, quantity, required drawing and delivery country. For items available in Dongming stock, dispatch can usually be arranged in around 3 days, subject to stock and order confirmation.

Request a Quote
