DIN 982 Stainless Steel Nylon Insert Lock Nuts

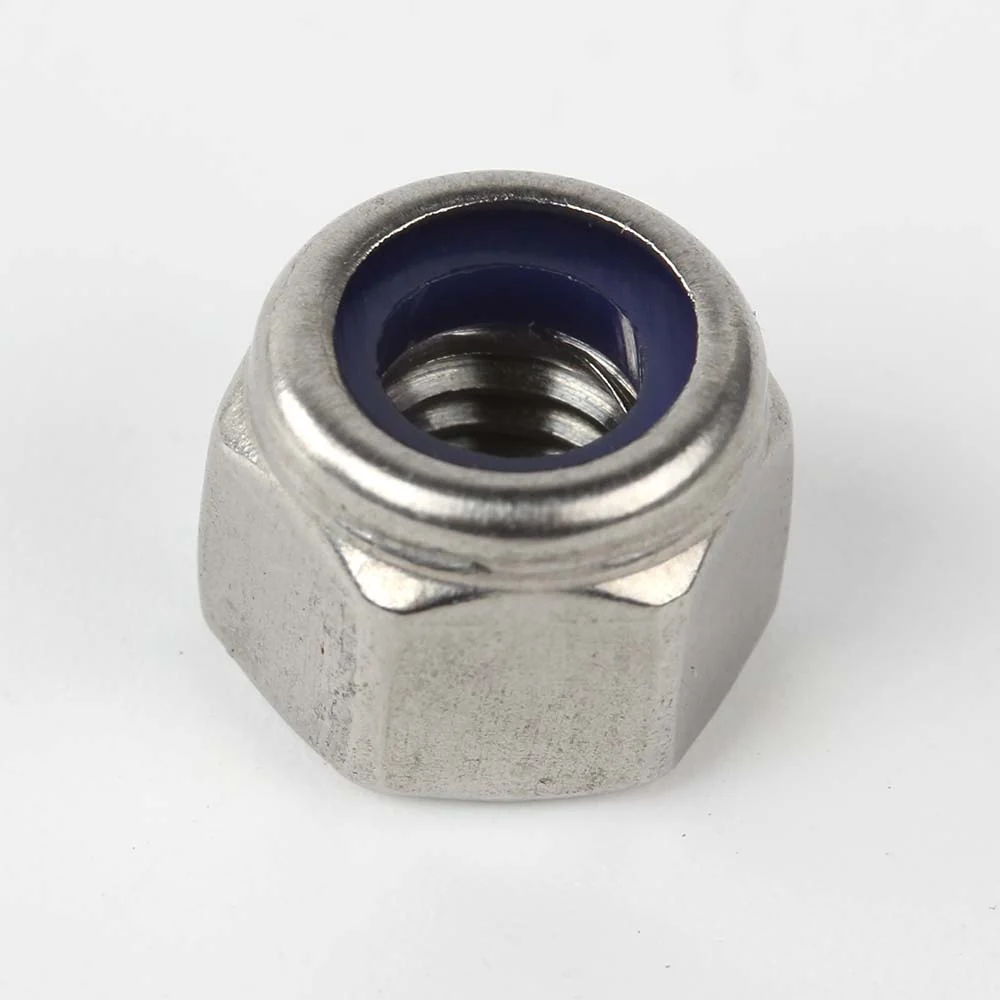

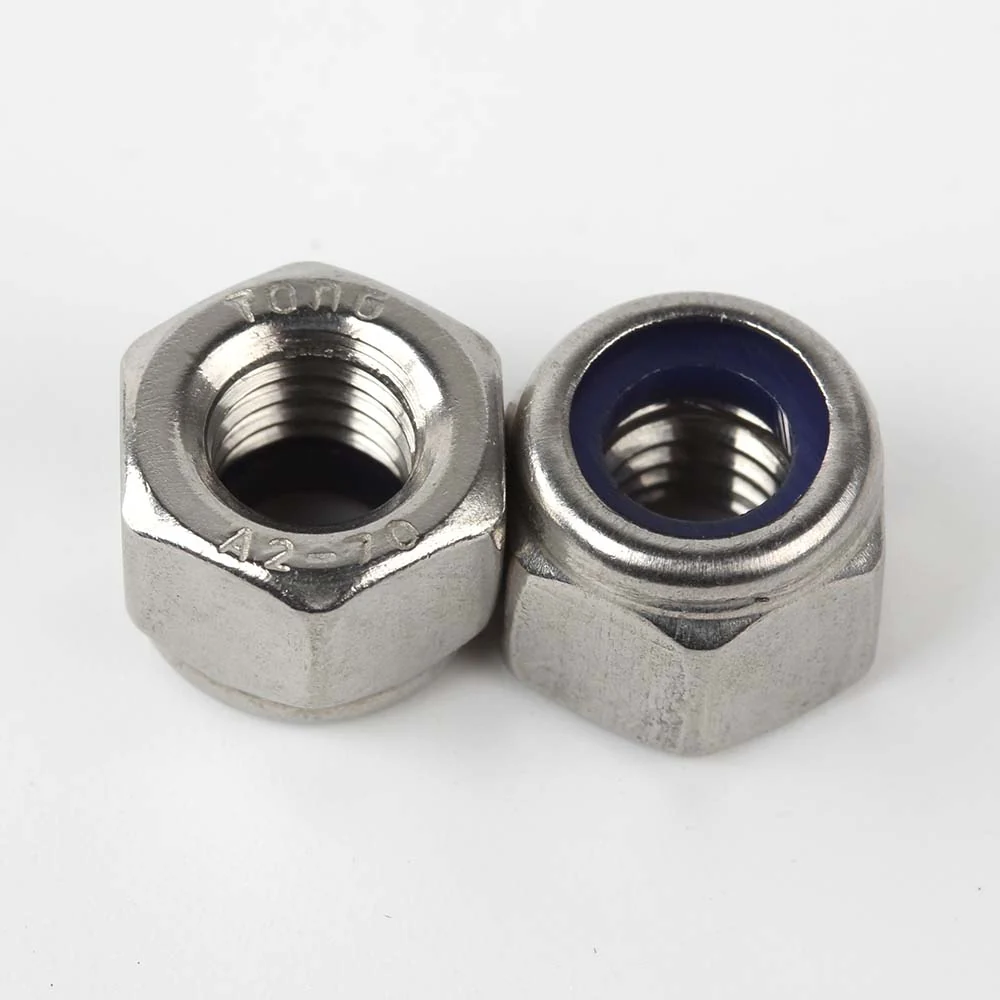

A high-pattern hexagon lock nut with a nylon insert. Confirm the required nut height, thread engagement, operating environment and insert suitability for your assembly. No temperature limit or reuse performance is inferred from the catalogue name.
Product overview
- Form: High-pattern nylon insert lock nut.
- Source reference: DIN982 supplier catalogue series.
- Listed material: 304 / 316 stainless steel.
- Thread sizes: M4, M5, M6, M8, M10, M12, M16, M20.
Confirm the required standard edition and exact dimensions with your enquiry. Catalogue references do not by themselves certify product conformity. Source markings are retained below and are not converted into an unverified property class.
Catalogue specifications
Open a material group to compare thread size, pitch and supplier item reference. Separate item references are retained where a size occurs with different markings.
304 Stainless Steel — 18 catalogue items
| Thread | Pitch (mm) | Insert (source label) | Source marking | Thread / finish | Item reference |
|---|---|---|---|---|---|
| M4 | 0.7 | Colour not specified | Unmarked | Coarse thread | 230717 |

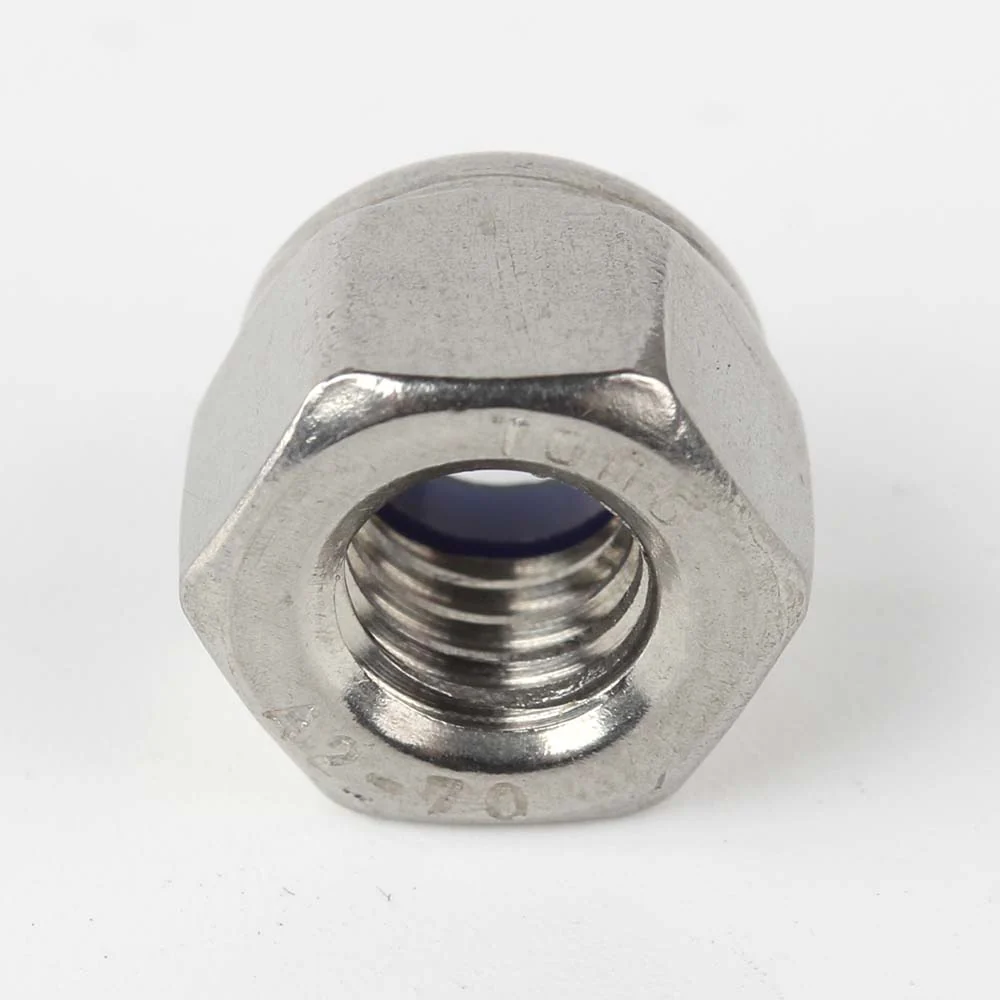

| M5 | 0.8 | Blue nylon insert | A2-70 TonG | Coarse thread | 159227 |
| M6 | 1 | Colour not specified | Unmarked | Coarse thread | 133076 |
| M6 | 1 | Blue nylon insert | A2-70 TonG | Coarse thread | 136014 |
| M6 | 1 | Blue nylon insert | A2-70 TonG | Coarse thread; Wax treated | 175067 |
| M8 | 1.25 | Colour not specified | Unmarked | Coarse thread | 133077 |
| M8 | 1.25 | Blue nylon insert | A2-70 TonG | Coarse thread | 136081 |
| M8 | 1.25 | Blue nylon insert | A2-70 TonG | Coarse thread; Wax treated | 175068 |
| M10 | 1.5 | Colour not specified | Unmarked | Coarse thread | 127678 |
| M10 | 1.5 | Blue nylon insert | A2-70 TonG | Coarse thread | 136082 |
| M10 | 1.5 | Blue nylon insert | A2-70 TonG | Coarse thread; Wax treated | 175069 |
| M12 | 1.75 | Colour not specified | Unmarked | Coarse thread | 133079 |
| M12 | 1.75 | Blue nylon insert | A2-70 TonG | Coarse thread | 136083 |
| M12 | 1.75 | Blue nylon insert | A2-70 TonG | Coarse thread; Wax treated | 175070 |
| M16 | 2.0 | Colour not specified | Unmarked | Coarse thread | 135040 |
| M16 | 2.0 | Blue nylon insert | A2-70 TonG | Coarse thread | 210387 |
| M20 | 2.5 | Colour not specified | Unmarked | Coarse thread | 135041 |
| M20 | 2.5 | Blue nylon insert | A2-70 TonG | Coarse thread | 212805 |
316 Stainless Steel — 18 catalogue items
| Thread | Pitch (mm) | Insert (source label) | Source marking | Thread / finish | Item reference |
|---|---|---|---|---|---|
| M5 | 0.8 | Blue nylon insert | A4-80 TonG | Coarse thread | 159779 |
| M5 | 0.8 | White nylon insert | A4-80 TonG | Coarse thread | 198304 |
| M6 | 1 | Blue nylon insert | A4-80 TonG | Coarse thread | 136084 |
| M6 | 1 | Blue nylon insert | A4-80 TonG | Coarse thread; Wax treated | 175063 |
| M8 | 1.25 | Blue nylon insert | A4-80 TonG | Coarse thread | 136101 |
| M8 | 1.25 | Blue nylon insert | A4-80 TonG | Coarse thread; Wax treated | 175062 |
| M10 | 1.5 | Colour not specified | Unmarked | Coarse thread | 127676 |
| M10 | 1.5 | Blue nylon insert | A4-80 TonG | Coarse thread | 136103 |
| M10 | 1.5 | Blue nylon insert | A4-70 TonG | Coarse thread | 264121 |
| M10 | 1.5 | Blue nylon insert | A4-80 TonG | Coarse thread; Wax treated | 175064 |
| M12 | 1.75 | Blue nylon insert | A4-80 TonG | Coarse thread | 136104 |
| M12 | 1.75 | White nylon insert | A4-80 TonG | Coarse thread | 198315 |
| M12 | 1.75 | Blue nylon insert | A4-80 TonG | Coarse thread; Wax treated | 175065 |
| M16 | 2 | Colour not specified | Coarse thread | 126844 | |
| M16 | 2.0 | Colour not specified | A4-80 TonG | Coarse thread | 138702 |
| M16 | 2.0 | Colour not specified | A4-80 TonG | Coarse thread; Wax treated | 269980 |
| M20 | 2.5 | Colour not specified | Unmarked | Coarse thread | 135036 |
| M20 | 2.5 | Blue nylon insert | A4-80 TonG | Coarse thread | 213263 |
Request a quotation
Send the item reference, material, size and quantity. Include a drawing where nut height, seating face or other dimensional requirements are important. Items available in Tongming stock can usually be dispatched in around 3 days; stock, documentation and dispatch timing are confirmed with the quotation.
