DIN 6912 Stainless Steel Socket Head Screws with Pilot Recess

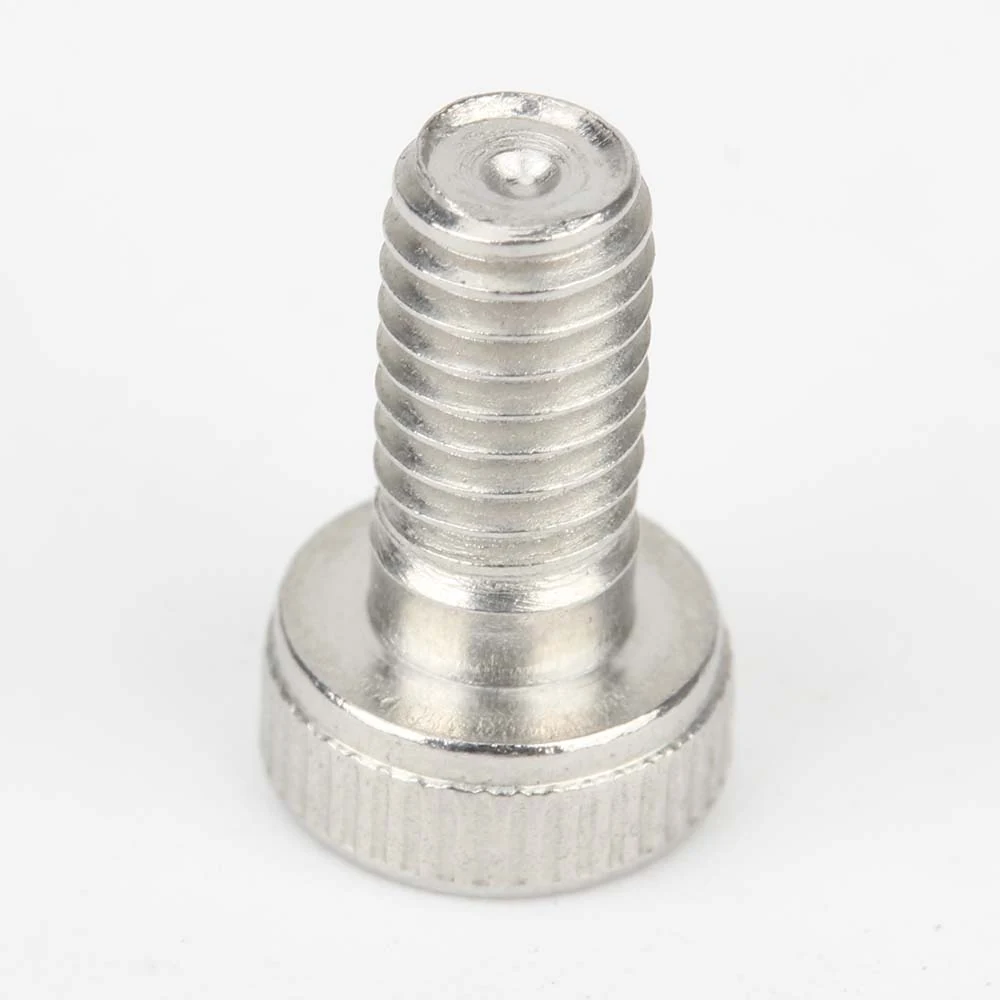

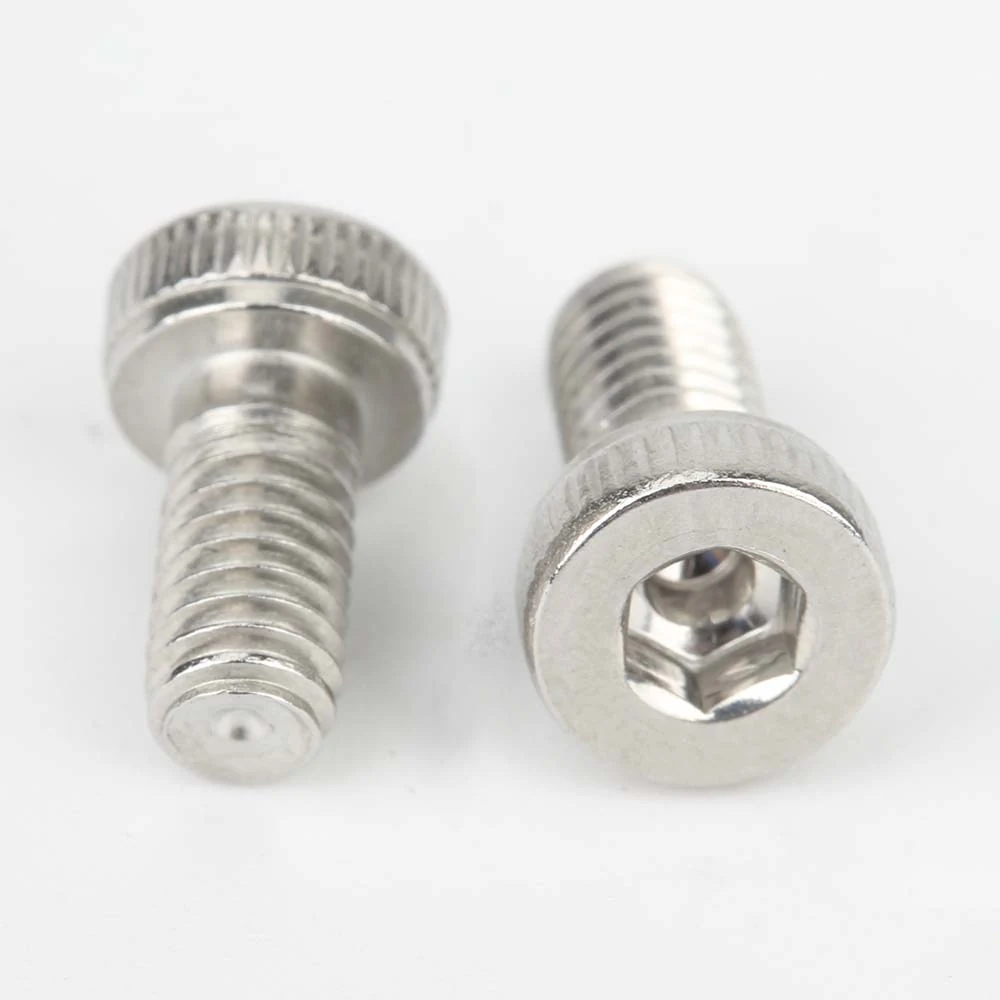

Socket head screws with the pilot-recess form identified in the supplier catalogue. The supplier catalogue references below describe the unknurled-head version. A knurled-head option is also available in the same listed nominal sizes; specify the head finish in your enquiry. The photographs show the knurled-head option. Confirm the selected version, pilot recess and head dimensions against your drawing.
Product overview
- Listed material: 304 stainless steel.
- Catalogue items: 8.
- Drive: hexagon socket, as identified by the supplier.
- Confirm the standard edition, complete dimensions and required documentation.
The M6 × 25 row is labelled full thread, while other rows are labelled partial thread. These source labels are retained per item and not normalised into a single thread form. Confirm thread engagement against the drawing.
Catalogue specifications
Use the individual supplier reference when requesting a quotation. Markings are retained as source information and do not independently certify compliance or current stock. Length values are retained from the source size field; confirm the drawing units before ordering.
| Thread | Pitch (mm) | Length (source value) | Source marking | Thread / finish | Item reference |
|---|---|---|---|---|---|
| M6 | 1.0 | 12 | A2-70 TonG | Partial thread; Bright cleaned (source label) | 360427 |
| M6 | 1.0 | 16 | A2-70 TonG | Partial thread; Bright cleaned (source label) | 360428 |
| M6 | 1.0 | 20 | A2-70 TonG | Partial thread; Bright cleaned (source label) | 360429 |
| M6 | 1.0 | 25 | A2-70 TonG | Full thread; Bright cleaned (source label) | 360430 |
| M8 | 1.25 | 16 | A2-70 TonG | Partial thread; Bright cleaned (source label) | 360432 |
| M8 | 1.25 | 20 | A2-70 TonG | Partial thread; Bright cleaned (source label) | 360433 |
| M8 | 1.25 | 25 | A2-70 TonG | Partial thread; Bright cleaned (source label) | 360434 |
| M8 | 1.25 | 30 | A2-70 TonG | Partial thread; Bright cleaned (source label) | 360435 |
Request a quotation
Send the item reference, drawing, quantity, material and destination. Items available in Tongming stock can usually be dispatched in around 3 days; availability and dispatch timing are confirmed with the quotation.
