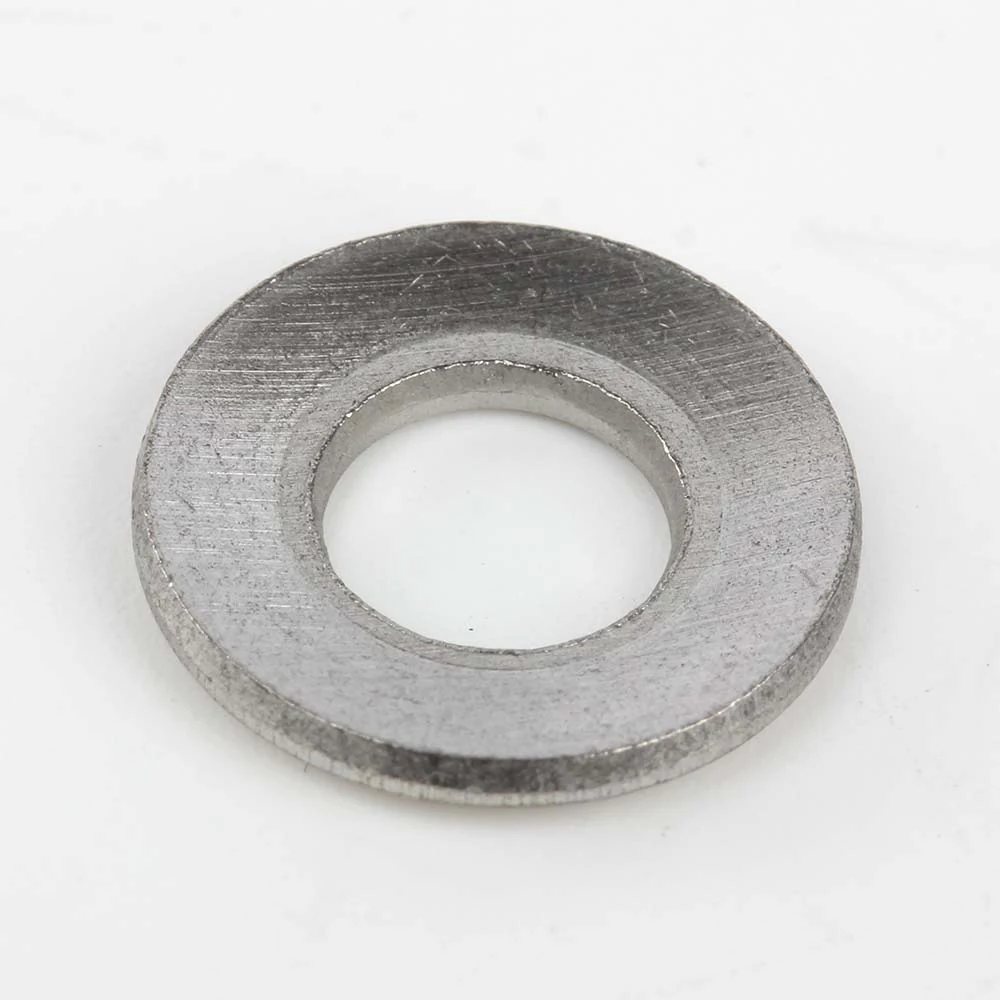

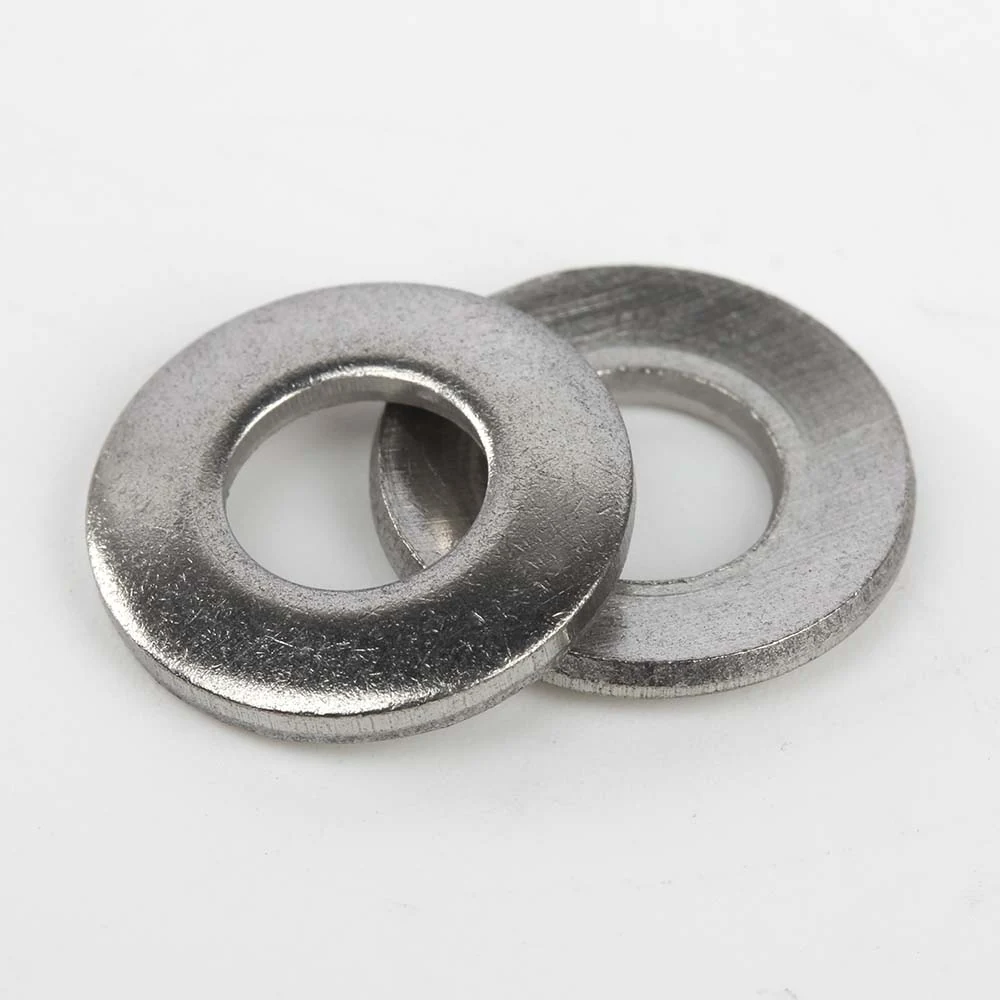

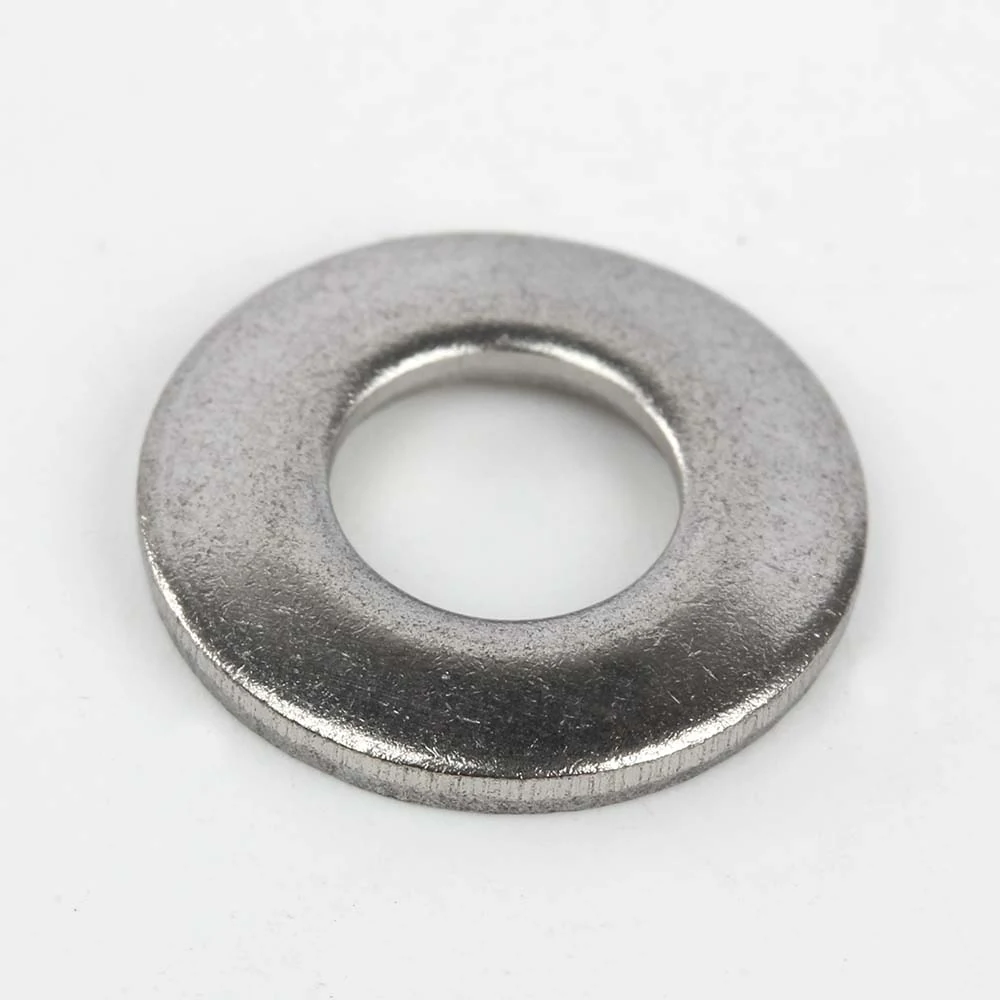

DIN 6796 Stainless Steel Conical Spring Washers
Compare 18 supplier references for DIN 6796 conical spring washers in 304 and 316 stainless steel. Select the nominal fastener size and confirm the required form for your quotation.
Product overview
- Listed material: 304 and 316 stainless steel.
- Form: conical spring.
- Source marking: unmarked; no hardness or property class is inferred.
- Supplier standard label: DIN 6796.
Nominal M sizes refer to the associated fastener size, not measured washer bore diameters. Confirm bore, outside diameter, material thickness, free height, installed height, tolerances and the required standard edition against your drawing. The catalogue does not provide load-deflection or fatigue data; no performance values are inferred. Surface treatment is not stated.
Keep this conical spring washer series separate from general disc springs, serrated conical washers and flat washers. Confirm the selected product geometry and installation requirements.
Catalogue specifications
Expand a material group to view nominal sizes and item references. Listed entries do not confirm current stock.
304 stainless — 9 catalogue items
| Nominal fastener size (source) | Source marking | Item reference |
|---|---|---|
| M4 | 无印记 | 187057 |
| M5 | 无印记 | 165615 |
| M6 | 无印记 | 152593 |
| M8 | 无印记 | 152594 |
| M10 | 无印记 | 152595 |
| M12 | 无印记 | 165612 |
| M14 | 无印记 | 187058 |
| M16 | 无印记 | 187059 |
| M20 | 无印记 | 187061 |
316 stainless — 9 catalogue items
| Nominal fastener size (source) | Source marking | Item reference |
|---|---|---|
| M4 | 无印记 | 205665 |
| M5 | 无印记 | 205666 |
| M6 | 无印记 | 205667 |
| M8 | 无印记 | 205668 |
| M10 | 无印记 | 205669 |
| M12 | 无印记 | 205670 |
| M14 | 无印记 | 205671 |
| M16 | 无印记 | 205672 |
| M20 | 无印记 | 205673 |
Request a quotation
Send the item reference, quantity, drawing and delivery destination. For items available in Dongming stock, dispatch can usually be arranged in around 3 days, subject to stock and order confirmation.
