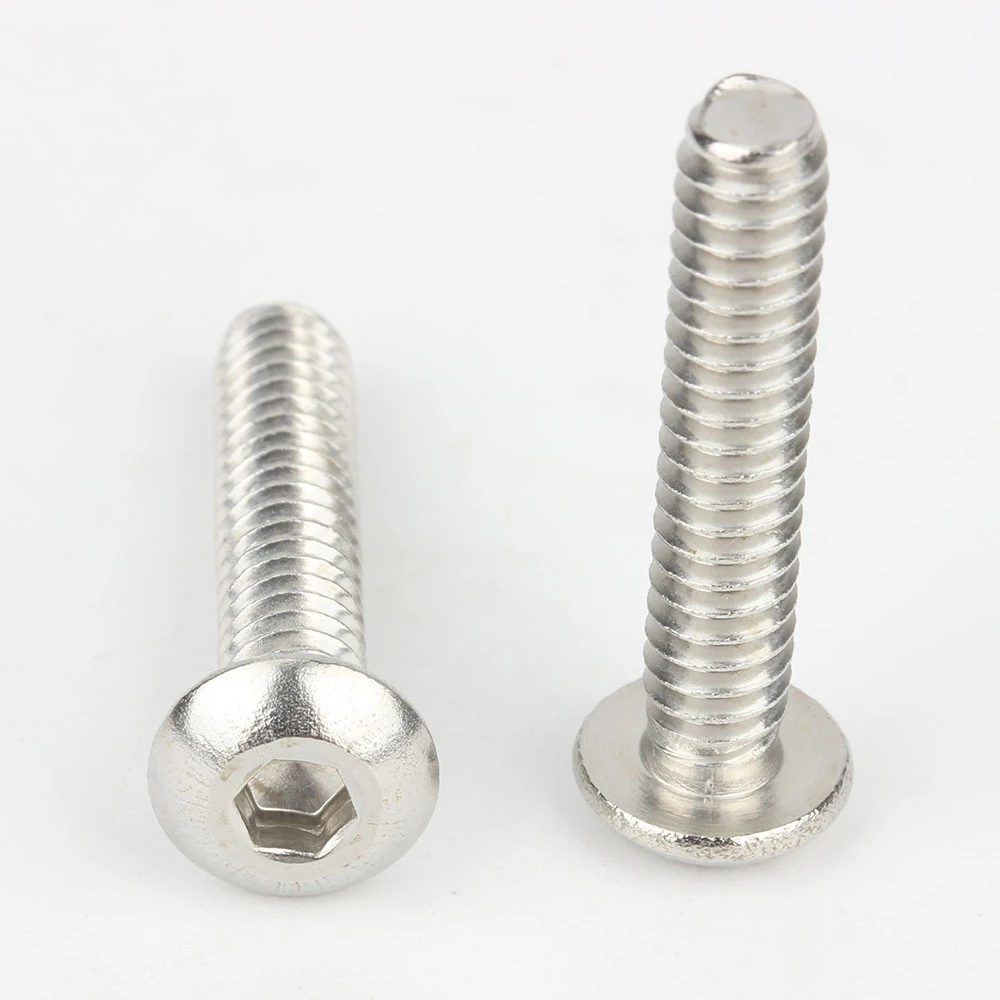

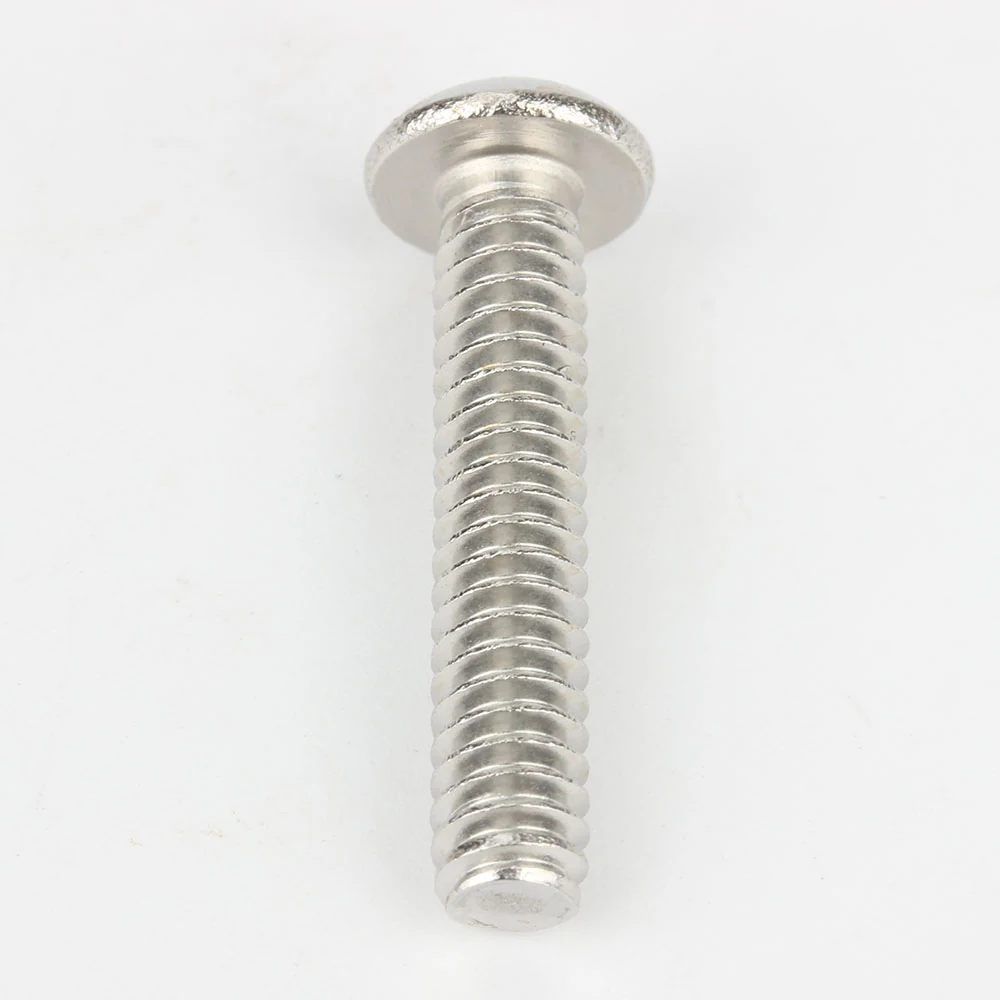

ASME B18.3 Fine-Thread Button Head Socket Screws
304 stainless steel button head socket screws in #10-32 fine thread. Compare 14 full-thread catalogue references with lengths from 1/4 to 2 inches.
Selection notes
The source groups these items as ANSI/ASME B18.3BT; BT is retained in the source record as a supplier catalogue style label. Specify #10-32 and the exact length and item reference. Thread tolerance class is not stated. Confirm head dimensions, thread requirements and the agreed standard edition with your drawing.
Catalogue specifications
Expand a group to compare the original inch-series size, thread coverage, tolerance class, marking and item reference. Sizes retain the supplier diameter, threads-per-inch and length notation. Availability is confirmed when quoting.
304 stainless steel / 10#-32 — 14 catalogue items
| Catalogue size | Thread / version | Marking | Item reference |
|---|---|---|---|
| 10#-32 X 11/16 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381626 |
| 10#-32 X 1/4 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381615 |
| 10#-32 X 5/16 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381621 |
| 10#-32 X 3/8 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381618 |
| 10#-32 X 1/2 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381614 |
| 10#-32 X 5/8 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381620 |
| 10#-32 X 7/8 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381623 |
| 10#-32 X 1" | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381613 |
| 10#-32 X 1-1/8 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381624 |
| 10#-32 X 1-1/4 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381619 |
| 10#-32 X 1-3/8 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381625 |
| 10#-32 X 1-1/2 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381617 |
| 10#-32 X 1-3/4 | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381622 |
| 10#-32 X 2" | Full thread; bright cleaned finish; thread class not stated; fine thread | Unmarked | 381616 |
Request a quotation
Send the item reference, quantity, delivery country and any drawing or inspection requirements. Items available in Dongming stock can usually be dispatched in around 3 days, subject to stock and order confirmation.
